Ponte Giulio Prestigio Plus 36" x 36" Corner Grab Bar - G18UBS41 (331 lb Capacity, ADA Compliant)

Ponte Giulio Prestigio Plus 36" x 36" Corner Grab Bar - G18UBS41 (331 lb Capacity, ADA Compliant)

Price: $278.40
List Price:
Price: $278.40
10% off | Coupon Code: AIDE | Ends:
View Cart

The Ponte Giulio Prestigio Plus 36" x 36" Corner Grab Bar (Model SKU: G18UBS41) is a commercial-grade, 90-degree angular wall-mounted support rail engineered specifically for universal design developments, healthcare facilities, luxury shower enclosures, and ADA-compliant installations. Featuring a 331-pound vertical static load capacity, this corner rail combines a 1.25-inch outer diameter AISI 304 stainless steel body with a 3-point architectural flangeless peg-mounting system locked via internal set keys. The 36.25" x 36.25" center-to-center corner footprint provides continuous gripping support along intersecting walls without bulky mounting escutcheons.

Technical Specifications

System Attribute Specification Parameter Standard & Material Compliance
Model SKU G18UBS41 Ponte Giulio Tracked Product SKU

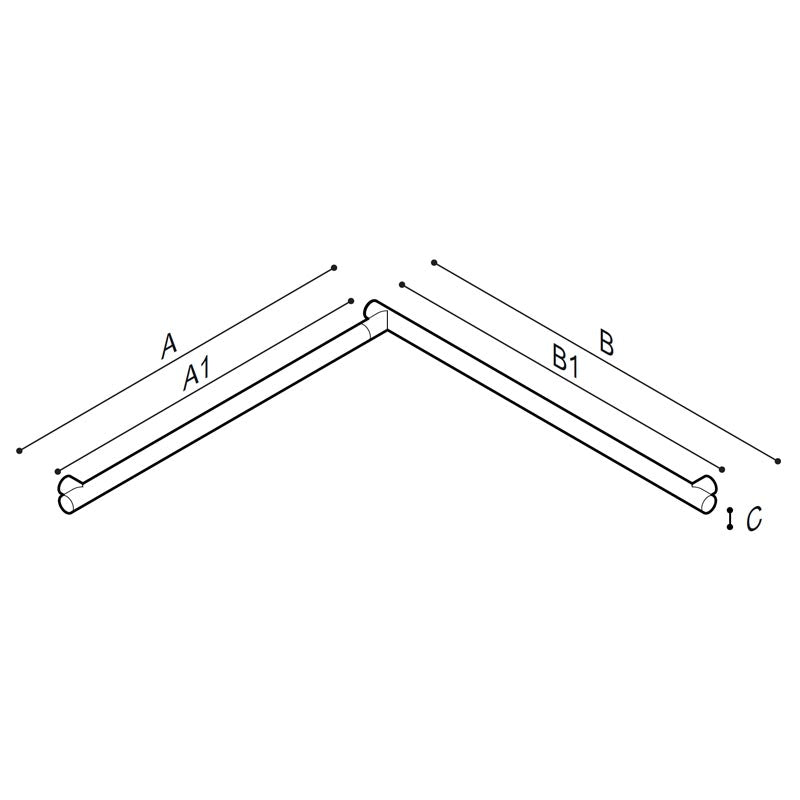

Inter-Axis Mounting Spacing (A1 x B1) 36.25" x 36.25" Center-to-Center (36 1/4" x 36 1/4") Primary Anchorage Spacing Grid
Overall Envelope Footprint (A x B x C) 38.31" x 38.31" Overall Length x 1.25" Rail Diameter Rough-In Envelope (38-5/16" x 38-5/16" x 1-1/4")
Rail Outer Diameter 1.25 Inches (32 mm) ADA Standard Ergonomic Grip Clearance
Mounting System 3 Architectural Cylindrical Peg Mounts Flangeless Design Locked with Internal Set Keys
Rail Body Metallurgy AISI 304 Stainless Steel Painted, Chromed, or Satin Finish Options
Peg Mount & End Accent Metallurgy Polished Stainless Steel, ABS & Aluminum Chrome Accent Finish (C1) on Mounting Pegs
Wall Anchorage Connections 3 Wall Anchor Points (2 End Pegs + 1 Corner Peg) Tri-Point Anchoring System for Maximum Corner Rigidity
Vertical Static Load Rating 331 lbs (150 kg Vertical Static Capacity) Exceeds ADA 250-lb Structural Requirement
Net Tare Weight 5.91 lbs (2.68 kg) Solid Commercial Unit Construction
Included Hardware Stainless Steel Fasteners Included Supplied for Structural Wood Stud Mounting
Regulatory Standard ADA / ANSI A117.1 Compliant Federal Accessibility Standard Certified

Key Performance & Construction Features

  • 331-Pound Vertical Static Load Rating: Engineered for extreme structural rigidity across intersecting corner walls, providing continuous support for movement transitions.
  • Architectural Flangeless Peg Mounting System: Features three sleek cylindrical peg mounts that eliminate traditional wide mounting flanges, securing the rail ends and corner pivot cleanly with concealed internal set keys.
  • Continuous 36" x 36" Corner Grip Coverage: Measuring 36.25 inches center-to-center along both wall planes (38.31 inches total end-to-end), the L-shaped body provides unbroken gripping surface around shower or bath enclosures.
  • Heavy-Gauge AISI 304 Stainless Steel Construction: Fabricated from 304-grade stainless steel with polished ends and peg mounts, delivering 100% rust-proof performance in continuous wet environments.
  • 1.25" Ergonomic Outer Diameter: Standardized 32 mm outer tubular profile satisfies federal ADA guidelines for tactile grip clearance.
  • Wood Stud Fastening Package Included: Supplied complete with heavy-duty stainless steel mounting fasteners rated for direct installation into structural wood studs or wall blocking.

Regulatory Compliance & Installation Notes

To ensure full ADA and building code compliance:

  • ADA Compliance: When mounted securely into solid wood studs or structural wall blocking at the correct height, this corner grab bar meets federal ADA specifications for accessible support rails.
  • Structural Anchoring Requirement: All three cylindrical peg mounts must be anchored directly into solid wood studs or structural wall blocking capable of supporting the rated 331-pound vertical static load.
