Ponte Giulio HUG 28" Removable Folding Grab Bar - G18JCS08 (331 lb Capacity, ADA Compliant)
Ponte Giulio HUG 28" Removable Folding Grab Bar - G18JCS08 (331 lb Capacity, ADA Compliant)
SKU: G18JCS08
- Regular price
- Price: $600.60
- Regular price
- List Price:
- Sale price
- Price: $600.60
- Unit price
- per
Couldn't load pickup availability
PRODUCT DESCRIPTION

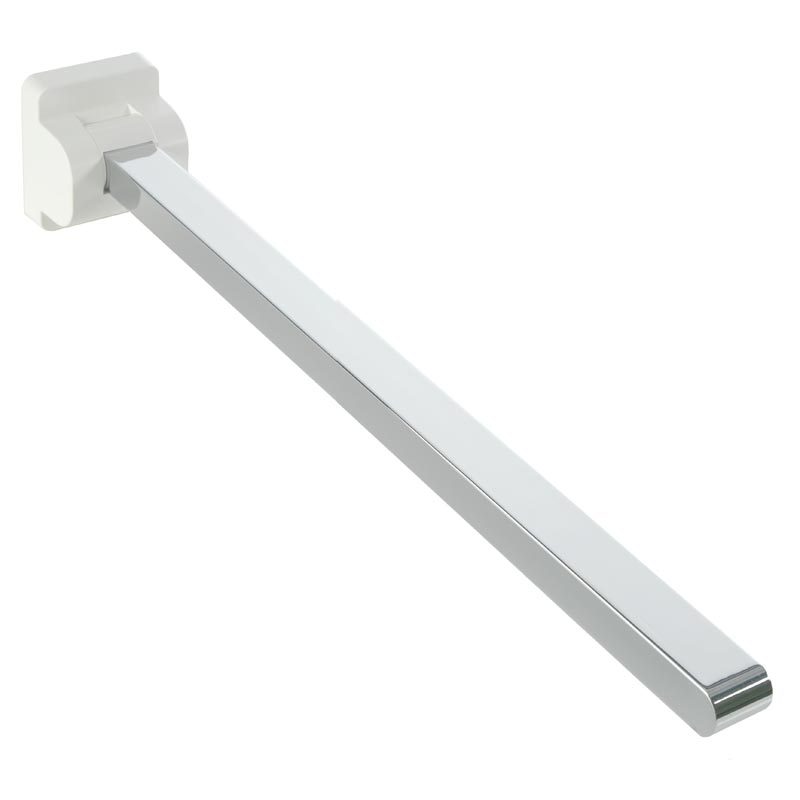

The Ponte Giulio HUG 28" Removable Folding Grab Bar (Model SKU: G18JCS08) is a commercial-grade, single-arm wall-mounted support rail engineered specifically for flexible residential layouts, multi-user facilities, universal design developments, and commercial ADA-compliant restrooms. Featuring a 331-pound vertical static load rating and a 220-pound horizontal static load rating, this 27.56-inch rail combines a stainless steel and aluminum structural chassis with a high-impact ABS wall flange cover. The integrated quick-release mounting plate system allows the rail to be completely detached from the wall when not required, leaving behind a clean wall profile that can be capped with an optional flush cover plate (Model SKU: F18JIS01).
Technical Specifications
| System Attribute | Specification Parameter | Standard & Material Compliance |
|---|---|---|
| Model SKU | G18JCS08 | Ponte Giulio Tracked Product SKU |

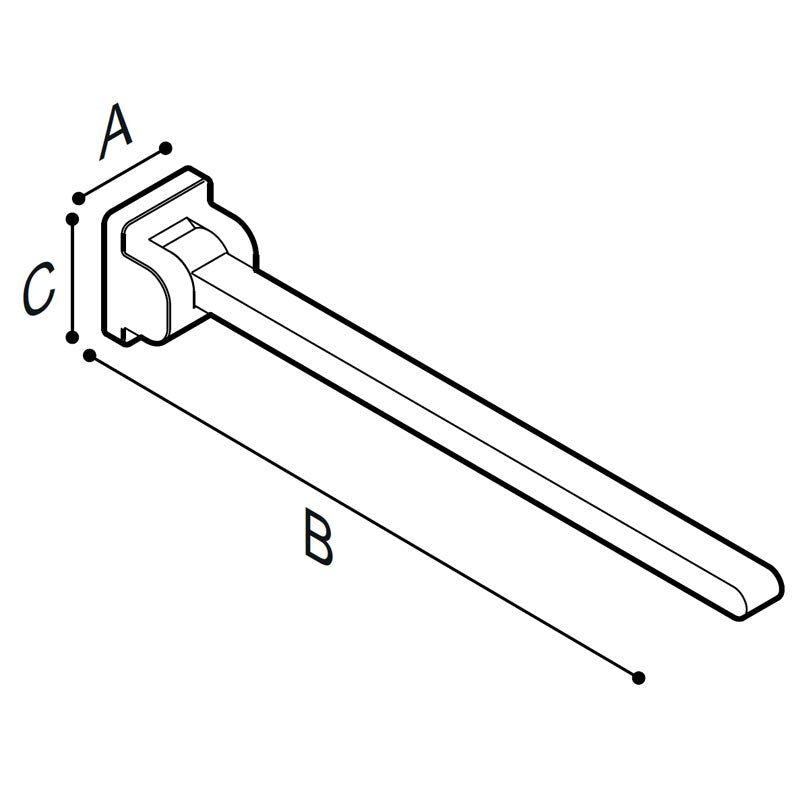

| Overall Envelope Dimensions (W x L x H) | 3.94" Width x 27.56" Length x 4.75" Height | Rough-In Envelope (3-15/16" x 27-9/16" x 4-3/4") |
| Mounting Plate Profile | 4.75" Height x 3.94" Width (5" x 4" Nominal) | Heavy-Duty Wall Anchorage Base |
| Structural Core Material | AISI 304 Stainless Steel & Extruded Aluminum Core | Corrosion-Resistant Structural Alloy Assembly |
| Escutcheon Flange Cover | High-Impact ABS / Aluminum Flange Cover | Concealed Fastener Architectural Escutcheon |
| Removable Wall Plate Accessory | Model SKU: F18JIS01 (Sold Separately) | Flush Cover Plate for Detached Rail Locations |
| Optional Modular Accessories | Paper Holder (F18AGS01) / Shelf Attachment (F18JMS01) | Integrates directly into HUG Rail Chassis |
| Static Load Ratings | 331 lbs Vertical Capacity / 220 lbs Horizontal Capacity | Exceeds ADA 250-lb Structural Requirement |
| Net Tare Weight | 6.61 lbs (3.0 kg) | Solid Commercial Unit Construction |
| Anchoring Requirements | Mount Direct to Structural Wood Studs or Blocking | Fasteners Selected per Specific Substrate Type |
| Regulatory Standard | ADA / ANSI A117.1 Compliant (BIM Models Available) | Federal Accessibility Standard Certified |
Key Performance & Construction Features
- Quick-Release Removable Wall Anchoring System: Engineered with a two-piece interlocking mounting plate assembly that allows the grab bar to be detached from the wall plate for storage or spatial clearance.
- 331-Pound Vertical / 220-Pound Horizontal Rating: Tested to withstand high vertical and lateral static loads, ensuring structural rigidity in high-use restrooms.
- Zero-Gap Hinge Architecture: Designed with smooth pivot joints engineered to eliminate mechanical finger pinch points during folding operations.
- Multi-Finish Architectural Customization: Available in all-chrome, chrome arm with colored flange accents, or solid color finishes to match surrounding hardware.
- Modular HUG Accessory Integration: Compatible with clip-on HUG system accessories, including the Paper Holder (SKU: F18AGS01) and Modular Storage Shelf (SKU: F18JMS01).
- Space-Saving Vertical Fold Profile: Rotates upward flat against the wall tile when stowed, maximizing lateral transfer space inside the restroom area.
Regulatory Compliance & Installation Notes
To ensure full ADA and building code compliance:
- ADA Compliance: When mounted securely into solid wood studs or structural wall blocking at the correct height, this folding grab bar meets federal ADA specifications for accessible support rails.
- Structural Anchoring Requirement: Mounting hardware is not supplied with this fixture. Fasteners must be selected by a qualified installer based on wall backing composition (e.g., solid wood studs or structural blocking) capable of supporting the rated 331-pound vertical static load.
Shipping, Stock Status, and Returns
In accordance with our commitment to consumer transparency and Google Merchant Center compliance:
- Availability: In Stock and ready to ship. Processing lead time is 1–2 business days.
- Shipping Costs: Calculated in real-time during checkout based on delivery destination and total order weight. No hidden handling fees.
- Refund & Return Policy: Covered under our 30-Day Policy. If the product arrives damaged, is lost in transit, or is the incorrect SKU, contact customer support at support@universalaide.com for an immediate exchange or full refund.
