PONTE GIULIO

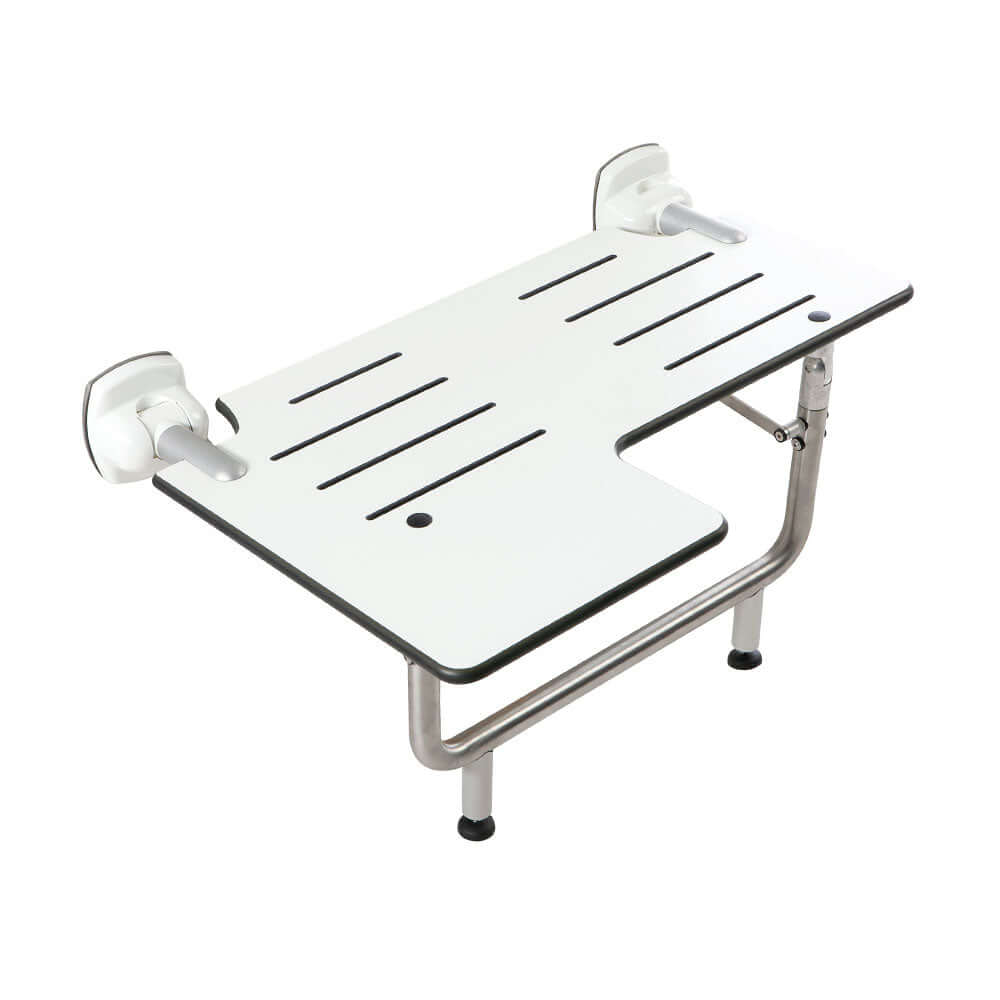

Ponte Giulio 31.5" Reversible L-Shaped Commercial HPL Folding Shower Seat with Legs - G55JDS35 (551 lb Capacity, ADA Compliant)

Ponte Giulio 31.5" Reversible L-Shaped Commercial HPL Folding Shower Seat with Legs - G55JDS35 (551 lb Capacity, ADA Compliant)

SKU: G55JDS35

Price: $963.20
List Price:
Price: $963.20
10% off | Coupon Code: AIDE | Ends:
View Cart

The Ponte Giulio Reversible L-Shaped Commercial HPL Folding Shower Seat with Support Legs (Model SKU: G55JDS35) is a heavy-duty, wall-mounted bather seating solution engineered specifically for transfer shower alcoves, healthcare facilities, commercial ADA restrooms, and accessible residential retrofits. Built with a 16 mm thick High Pressure Laminate (HPL / Phenolic) top surface, this seat features a fully reversible design that allows installation with the deeper transfer section positioned on either the left or right side of the shower enclosure. The structural assembly combines an AISI 304 satin stainless steel frame anchored via two wall flange systems with freestanding height-adjustable floor legs, yielding a 551-pound vertical static load capacity.

Technical Specifications

System Attribute Specification Parameter Standard & Material Compliance
Model SKU G55JDS35 (G55JDS35W8N1) Ponte Giulio Tracked Product SKU

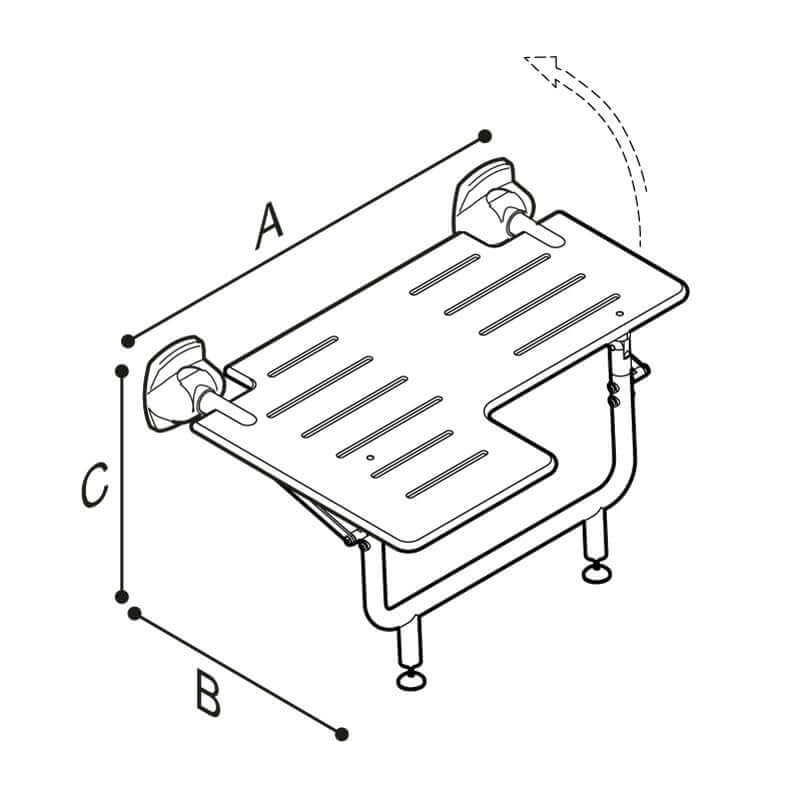

Overall Envelope Dimensions (D x W x H) 22.81" Depth x 31.5" Width x 19.0" Height Rough-In Envelope (31-1/2" x 22-13/16" x 19")
Seating Surface Footprint 31.5" Width x 22.75" Main Depth x 19.0" Height Reversible Left-Hand or Right-Hand L-Footprint
Seat Top Material & Thickness 16 mm High Pressure Laminate (HPL / Phenolic) Non-Porous, Impact-Resistant Matte Top
Seat Top Color Finish White with Speckles (W8) Stain-Resistant Sanitary Surface Pattern
Structural Frame & Wall Flanges AISI 304 Stainless Steel (Satin - N1) Corrosion-Resistant Heavy-Duty Alloy
Flange Escutcheons Polyamide Back-Flanges & Protective Covers Snap-On Fastener Escutcheon Protection
Support Legs Freestanding Height-Adjustable Floor Support Legs Floor-Bearing Static Load Distribution
Vertical Static Load Rating 551 lbs (250 kg Vertical Static Load Capacity) Exceeds ADA 250-lb Structural Requirement
Net Tare Weight 28.66 lbs (13.0 kg) Solid Commercial Unit Construction
Included Hardware Stainless Steel Fasteners Included Supplied for Structural Wood Stud Mounting
Warranty Lifetime Manufacturer Warranty Manufacturer Backed and Certified
Regulatory Standard ADA / ANSI A117.1 Compliant Federal Accessibility Standard Certified

Key Performance & Construction Features

  • 551-Pound Vertical Static Load Rating: Engineered for structural stability using a combination of two wall-mounting points and dual freestanding height-adjustable floor legs.
  • Fully Reversible Modular Design: The 16 mm thick L-shaped HPL seat panel can be mounted with the deeper 22.75-inch transfer section on either the left or right side to align with specific shower entry points and plumbing layouts.
  • 16mm High Pressure Laminate (HPL) Top: The non-porous, warm-touch phenolic surface in White with Speckles (W8) resists scratching, impact, mold, and harsh sanitation chemicals.
  • AISI 304 Stainless Steel Structural Frame: Fabricated from satin-finished 304 stainless steel with polyamide back-flanges and escutcheon covers to prevent internal oxidation and corrosion in continuous wet environments.
  • Height-Adjustable Floor Support Feet: Integrated leg leveling feet ensure precise adjustment to establish a flat seating plane across sloped shower floors.
  • Wood Stud Mounting Package Included: Supplied complete with heavy-duty stainless steel mounting hardware for solid wood stud or structural wall blocking installation.

Regulatory Compliance & Installation Notes

To ensure full ADA and building code compliance:

  • ADA Compliance: When mounted securely into solid wood studs or structural wall blocking at the correct height, this shower seat meets federal ADA specifications for L-shaped transfer shower seating and load capacity.
  • Structural Anchoring Requirement: Wall mounting flanges must be anchored directly into solid wood studs or structural wall blocking capable of supporting the rated 551-pound vertical static load capacity.
