Ponte Giulio 27.5" Antimicrobial Vinyl Coated Folding Grab Bar - G41JCS10 (331 lb Capacity, ADA Compliant)
Ponte Giulio 27.5" Antimicrobial Vinyl Coated Folding Grab Bar - G41JCS10 (331 lb Capacity, ADA Compliant)
SKU: G41JCS10
- Regular price
- Price: $324.00
- Regular price
- List Price:
- Sale price
- Price: $324.00
- Unit price
- per
Couldn't load pickup availability
PRODUCT DESCRIPTION

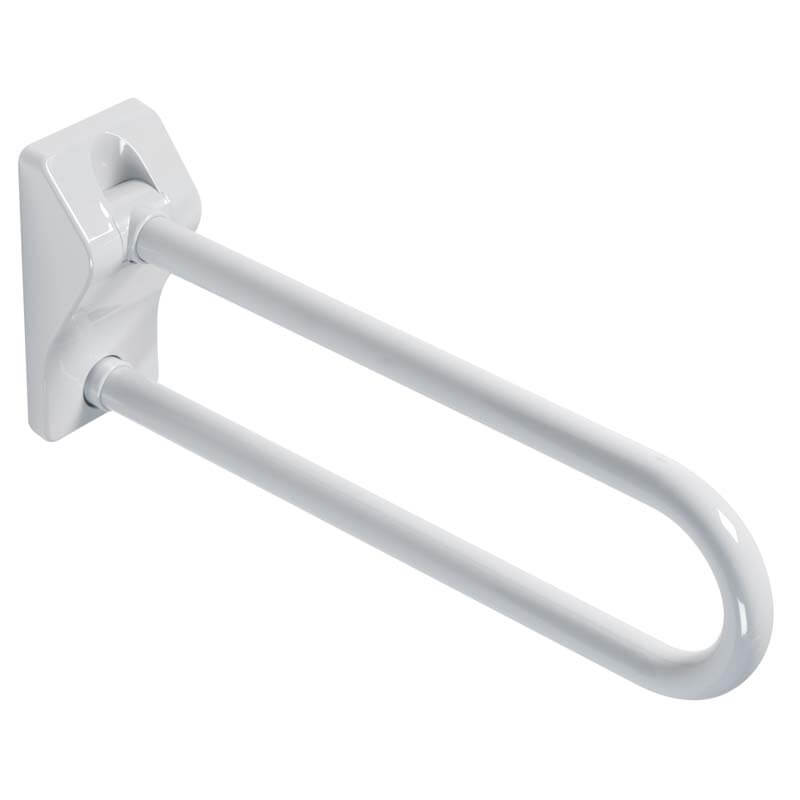

The Ponte Giulio Antimicrobial Vinyl Coated Folding Grab Bar with No-Pinch Flange (Model SKU: G41JCS10) is a commercial-grade, space-saving wall-mounted support rail engineered specifically for universal design developments, healthcare facilities, public restrooms, and ADA-compliant installations. Featuring a 27.56-inch projection length (27-9/16" actual), this rail combines a heavy-gauge structural steel pipe core enclosed within a 3 mm thick warm-touch antimicrobial vinyl coating. The mounting chassis incorporates a specialized zero-gap, no-pinch flange design that adheres to commercial anti-entrapment protocols, while the internal tension hinge maintains vertical stowed positioning when rotated against the wall tile.
Technical Specifications
| System Attribute | Specification Parameter | Standard & Material Compliance |
|---|---|---|
| Model SKU | G41JCS10 | Ponte Giulio Tracked Product SKU |

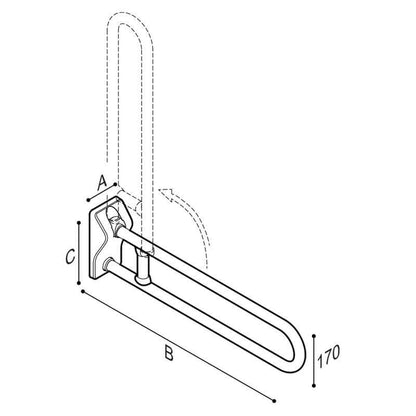

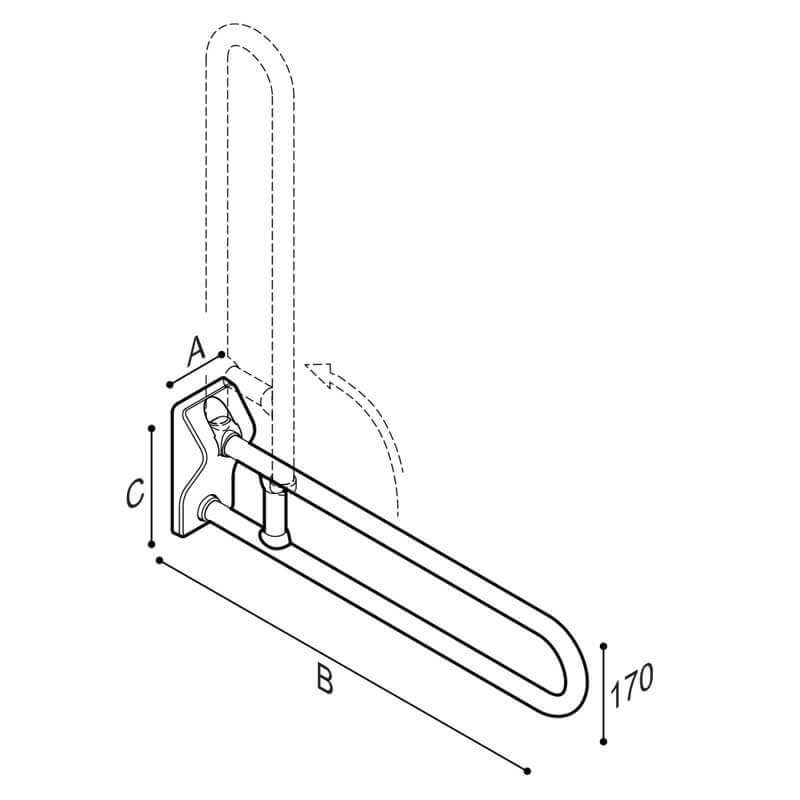

| Overall Envelope Dimensions (W x L x H) | 4.44" Width x 27.56" Length x 9.19" Height | Rough-In Envelope (4-7/16" x 27-9/16" x 9-3/16") |
| Mounting Plate Profile | 9.25" Height x 4.5" Width (9 1/4" x 4 1/2") | Heavy-Duty Structural Wall Anchorage Base |
| Structural Core Material | Heavy-Gauge Zinc-Plated Steel Pipe | Corrosion-Resistant Structural Alloy |
| Outer Finish & Thickness | 3 mm Extruded Warm-Touch Vinyl | Non-Slip, High-Traction Surface Finish |
| Hygiene Technology | BioCote® Silver Ion Antimicrobial Coating | Inhibits Bacterial Growth up to 99.9% |
| Escutcheon Flange Cover | Concealed Polyamide Flange Cover | Protects Fasteners from Direct Water Exposure |
| Hinge Mechanism | Controlled Tension Friction Hinge | No-Pinch Anti-Entrapment Hinge Geometry |
| Vertical Static Load Rating | 331 lbs (150 kg Vertical Static Load Capacity) | Exceeds ADA 250-lb Structural Requirement |
| Net Tare Weight | 7.44 lbs (3.37 kg) | Solid Commercial Construction |
| Anchoring Requirements | Mount Direct to Structural Wood Studs or Blocking | Fasteners Selected per Specific Substrate Type |
| Regulatory Standard | ADA / ANSI A117.1 Compliant | Federal Accessibility Standard Certified |
Key Performance & Construction Features
- 331-Pound Vertical Static Load Rating: Engineered with a reinforced steel core providing high structural rigidity under dynamic weight transfers.
- No-Pinch Hinge Architecture: Designed with specialized anti-entrapment flange geometry that eliminates finger pinch hazards during rotation and maintains narrow inter-bar spacing adhering to commercial safety standards.
- BioCote® Silver Ion Antimicrobial Vinyl Coating: The 3 mm thick vinyl coating permanently incorporates silver ion antimicrobial agents that inhibit bacterial, mold, and fungal growth by up to 99.9%.
- Warm-Touch High-Traction Grip: The non-porous vinyl exterior offers low thermal conductivity and a warm tactile feel while maintaining high surface friction in high-humidity environments.
- Controlled Tension Friction Hinge: Built with an internal friction mechanism that holds the rail securely in the vertical stowed position, preventing unintended downward deployment.
- Concealed Structural Mounting Plate: The 9.25" x 4.5" mounting chassis is concealed beneath a snap-on polyamide escutcheon cover to shield fasteners from water ingress and corrosion.
Regulatory Compliance & Installation Notes
To ensure full ADA and building code compliance:
- ADA Compliance: When mounted securely into solid wood studs or structural wall blocking at the correct height, this folding grab bar meets federal ADA specifications for accessible support rails.
- Structural Anchoring Requirement: Mounting hardware is not supplied with this fixture. Fasteners must be selected by a qualified installer based on wall backing composition (e.g., solid wood studs or structural blocking) capable of supporting the rated 331-pound vertical static load.
