Ponte Giulio 22.5" Single Folding HPL Shower Seat - G25JDS21 (331 lb Capacity, ADA Compliant)
Ponte Giulio 22.5" Single Folding HPL Shower Seat - G25JDS21 (331 lb Capacity, ADA Compliant)
SKU: G25JDS21
- Regular price
- Price: $581.40
- Regular price
- List Price:
- Sale price
- Price: $581.40
- Unit price
- per
Couldn't load pickup availability
PRODUCT DESCRIPTION

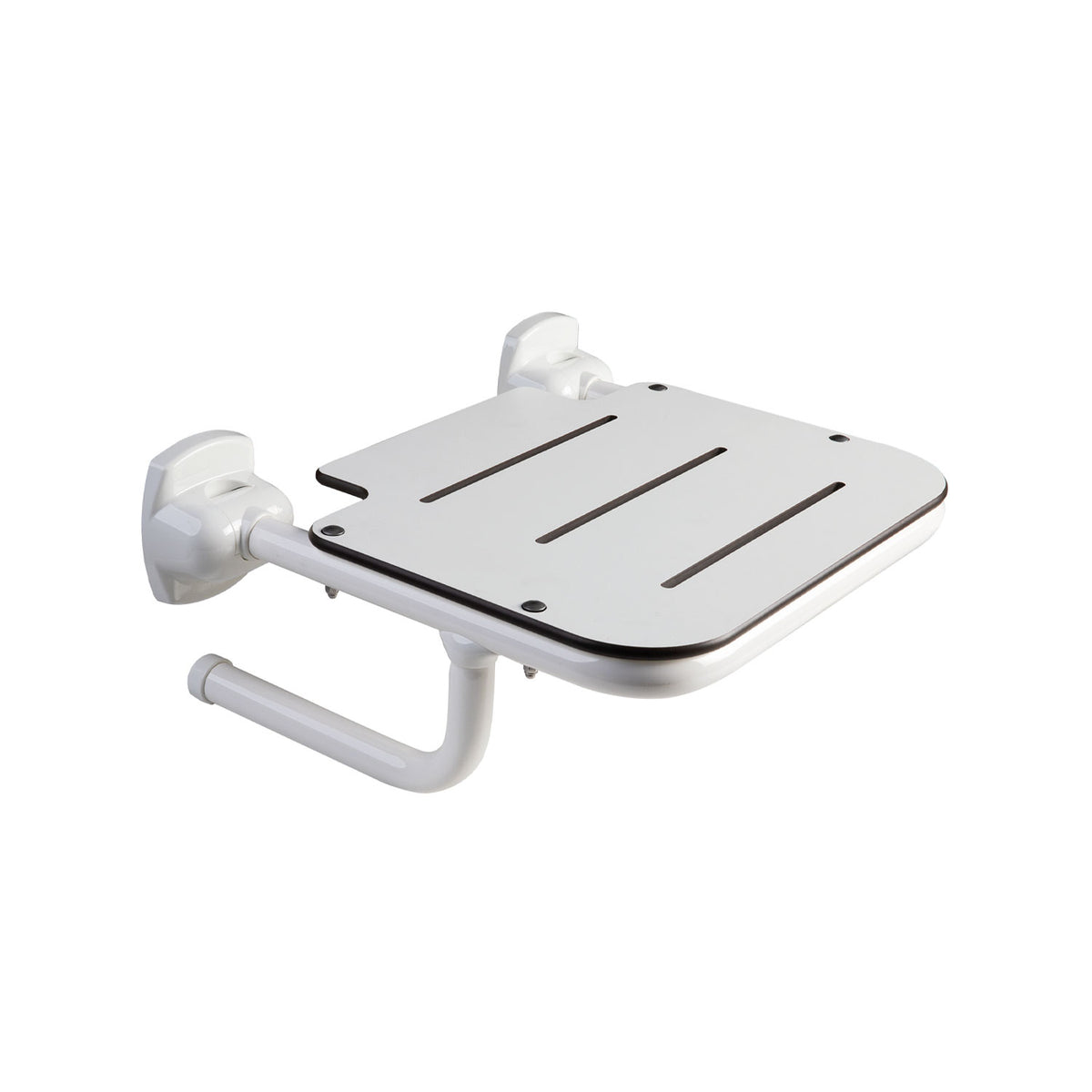

The Ponte Giulio Single Folding Shower Seat with White HPL Top (Model SKU: G25JDS21) is a commercial-grade, wall-mounted bather seating solution engineered specifically for residential retrofits, universal design developments, and commercial ADA-compliant restrooms. Featuring a 331-pound vertical static load capacity, this 22.5-inch wide single folding bench combines a 10 mm thick High Pressure Laminate (HPL / Phenolic) seat surface with an internal zinc-plated steel structural core. The support frame and wall flanges are enclosed in a warm-touch antimicrobial vinyl coating incorporating BioCote® silver ion technology. The mounting flanges are spaced 17 inches center-on-center for direct anchoring into standard wall stud configurations.
Technical Specifications
| System Attribute | Specification Parameter | Standard & Material Compliance |
|---|---|---|
| Model SKU | G25JDS21 | Ponte Giulio Tracked Product SKU |

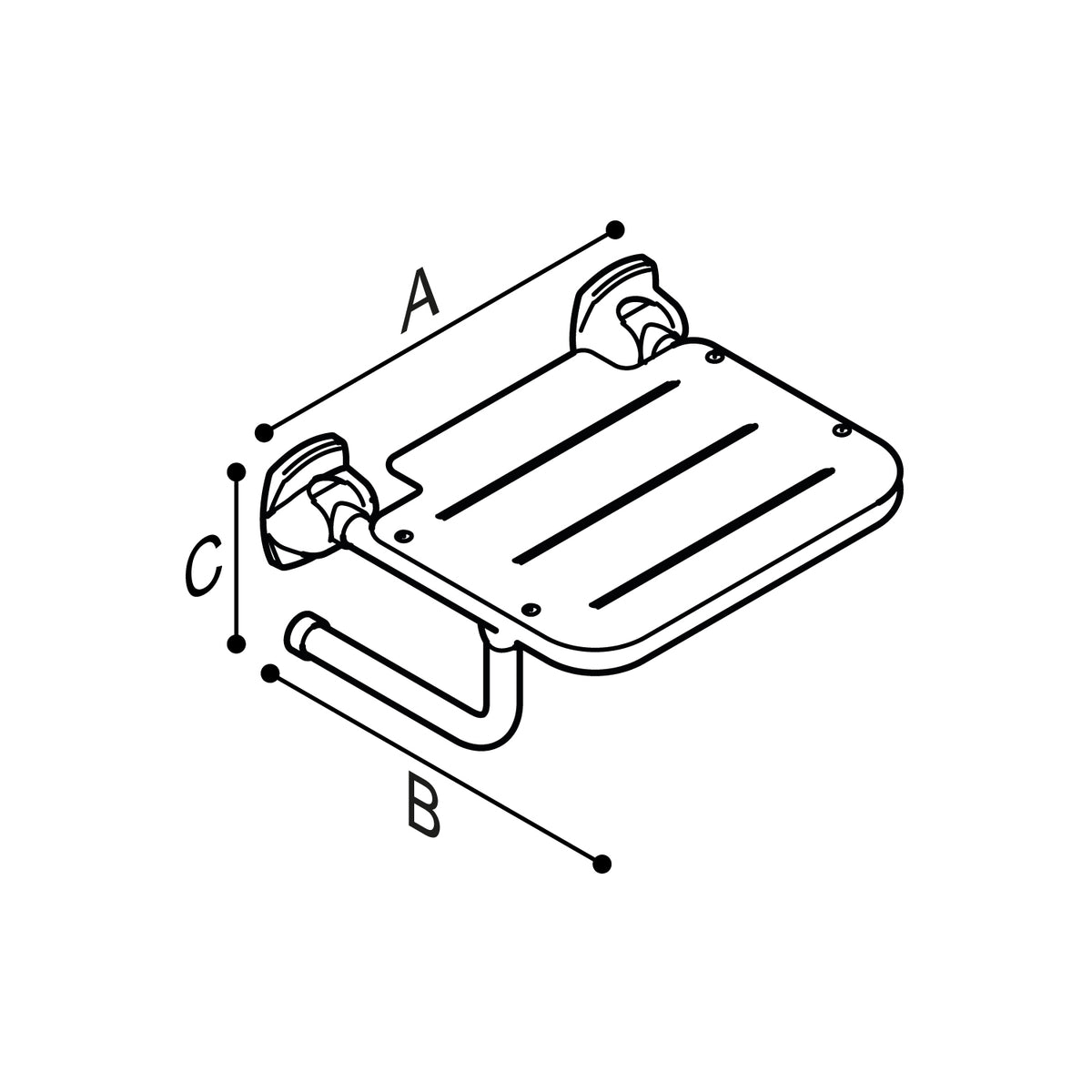

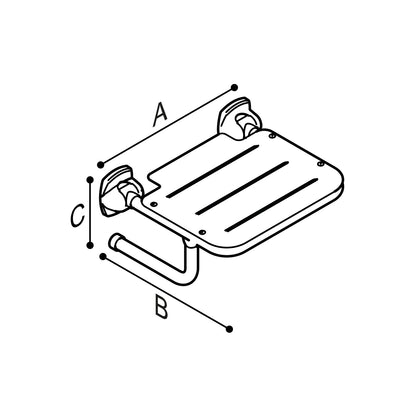

| Overall Envelope Dimensions (D x W x H) | 17.0" Depth x 22.5" Width x 7.19" Height | Rough-In Envelope (22-1/2" x 17" x 7-3/16") |
| Seat Surface Footprint | 22.5" Width x 17.0" Depth x 7.19" Height | Compact Single Seating Area |
| Mounting Flange Spacing | 17.0 Inches (Center-on-Center) | Engineered for Wall Stud Anchorage |
| Seat Top Material & Finish | 10 mm High Pressure Laminate (HPL / Phenolic) | Non-Porous White with Speckles Top (W8) |
| Frame Core & Coating | Zinc-Plated Steel Core + 3mm Antimicrobial Vinyl | Corrosion-Resistant Structural Core Assembly |
| Hygiene Technology | BioCote® Silver Ion Antimicrobial Coating | Inhibits Bacterial Growth up to 99.9% |
| Vertical Static Load Rating | 331 lbs (150 kg Vertical Static Load Capacity) | Exceeds ADA 250-lb Structural Requirement |
| Net Tare Weight | 14.99 lbs (6.8 kg) | Solid Commercial Unit Construction |
| Included Hardware | Stainless Steel Fasteners Included | Supplied for Structural Wood Stud Mounting |
| Warranty | Lifetime Manufacturer Warranty | Manufacturer Backed and Certified |
| Regulatory Standard | ADA / ANSI A117.1 Compliant | Federal Accessibility Standard Certified |
Key Performance & Construction Features
- 331-Pound Vertical Static Load Rating: Engineered for structural rigidity, exceeding standard ADA load capacity requirements for safe bather seating.
- BioCote® Silver Ion Antimicrobial Protection: Integrated directly into the 3 mm exterior vinyl frame coating, BioCote® technology permanently inhibits the growth of bacteria, molds, and fungi by up to 99.9%.
- 10mm High-Pressure Laminate (HPL) Top: The non-porous, warm-touch phenolic surface in White with Speckles (W8) resists scratching, impact, mold, and harsh sanitation chemicals.
- 17" Center-on-Center Mounting Flanges: Specifically engineered with a 17-inch flange spacing to allow direct structural anchoring into existing wall studs.
- Zinc-Plated Steel Structural Core: Internal steel frame is zinc-plated to provide high oxidation and corrosion resistance in continuous high-humidity environments.
- Wood Stud Mounting Package Included: Supplied complete with heavy-duty structural mounting hardware for direct structural wood stud or wall blocking installation.
Regulatory Compliance & Installation Notes
To ensure full ADA and building code compliance:
- ADA Compliance: When mounted securely into solid wood studs or structural wall blocking at the correct height, this shower seat meets federal ADA specifications for shower seating and load capacity.
- Structural Anchoring Requirement: Wall mounting flanges must be anchored directly into solid wood studs or structural wall blocking capable of supporting the rated 331-pound vertical static load.
Shipping, Stock Status, and Returns
In accordance with our commitment to consumer transparency and Google Merchant Center compliance:
- Availability: In Stock and ready to ship. Processing lead time is 1–2 business days.
- Shipping Costs: Calculated in real-time during checkout based on delivery destination and total order weight. No hidden handling fees.
- Refund & Return Policy: Covered under our 30-Day Policy. If the product arrives damaged, is lost in transit, or is the incorrect SKU, contact customer support at support@universalaide.com for an immediate exchange or full refund.
