Ponte Giulio 16" x 16" Folding Shower Seat with Folding Legs - G27JDS44 (551 lb Capacity, ADA Compliant)
Ponte Giulio 16" x 16" Folding Shower Seat with Folding Legs - G27JDS44 (551 lb Capacity, ADA Compliant)
SKU: G27JDS44
- Regular price
- Price: $594.20
- Regular price
- List Price:
- Sale price
- Price: $594.20
- Unit price
- per
10% off | Coupon Code: AIDE | Ends:
Couldn't load pickup availability
PRODUCT DESCRIPTION

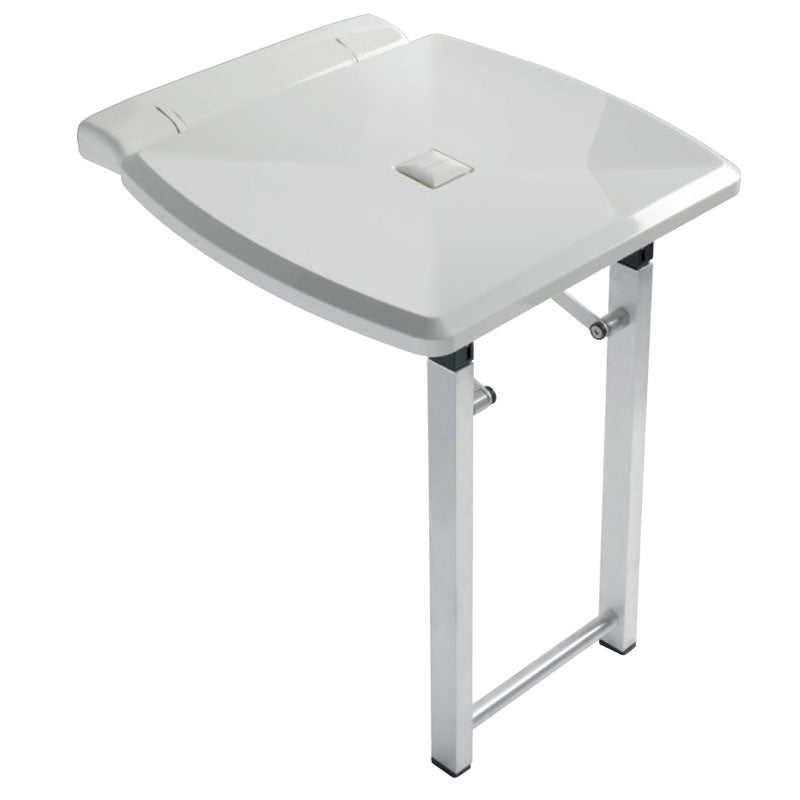

The Ponte Giulio Folding Shower Seat with Folding Support Legs (Model SKU: G27JDS44) is a commercial-grade, wall-mounted bather seating solution engineered specifically for space-constrained residential retrofits, universal design developments, and commercial ADA-compliant restrooms. Featuring a 551-pound vertical static load rating, this compact 16" x 16" seat combines a high-impact ABS synthetic top with an internal steel core, matte aluminum structural frame, and dual folding floor legs. The seat surface incorporates a precision-molded drain hole to ensure rapid fluid displacement and prevent standing water accumulation during use.
Technical Specifications
| System Attribute | Specification Parameter | Standard & Material Compliance |
|---|---|---|
| Model SKU | G27JDS44 | Ponte Giulio Tracked Product SKU |

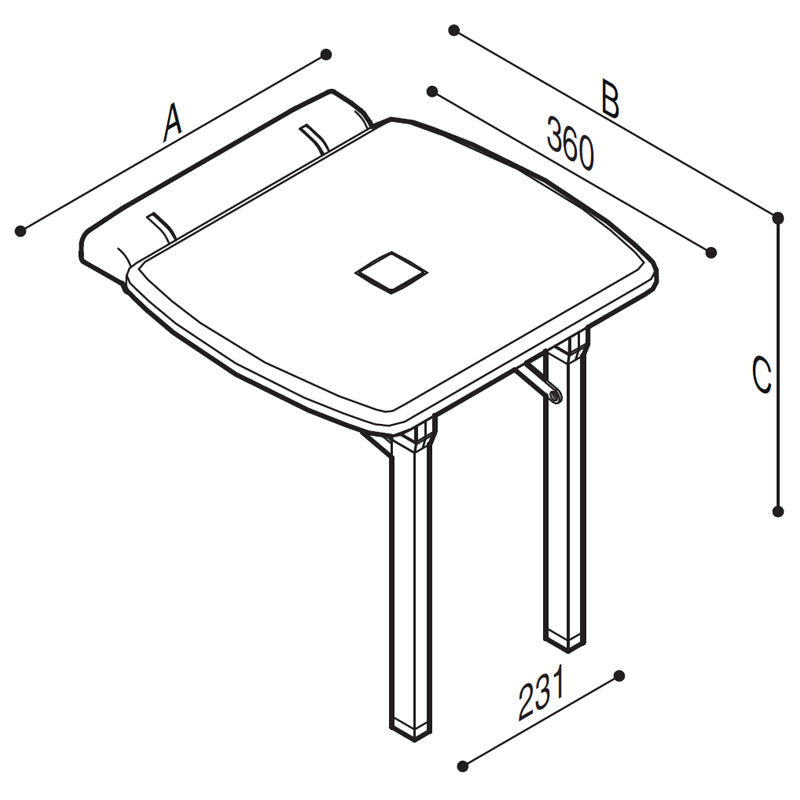

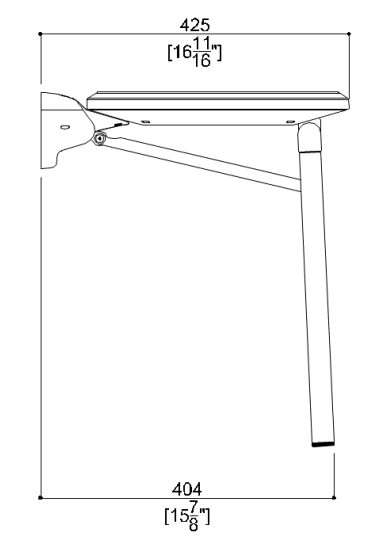

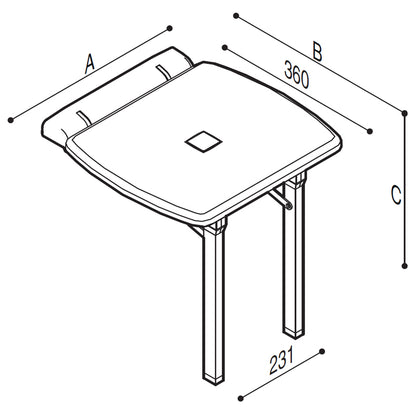

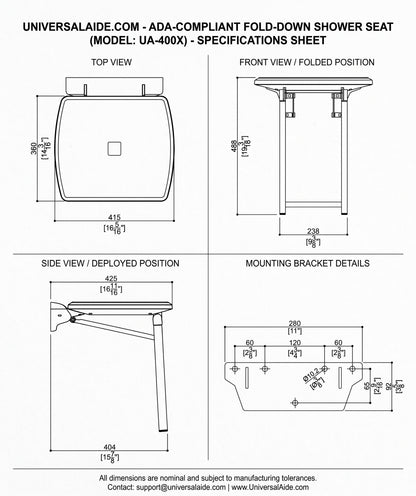

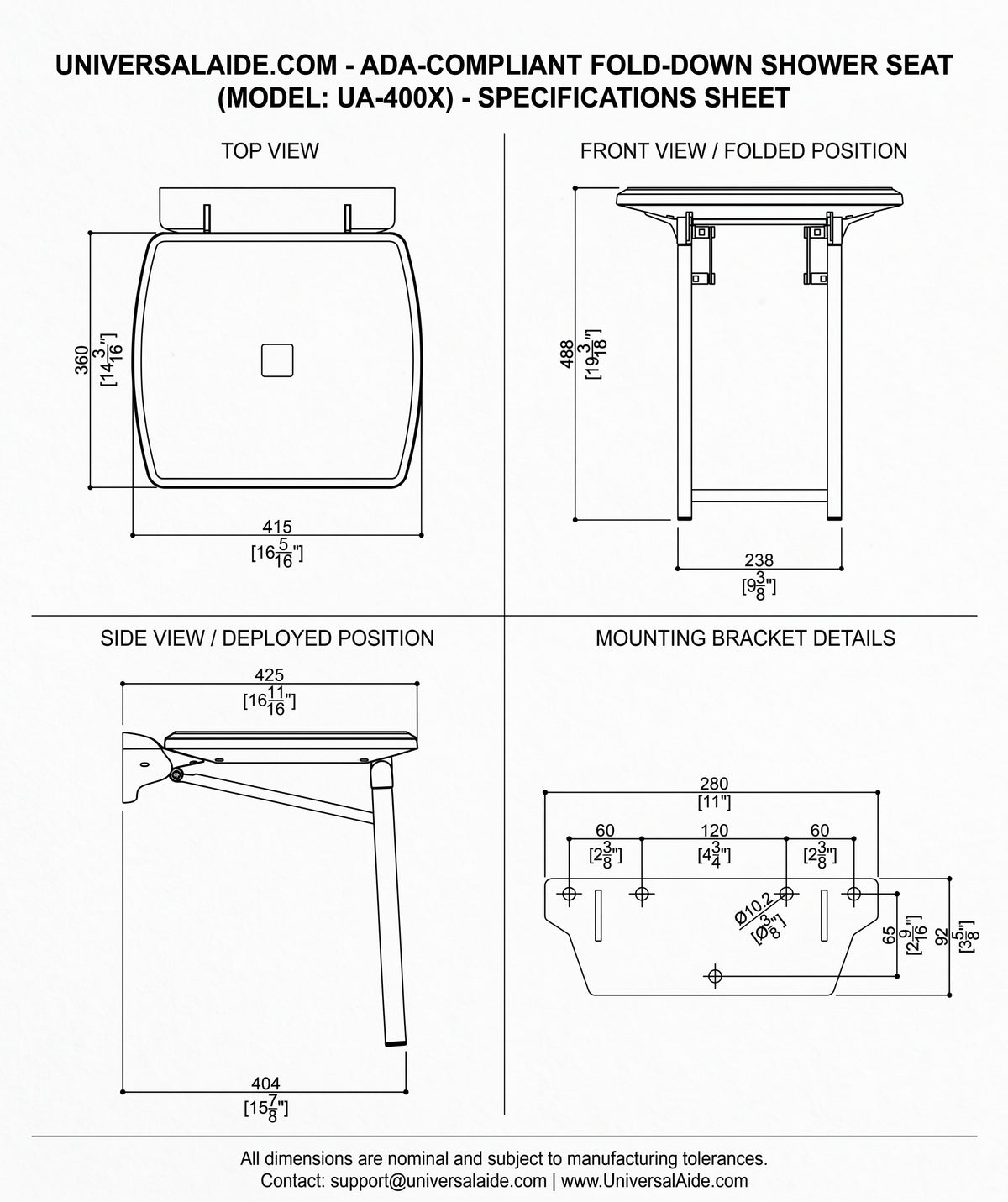

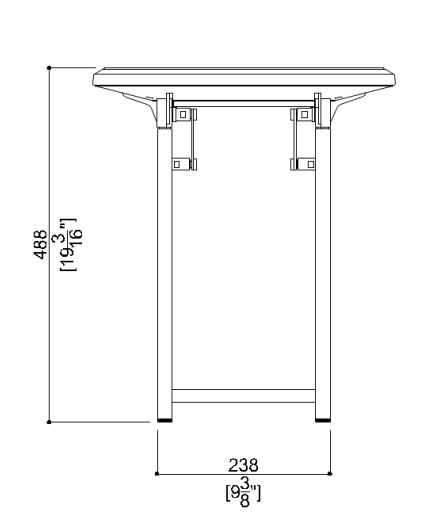

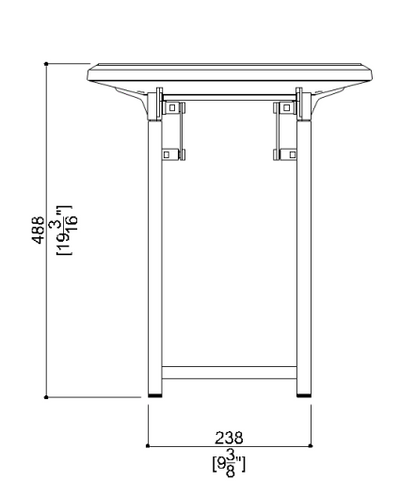

| Overall Outer Dimensions (A x B x C) | 16.31" Width x 16.75" Depth x 19.19" Height | Rough-In Construction Envelope (16-5/16" x 16-3/4" x 19-3/16") |

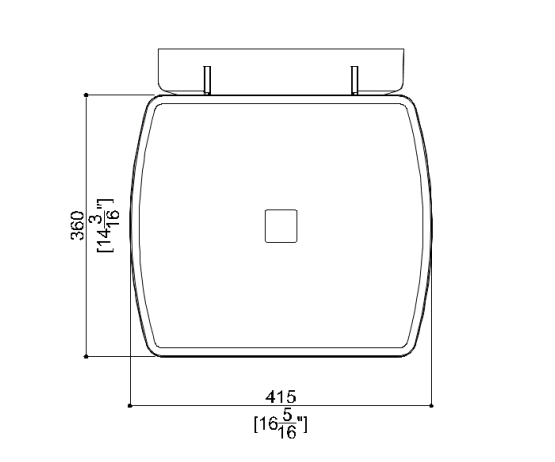

| Seat Surface Dimensions | 16.5" Width x 14.25" Depth x 19.0" Height | Compact Space-Saving Seating Footprint |

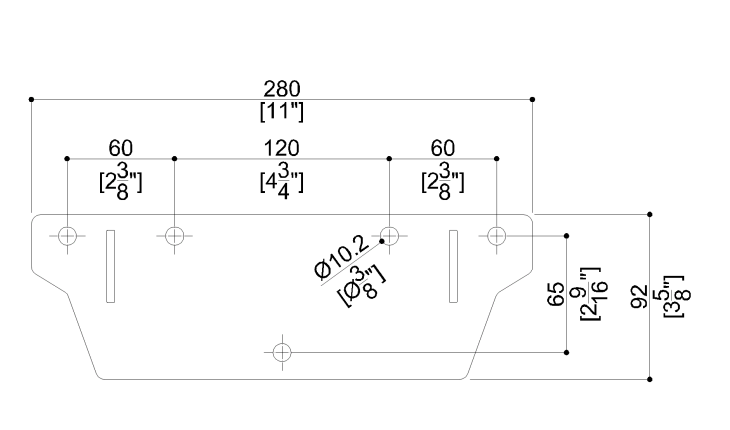

| Mounting Flange Center Spacing | 9.5 Inches (Center-on-Center) | Wall Anchorage Footprint |
| Seat Top Material & Finish | High-Impact Polished ABS Synthetic Plastic | Non-Porous, Easy-Clean Surface Top |
| Structural Frame & Legs | Matte Aluminum Frame & Rough Steel Core | Corrosion-Resistant Structural Alloy Assembly |
| Surface Drainage Integration | Factory Molded Central Drain Hole | Prevents Surface Water Pooling |
| Support Legs | Dual Folding Structural Legs | Floor-Bearing Static Load Distribution |
| Vertical Static Load Rating | 551 lbs (250 kg Vertical Static Capacity) | Exceeds ADA 250-lb Structural Requirement |
| Net Tare Weight | 8.82 lbs (4.0 kg) | Lightweight High-Strength Unit Construction |
| Anchoring Requirements | Mount Direct to Wood Studs, Blocking, or Concrete | Structural Wall Substrate Fastening Mandatory |
| Regulatory Standard | ADA / ANSI A117.1 Compliant | Federal Accessibility Standard Certified |
Key Performance & Construction Features
- 551-Pound Vertical Static Load Rating: Dual folding support legs carry primary vertical forces down to the shower floor structure, reducing stress on wall anchorage.
- Integrated Fluid Drainage Channel: The seat surface features a centrally located drain hole designed to allow water runoff during use, preventing fluid pooling.
- Dual Folding Mechanism: Both the seating top and structural support legs fold upward flat against the wall tile when stowed, minimizing projection into the shower stall.
- High-Impact ABS Top & Steel Core: Combines a durable, non-porous ABS exterior surface with an internal steel reinforcing core for long-term structural integrity in wet environments.
- Streamlined 9.5" Mounting Flange: Features a compact 9.5-inch center-on-center mounting footprint that installs cleanly into standard 16-inch stud spacing or structural blocking.
Regulatory Compliance & Installation Notes
To ensure full ADA and building code compliance:
- ADA Compliance: When mounted securely into solid wood studs, structural wall blocking, or reinforced concrete walls at the correct height, this shower seat meets federal ADA specifications for load capacity and seat dimensions.
- Structural Anchoring Requirement: Wall mounting flanges must be anchored directly into solid wood studs, structural wood blocking, or solid masonry/concrete walls capable of supporting the rated 551-pound vertical static load.
