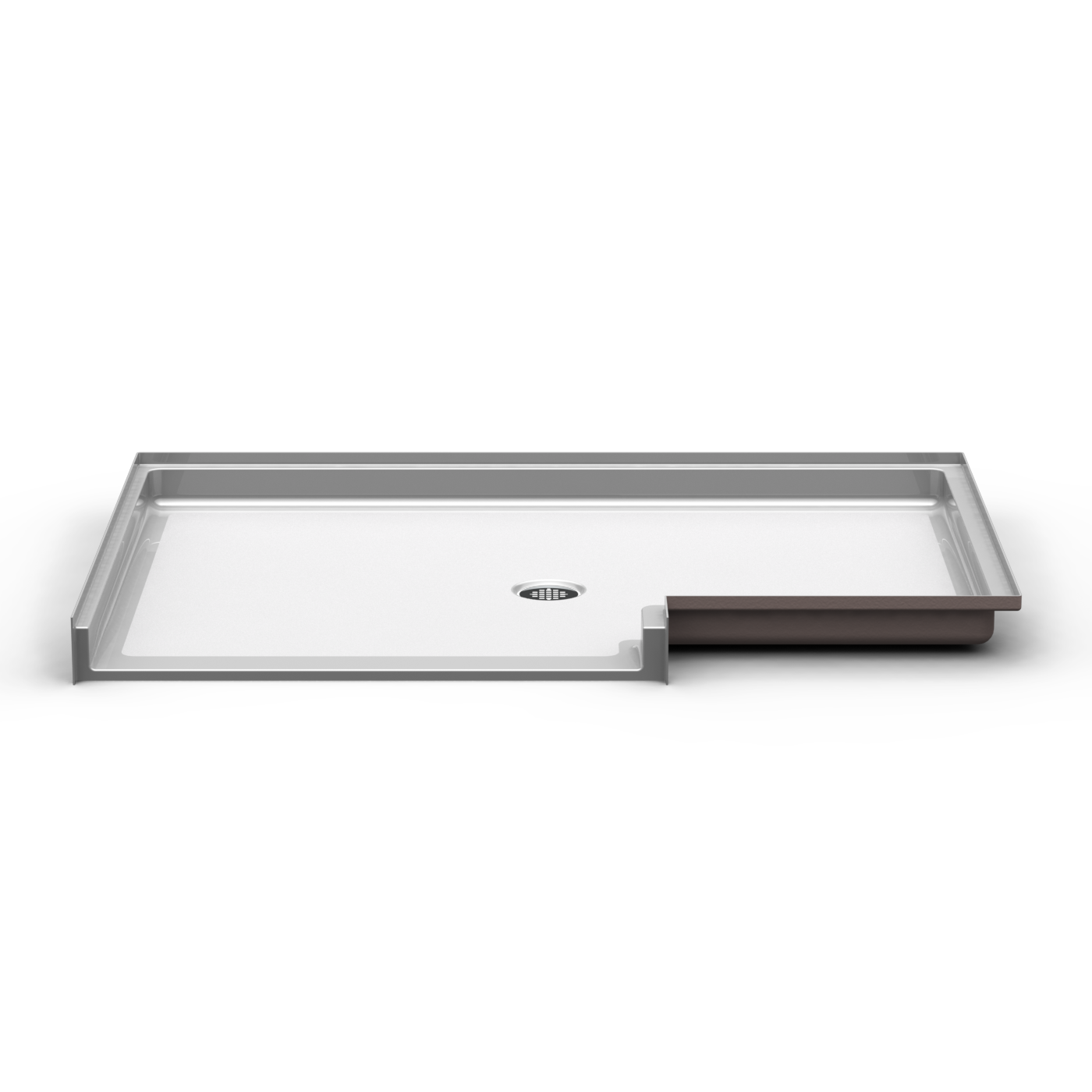

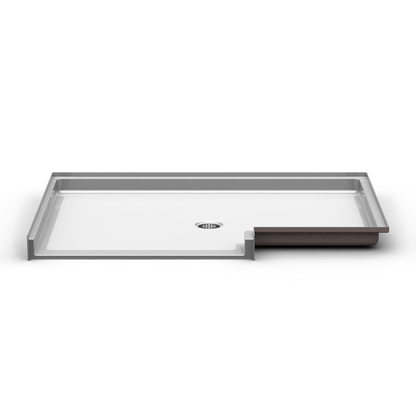

64x42 Code Compliant Shower Pan P26442W (ADA Wing Wall Compliant)

The P26442W is a professional-grade, single-piece sanitary shower base engineered specifically to satisfy federal ADA/ANSI A and ANSI B accessibility building codes. Manufactured from high-density, gelcoat-reinforced fiberglass, this barrier-free shower pan features an integrated wing wall (reveal flange) configuration and a center drain. Designed for heavy-duty commercial healthcare installations, public housing upgrades, and residential roll-in conversions, it eliminates the need for traditional mortar mud-setting while maintaining absolute structural stability under load.

Technical Specifications

Customizable Entry Profiles & Configurations

1. Entry Threshold Height

Available in six distinct configurations to accommodate specific flooring profiles and roll-in transition requirements:

• 0.75 Inch: Barrier-free low-profile entry.
• 1.00 Inch: Low-profile entry transition.
• 1.25 Inches: Low-profile entry transition.
• 1.50 Inches: High-profile standard water containment barrier.
• 1.75 Inches: High-profile standard water containment barrier.
• 2.00 Inches: Standard deep water-containment threshold.

2. Threshold Bevel Type

• Traditional (Square Edge): Suited for standard sliding, folding, or swinging shower doors.
• Beveled (Tapered Ramp): Engineered to facilitate wheelchair roll-in and roll-out transitions.

3. Wing Wall Location

Must be configured during ordering to match your alcove’s plumbing and access requirements:

• Left-Hand Wall: Built-in structural wing flange located on the left side of the unit.
• Right-Hand Wall: Built-in structural wing flange located on the right side of the unit.

Regulatory & Building Code Compliance

This plumbing fixture is manufactured to comply with strict public and residential accessibility standards:

• ADA & ANSI A117.1 Roll-In Compliance: Programmatically matches the mandatory clearance space required for commercial wheelchair roll-in shower compartments when properly paired with standard compliance seats and grab bars.
• ANSI Type B Compliance: Satisfies standard multi-family and public accommodation facility building codes.

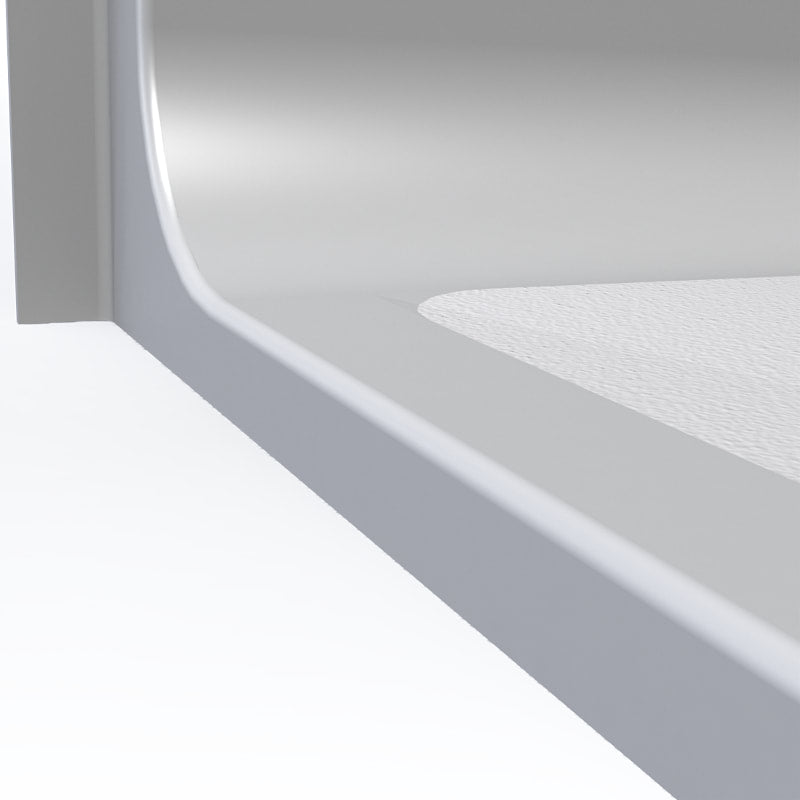

• Slip-Resistant Textured Floor: Features a built-in micro-textured surface to maximize traction in wet conditions, complying with standard plumbing safety coefficient requirements.
• Sanitary Surface Integrity: The stain-resistant gelcoat finish prevents bacterial nesting and withstands rigorous commercial sanitation protocols.

Package Contents & Installation

• One (1) P26442W single-piece reinforced fiberglass shower pan with reveal flange.
• One (1) commercial-grade adhesive installation kit (supplied for threshold options 1.25 inches or lower).
• One (1) printed step-by-step manufacturer installation manual.

Commercial & Bulk Ordering

For high-volume commercial projects, healthcare facilities, and dealer-tier pricing on bulk pan orders, please contact our dedicated contract sales team directly at support@universalaide.com.

Shipping, Stock Status, and Returns

In accordance with our commitment to consumer transparency and Google Merchant Center compliance:

• Availability: In Stock and ready to ship. Manufacturing lead time is 5 business days.
• Shipping Costs: Flat-rate or real-time carrier shipping options are displayed directly at checkout before payment is entered.
• Refund & Return Policy: Covered under our 30-Day Policy. If the product is lost in transit, arrives damaged, or is the incorrect SKU, contact us at support@universalaide.com for an immediate exchange or full refund.
