45x51 Code Compliant Shower Pan P24551BB (ADA & California Title 24 Compliant)

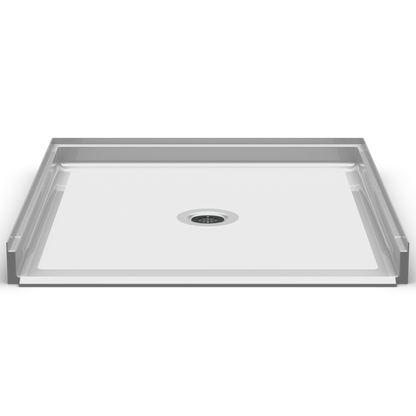

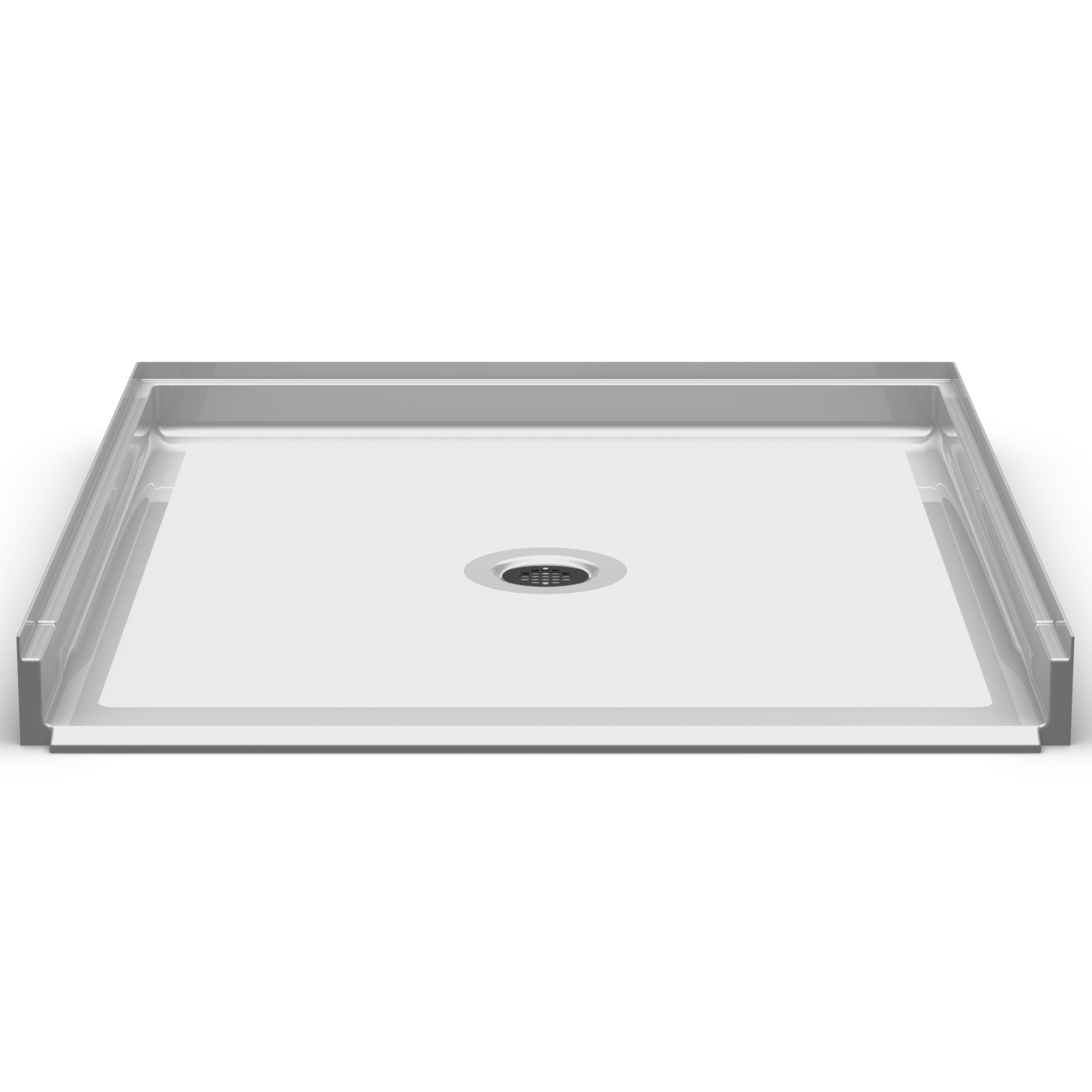

The P24551BB is a professional-grade, single-piece sanitary shower base engineered specifically to satisfy ADA/ANSI A, ANSI B, and California Title 24 accessibility building codes. Manufactured from high-density, gelcoat-reinforced fiberglass, this barrier-free shower pan offers a highly stable, slip-resistant foundation. It features a center drain configuration, making it an ideal choice for accessible bathroom retrofits, senior living facilities, and commercial health spaces requiring strict compliance and a smooth transition profile.

*This product package includes the compatible standard center drain assembly and a polished stainless steel drain grate.

Technical Specifications

Customizable Features & Options

1. Entry Threshold Height

Available in seven distinct configurations to accommodate specific architectural and flooring transitions:

• 0.50 Inch: Ultra-low profile step-over height.
• 0.75 Inch: Barrier-free low-profile entry.
• 1.00 Inch: Low-profile entry transition.
• 1.25 Inches: Mid-profile entry transition.
• 1.50 Inches: High-profile standard water containment barrier.
• 1.75 Inches: High-profile standard water containment barrier.
• 2.00 Inches: Standard deep water-containment threshold.

2. Threshold Bevel Type

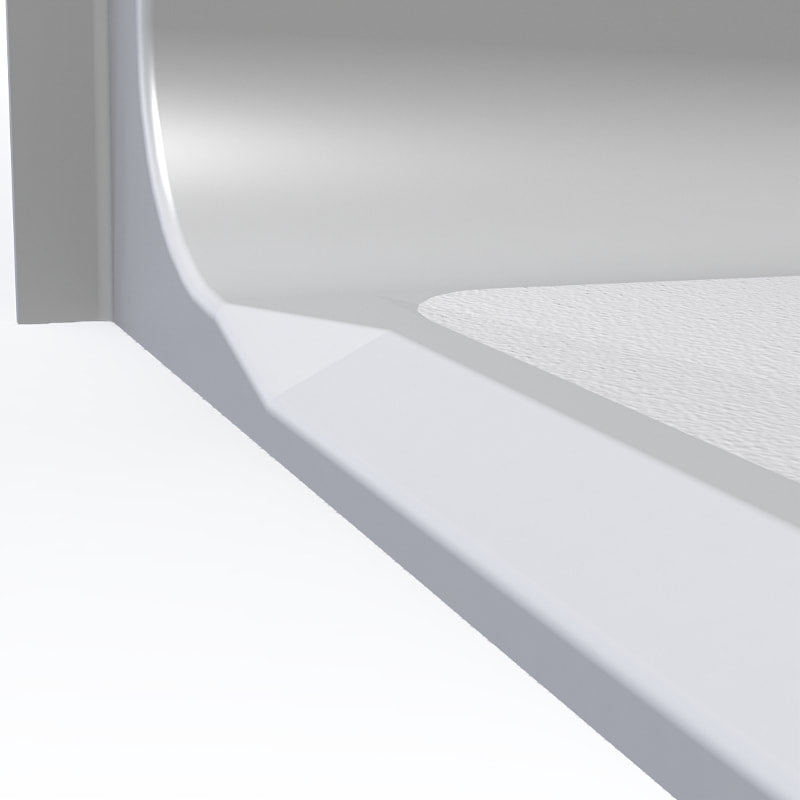

• Beveled (Tapered Ramp): Features a standard beveled profile engineered to facilitate wheelchair roll-in and roll-out transitions.

Regulatory & Building Code Compliance

This plumbing fixture is manufactured to comply with public and residential accessibility standards:

• ADA & ANSI Type A Compliance: Meets federal parameters for independent, barrier-free roll-in showers when installed according to local plumbing guidelines.
• ANSI Type B Compliance: Satisfies standard multi-family and public accommodation facility building codes.
• California Title 24 Compliance: Certified to meet the rigorous accessibility, water containment, and drainage requirements mandated under California building codes.
• Slip-Resistant Textured Floor: Features a built-in micro-textured surface to maximize traction in wet conditions, complying with standard plumbing safety coefficient requirements.
• Sanitary Surface Integrity: The stain-resistant gelcoat finish prevents bacterial nesting and withstands rigorous commercial sanitation protocols.

Package Contents & Installation

• One (1) P24551BB reinforced fiberglass shower pan.
• One (1) standard center drain assembly and polished stainless steel grate.
• One (1) commercial-grade adhesive installation kit (supplied for thresholds 1.25 inches or shorter).
• One (1) printed step-by-step manufacturer installation manual.

Commercial & Bulk Ordering

For high-volume commercial projects, healthcare facilities, and dealer-tier pricing on bulk pan orders, please contact our dedicated contract sales team directly at support@universalaide.com.

Shipping, Stock Status, and Returns

In accordance with our commitment to consumer transparency and Google Merchant Center compliance:

• Availability: In Stock and ready to ship. Manufacturing lead time is 5 business days.
• Shipping Costs: Flat-rate or real-time carrier shipping options are displayed directly at checkout before payment is entered.
• Refund & Return Policy: Covered under our 30-Day Policy. If the product is lost in transit, arrives damaged, or is the incorrect SKU, contact us at support@universalaide.com for an immediate exchange or full refund.

Spec Sheet:

• p24551b5b.pdf

Installation Guide:

• low_profile_multi-piece_shower.pdf
• low_profile_multi-piece_shower_spanish.pdf

Custom & Made-to-Order Items Policy:

Customers are fully responsible for confirming accurate measurements using the provided product specification sheets prior to placing an order. Items manufactured according to the selected order specifications cannot be returned, exchanged, or refunded due to customer measurement errors or site mismatch. Submitting an order confirms your acceptance of these dimensions. This item is a NON-RETURNABLE hygiene-related product.
