Bestbath
84x35 RS8 Geneva Walk-In Tub (ANSI Z124.1.2 Compliant Walk-In Bathtub)
84x35 RS8 Geneva Walk-In Tub (ANSI Z124.1.2 Compliant Walk-In Bathtub)
SKU: RS8-Geneva
- Regular price
- Price: $24,250.00
- Regular price
- List Price:
- Sale price
- Price: $24,250.00
- Unit price
- per
Couldn't load pickup availability
100 in stock
PRODUCT DESCRIPTION

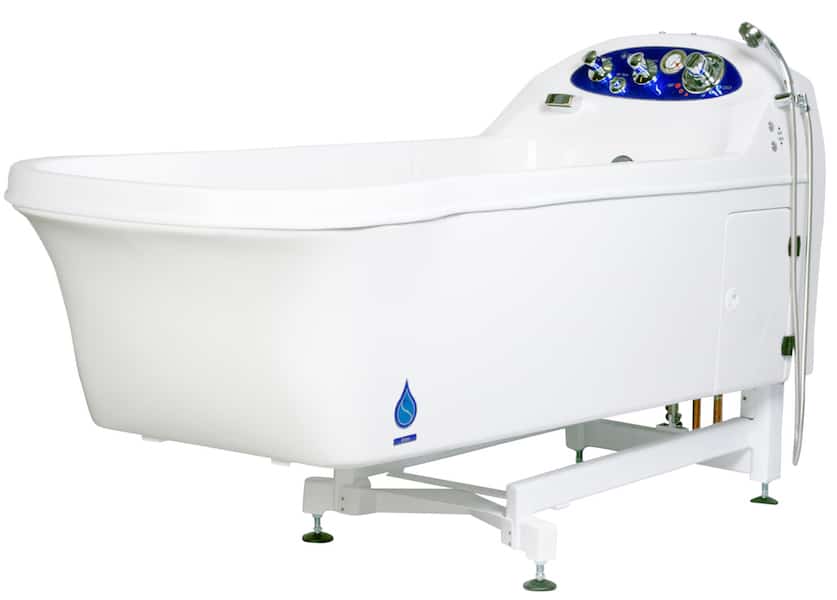

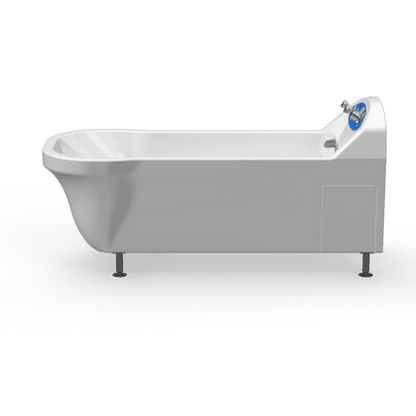

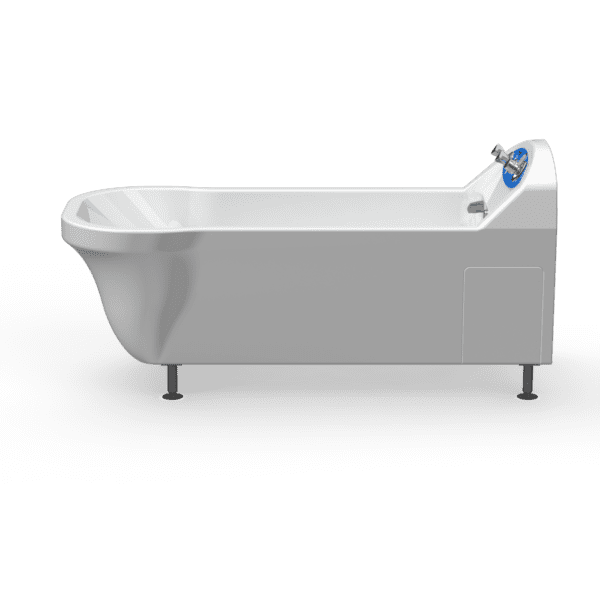

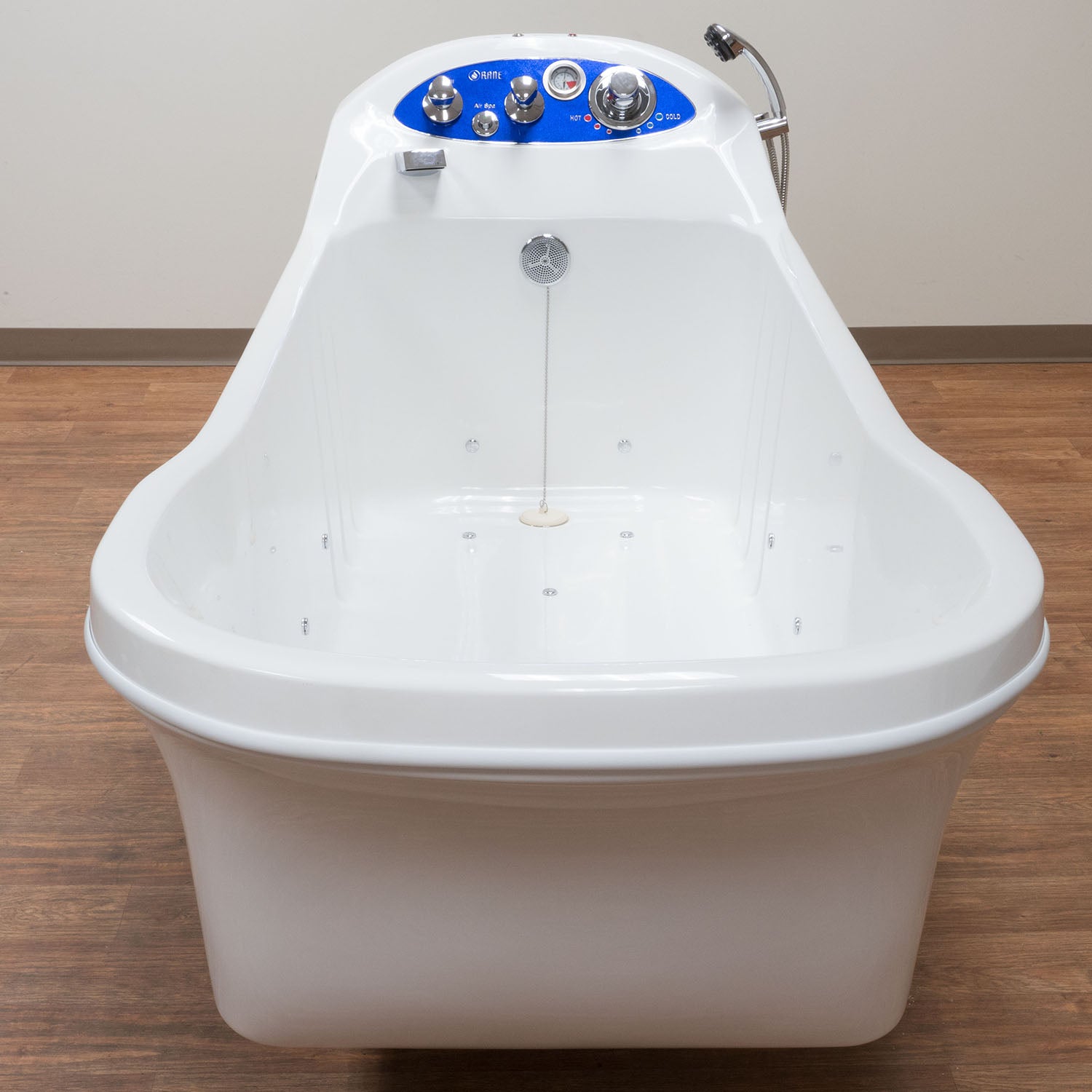

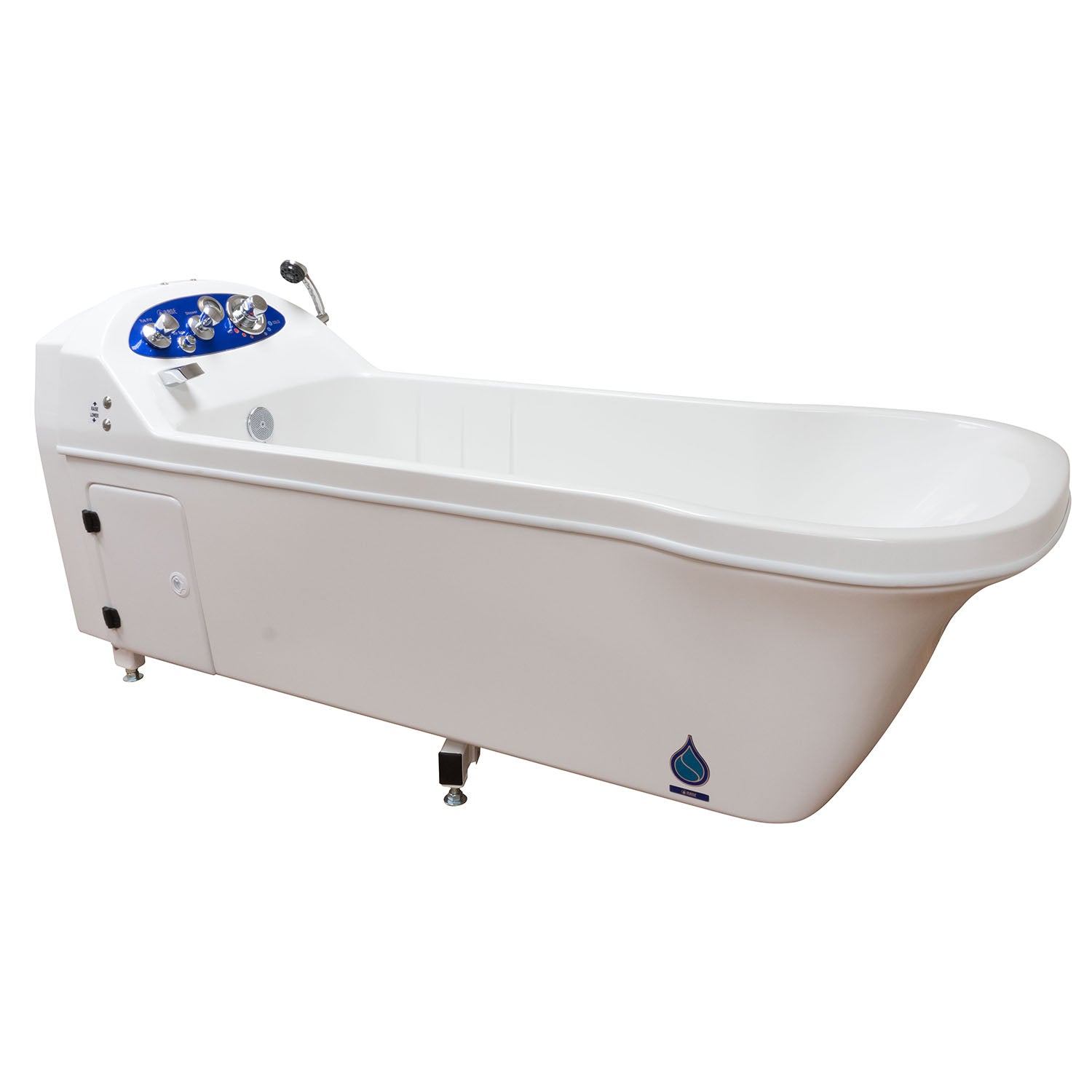

The RS8 Geneva is a commercial-grade, single-piece sanitary supine and recumbent freestanding walk-in bathtub engineered specifically for highly dependent users requiring advanced bather transfer and caregivers seeking to minimize physical strain. Constructed from thick, fiberglass-reinforced polyester laminate with a non-porous gelcoat finish, this bath features a heavy-duty welded aircraft-grade aluminum frame. Standard configurations include an integrated external chemical disinfection system, an anti-scald thermostatic mixing valve with a high-flow 15 gallons-per-minute fill rate, and dual end-drain options.
*The hardware configuration is factory-tested and certified to prevent water-borne pathogen crossover.
Technical Specifications
| Attribute | Specification | Standard & Material Compliance |
|---|---|---|
| Model SKU | RS8-Geneva | Manufacturer Tracked Model |
| Outside Width | 35.5 Inches | Rough-In Construction Envelope Width |
| Outside Length (Fixed) | 84 Inches | Rough-In Construction Envelope Length |
| Outside Length (Adjustable) | 90 Inches | Height-Adjustable Model Range |
| Rim Height (Fixed) | 32.5 Inches (lowest setting) | Standard Clearance Height |

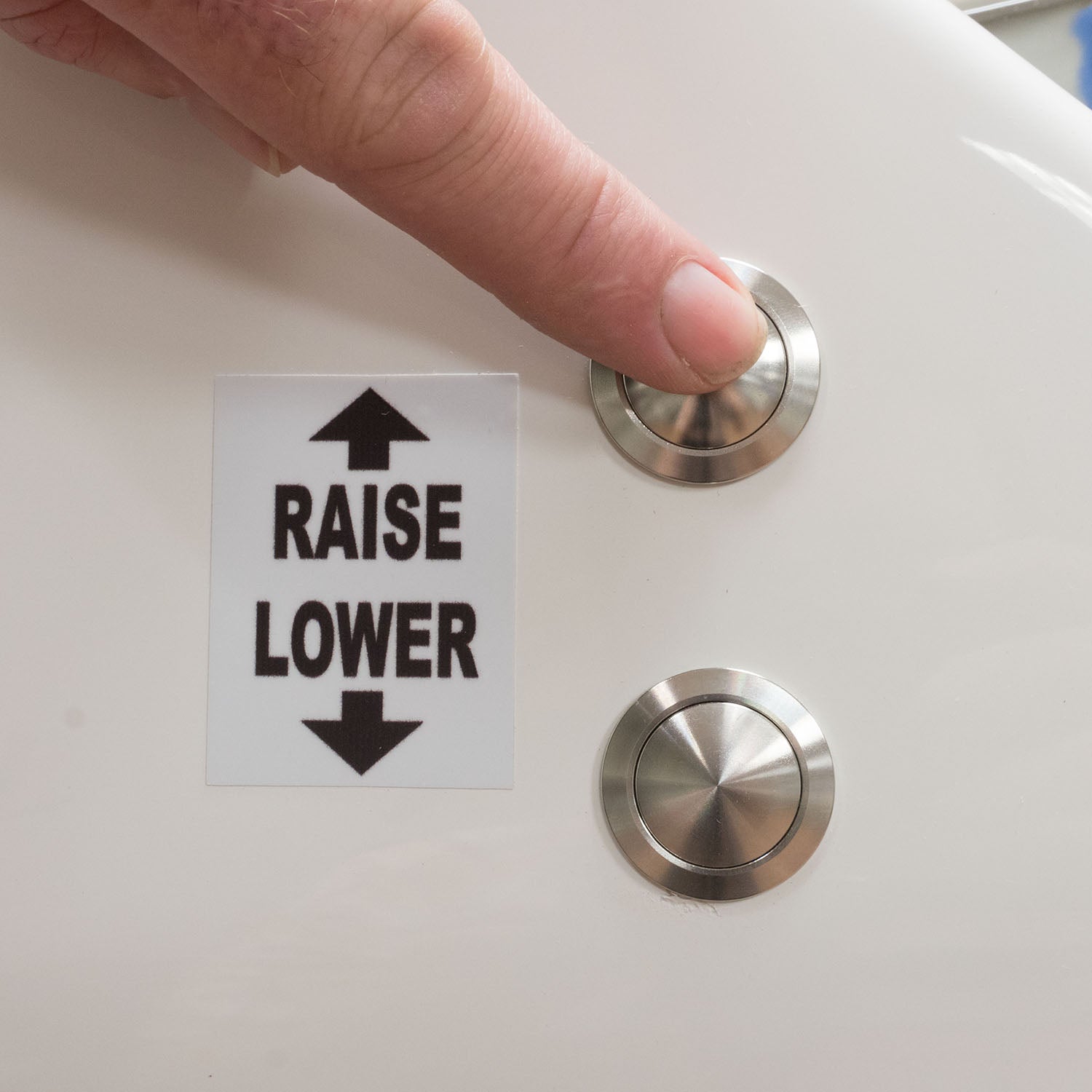

| Rim Height (Adjustable) | 30 Inches (lowest setting) | Height-Adjustable Travel Range Options |
| Bather Weight Capacity | 600 lbs (272.7 kg) | Structural Load-Bearing Rating |
| Occupied Water Capacity | 64 Gallons (242.2 L) | Standard Bathwell Liquid Volume |
| Drain Location Options | Left-Hand / Right-Hand | Symmetrical Alcove Support |
| Water Supply Inlet | 0.75" Diameter | Anti-Scald Thermostatic Connection |
| Drain Connection Size | 1.5 Inches (PVC) | High-Volume Quick Drain |
| Electrical Requirements | 115V AC; 60Hz; 15 Amp | Standard GFCI Wall Plug Required |
Standard Package Features
Every baseline configuration is built with specialized hardware to optimize clinical time-efficiency and patient safety:

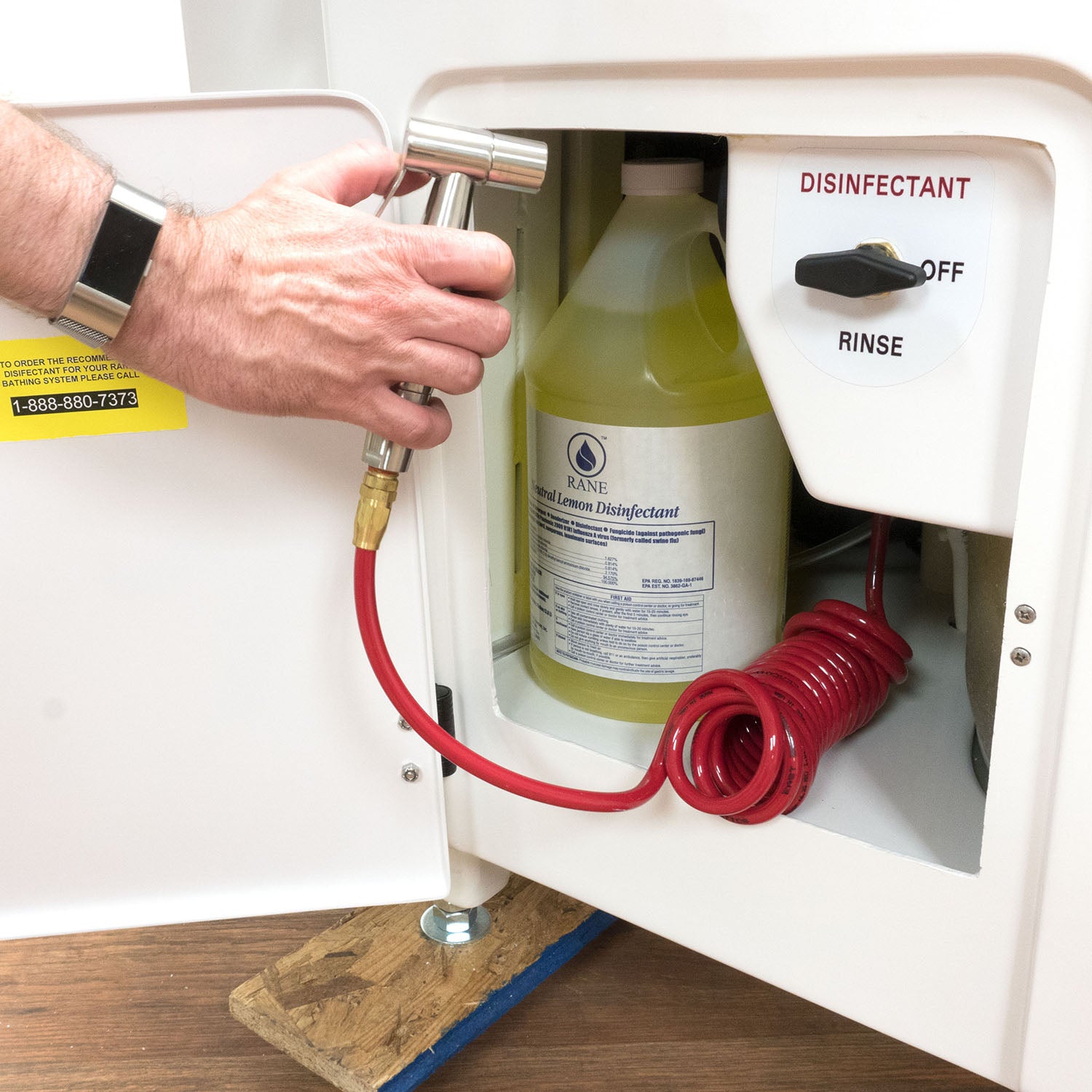

- Integrated Disinfection System: Features a dedicated chemical injection manifold designed to sanitize all external surfaces, minimizing cross-infection risks.
- High-Flow Mixing Valve: Thermostatic anti-scald protection that dispenses up to 15 GPM for rapid tub-fill rates.
- Dual Temperature Thermometers: Visible analog gauges tracking water supply temperatures to ensure resident safety.
- Handheld Shower Wand: Allows secondary washing of hair and upper body during bathwell fill cycle.
Optional Hydrotherapeutic Packages
Choose your pre-configured mechanical package during ordering to match specific resident care plans:
- Autofill System: Caregiver-assist automation that pre-fills the tub bathwell to a preset 64-gallon limit, eliminating manual observation times.
- CleanRane Air Spa System: Integrates variable-speed, pulsating warm-air massage channels into the gelcoat shell to promote peripheral circulation.
- Heated Seat & Backrest: Pre-wired carbon-fiber heating grids embedded beneath the gelcoat surface for immediate thermal regulation.
Regulatory & Building Code Compliance
This plumbing fixture is manufactured to comply with strict public, residential, and commercial plumbing codes:
- ANSI Z124.1.2: Certified compliant for structural load, wear-resistance, and non-porous gelcoat material standards for plastic bathtubs.
- IPC & UPC Certification: Fully approved under the International Plumbing Code and Uniform Plumbing Code.
- Safety Coefficients: Molded non-slip textured finish inside the bathwell floor to provide traction under bather immersion.
Shipping, Stock Status, and Returns
In accordance with our commitment to consumer transparency and Google Merchant Center guidelines:
- Availability: In Stock and ready to ship. Processing lead time is 5 business days.
- Shipping Costs: Direct real-time freight carrier rates are calculated at checkout. No hidden handling surcharges.
- Returns & Refund Policy: Covered under our 30-Day Policy. If the package is lost, arrives structurally damaged, or is the incorrect SKU, contact us at support@universalaide.com for an immediate exchange or full refund.
