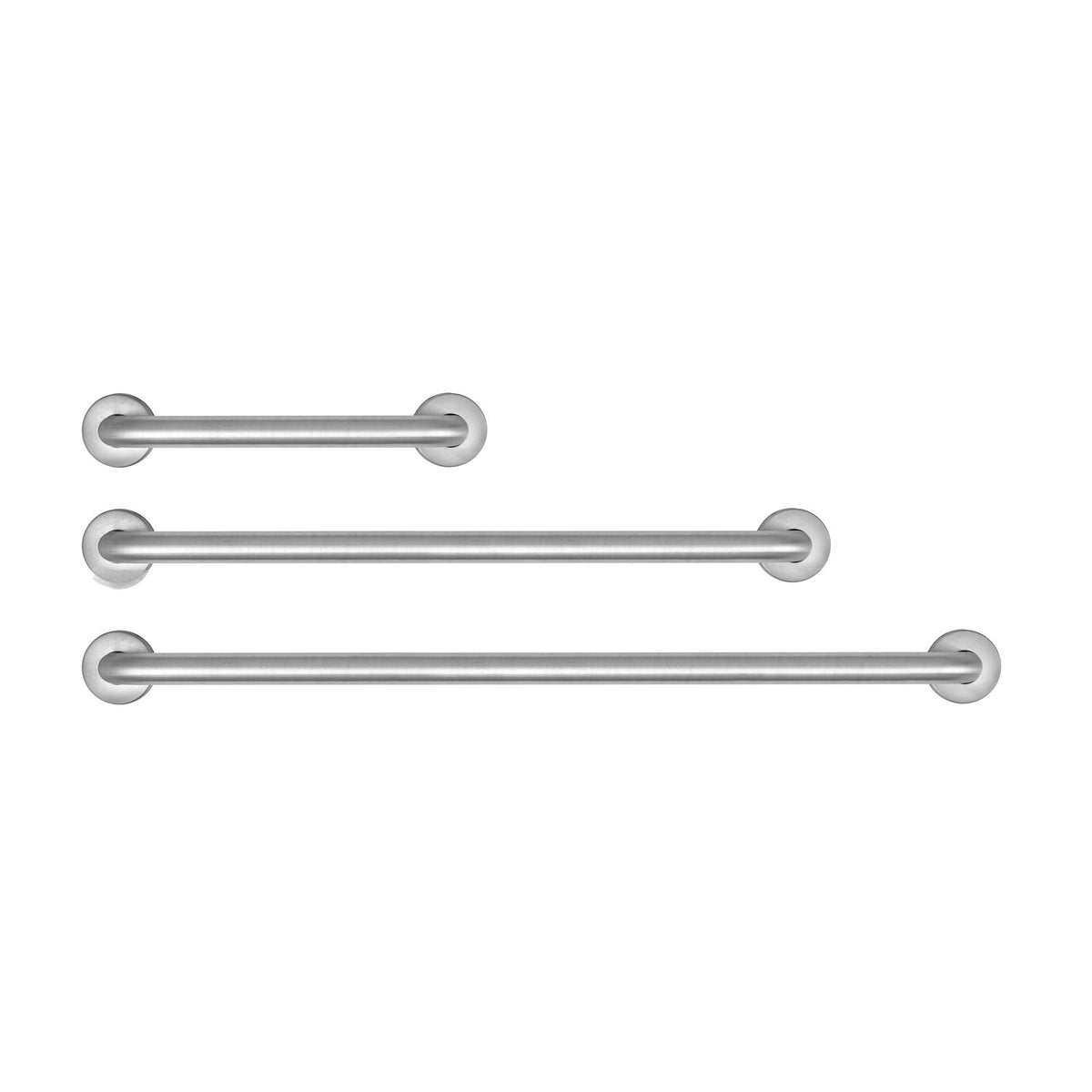

Ponte Giulio Commercial ADA Stainless Steel Grab Bar Set of 3 (18", 36", 42") - W57TCS03 (ADA Compliant)
Ponte Giulio Commercial ADA Stainless Steel Grab Bar Set of 3 (18", 36", 42") - W57TCS03 (ADA Compliant)
SKU: W57TCS03
- Regular price
- Price: $111.00
- Regular price
- List Price:
- Sale price
- Price: $111.00
- Unit price
- per
10% off | Coupon Code: AIDE | Ends:
Couldn't load pickup availability
PRODUCT DESCRIPTION
The Ponte Giulio Commercial ADA Grab Bar Set (Kit Code: W57TCS03) is a commercial-grade, 3-piece bathroom hardware bundle engineered specifically for public restrooms, commercial facilities, healthcare projects, and ADA-compliant stall installations. Manufactured from high-density AISI 304 tubular stainless steel with a 1.2 mm wall thickness and a 1.25-inch outer diameter, this set includes the three standard commercial ADA lengths: one 18-inch (vertical entry), one 36-inch (rear wall), and one 42-inch (side wall) center-on-center grab bar. Each bar features 3.25-inch concealed mounting flange covers to hide installation fasteners and provide a seamless wall anchorage.
Kit Technical Specifications
| System Attribute | Specification Parameter | Standard & Material Compliance |
|---|---|---|
| Kit Model SKU | W57TCS03 | Ponte Giulio Tracked Bundle SKU |
| Total Included Pieces | 3 Grab Bars (18", 36", 42") | Standard Commercial Stall Layout Set |
| Bar Outer Diameter | 1.25 Inches (32 mm) | ADA Standard Easy-Grip Diameter |
| Tubular Wall Thickness | 1.2 mm | High-Density Structural Tubing |
| Material Grade | AISI 304 Stainless Steel | Corrosion-Resistant Sanitary Alloy |
| Flange Cover Diameter | 3.25 Inches (3 1/4") | Concealed Mounting Plate Escutcheon |
| Wall Clearance | 1.5 Inches (Clear Space) | ADA Mandatory Hand Clearance Space |
| Vertical Load Capacity | 450 lbs (Per Bar) | Exceeds ADA 250-lb Structural Requirement |
| Included Hardware | Stainless Steel Screws | Supplied for Wood Stud Installation |
| Regulatory Standard | ADA / ANSI A117.1 Compliant | Federal Accessibility Standard Certified |
Included Component Breakdown
| Qty | Included Item | Component SKU | Dimensions (A x B x C) | Center-on-Center (A1) | Net Weight | Vertical Load Rating |
|---|---|---|---|---|---|---|
| 1 | 18" Stainless Steel Grab Bar | G57JAS03 | 21.06" x 2.75" x 3.06" | 18.0 Inches | 1.37 lbs | 450 lbs |
| 1 | 36" Stainless Steel Grab Bar | G57JAS07 | 39.06" x 2.75" x 3.06" | 36.0 Inches | 2.54 lbs | 450 lbs |
| 1 | 42" Stainless Steel Grab Bar | G57JAS08 | 45.06" x 2.75" x 3.06" | 42.0 Inches | 2.91 lbs | 450 lbs |
18” Stainless Steel Grab Bar
36” Stainless Steel Grab Bar
42” Stainless Steel Grab Bar
Key Performance & Construction Features
- Complete Commercial Restroom Solution: Bundles the three exact grab bar lengths (18", 36", 42") mandated by federal ADA codes for standard commercial toilet stall and water closet configurations.
- Concealed Flange Anchoring: Each bar is equipped with a 3.25-inch snap-on flange cover that conceals the mounting screws, protecting the mounting plate from direct water exposure while providing a clean aesthetic.
- AISI 304 Stainless Steel Construction: Manufactured from non-corrosive 304-grade stainless steel engineered specifically for high-traffic public restrooms, commercial facilities, and wet environments.
- Universal Grip Profile: The 1.25-inch tubular diameter and 1.5-inch wall clearance meet federal ADA guidelines, offering ergonomic hand clearance for all user grip sizes.
- Wood Stud Mounting Package: Each bundle includes stainless steel mounting screws designed for direct structural anchorage into wood studs or wall blocking.
Regulatory Compliance & Installation Notes
To ensure full ADA and building code compliance:
- ADA Compliance: When installed into solid wood studs or structural wall blocking in accordance with manufacturer instructions, all three grab bars satisfy federal ADA requirements for structural load capacity and wall clearance.
- Standard Stall Placement: The 36-inch bar is sized for rear-wall installation behind the toilet, the 42-inch bar is sized for the side wall, and the 18-inch bar provides vertical transfer support.
- Structural Anchoring Requirement: Grab bars are only as strong as the anchor points to which they are attached. Mounting hardware must be anchored directly into structural wood studs or approved wall blocking capable of supporting the 450-pound vertical load rating per bar.
