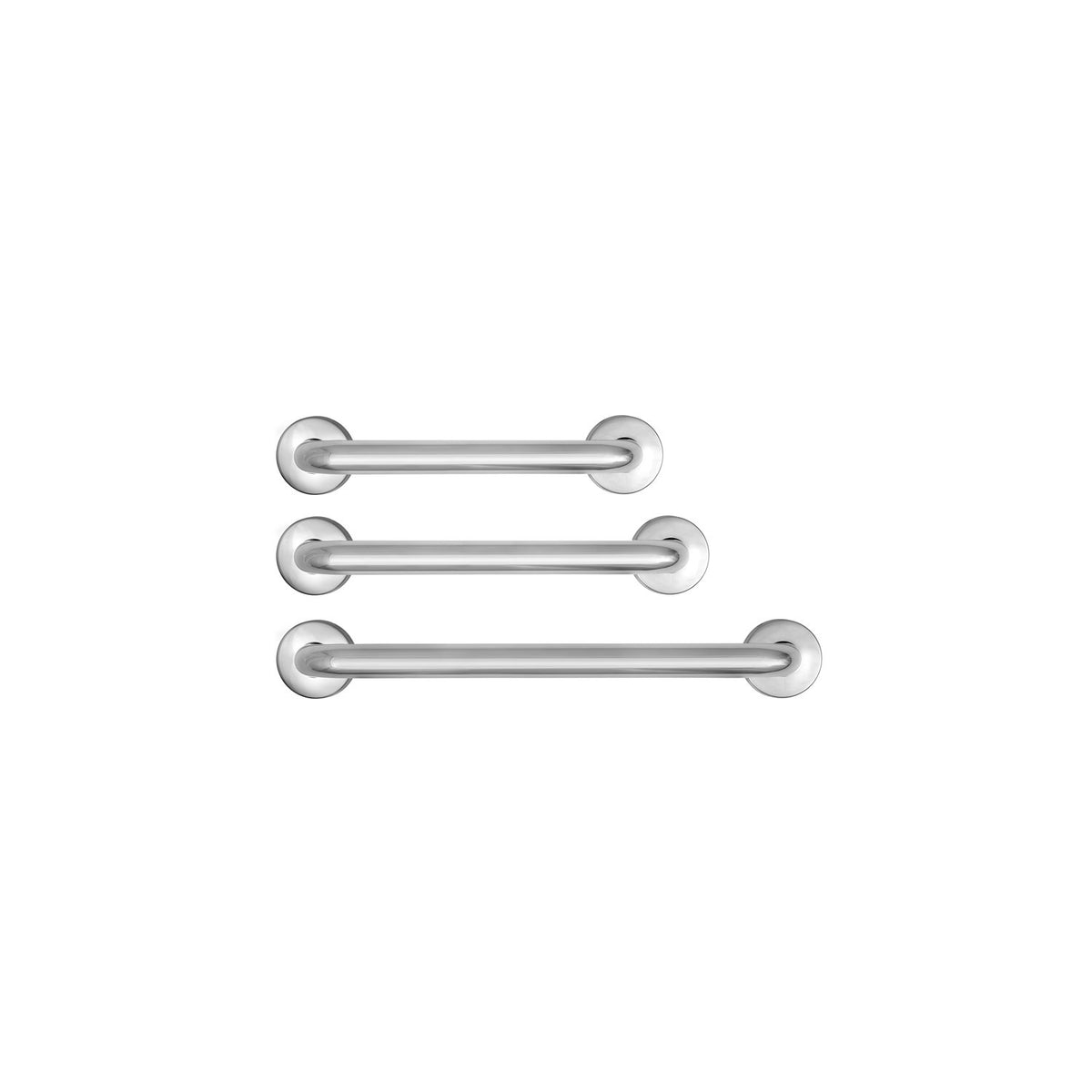

Ponte Giulio Basic Home Stainless Steel Grab Bar Set of 3 (16", 24", 32") - W57TCS01 (ADA Compliant)
Ponte Giulio Basic Home Stainless Steel Grab Bar Set of 3 (16", 24", 32") - W57TCS01 (ADA Compliant)
SKU: W57TCS01
- Regular price
- Price: $92.70
- Regular price
- List Price:
- Sale price
- Price: $92.70
- Unit price
- per
10% off | Coupon Code: AIDE | Ends:
Couldn't load pickup availability
PRODUCT DESCRIPTION
The Ponte Giulio Basic Home Grab Bar Set (Kit Code: W57TCS01) is a commercial-grade, 3-piece bathroom hardware bundle engineered specifically for residential retrofits, senior living facilities, and commercial ADA-compliant rest installations [cite: 1, 2, 3]. Manufactured from high-density AISI 304 tubular stainless steel with a 1.2 mm wall thickness and a 1.25-inch outer diameter, this set includes three straight grab bars in 16-inch, 24-inch, and 32-inch center-on-center lengths [cite: 1, 2, 3]. Each bar features 3.25-inch concealed mounting flange covers to hide installation fasteners and provide a seamless wall anchorage [cite: 1, 2, 3].
Kit Technical Specifications
| System Attribute | Specification Parameter | Standard & Material Compliance |
|---|---|---|
| Kit Model SKU | W57TCS01 | Ponte Giulio Tracked Bundle SKU |
| Bar Outer Diameter | 1.25 Inches (32 mm) | ADA Standard Easy-Grip Diameter |
| Tubular Wall Thickness | 1.2 mm | High-Density Structural Tubing [cite: 3, 4] |
| Material Grade | AISI 304 Stainless Steel | Corrosion-Resistant Sanitary Alloy |
| Flange Cover Diameter | 3.25 Inches (3 1/4") | Concealed Mounting Plate Escutcheon [cite: 3] |
| Wall Clearance | 1.5 Inches (Clear Space) | ADA Mandatory Hand Clearance Space [cite: 2] |
| Vertical Load Capacity | 450 lbs (Per Bar) | Exceeds ADA 250-lb Structural Requirement |
| Included Hardware | Stainless Steel Screws | Supplied for Wood Stud Mounting [cite: 3, 4] |
| Regulatory Standard | ADA / ANSI A117.1 Compliant | Federal Accessibility Standard Certified |
16” Stainless Steel Grab Bar
24” Stainless Steel Grab Bar
32” Stainless Steel Grab Bar
Included Component Breakdown
| Included Item | Component SKU | Dimensions (A x B x C) | Center-on-Center (A1) | Net Weight | Vertical Load Rating |
|---|---|---|---|---|---|
| 16" Stainless Steel Grab Bar | G57JAS02 | 19.06" x 2.75" x 3.06" | 16.0 Inches | 1.26 lbs | 450 lbs [cite: 2, 3] |
| 24" Stainless Steel Grab Bar | G57JAS04 | 27.06" x 2.75" x 3.06" | 24.0 Inches | 1.75 lbs | 450 lbs [cite: 2, 3] |
| 32" Stainless Steel Grab Bar | G57JAS06 | 35.06" x 2.75" x 3.06" | 32.0 Inches | 2.25 lbs | 450 lbs [cite: 2, 3] |
Key Performance & Construction Features
- Concealed Flange Anchoring: Each bar is equipped with a 3.25-inch snap-on flange cover that conceals the mounting screws, protecting the mounting plate from direct water exposure while providing a clean aesthetic.
- AISI 304 Stainless Steel Construction: Manufactured from non-corrosive 304-grade stainless steel engineered specifically for wet environments, wet-room showers, and high-humidity commercial bathrooms [cite: 1, 2, 5].
- Universal Grip Profile: The 1.25-inch tubular diameter and 1.5-inch wall clearance meet federal ADA guidelines, offering ergonomic hand clearance for all user grip sizes [cite: 1, 2, 3].
- Wood Stud Mounting Package: Each bundle includes stainless steel mounting screws designed for direct structural anchorage into wood studs or backing plates [cite: 3, 4].
Regulatory Compliance & Installation Notes
To ensure full ADA and building code compliance:
- ADA Compliance: When installed into solid wood studs or structural wall blocking in accordance with manufacturer instructions, all three grab bars satisfy federal ADA requirements for structural load capacity and wall clearance.
- Structural Anchoring Requirement: Grab bars are only as strong as the anchor points to which they are attached. Mounting hardware must be anchored directly into structural wood studs or approved wall blocking capable of supporting the 450-pound vertical load rating.
