Ponte Giulio 32" x 33" Stainless Steel 90° Wall-to-Floor Grab Bar with Reversible Outrigger - G55JCS38 (331 lb Capacity, ADA Compliant)
Ponte Giulio 32" x 33" Stainless Steel 90° Wall-to-Floor Grab Bar with Reversible Outrigger - G55JCS38 (331 lb Capacity, ADA Compliant)
SKU: G55JCS38
- Regular price
- Price: $180.60
- Regular price
- List Price:
- Sale price
- Price: $180.60
- Unit price
- per
10% off | Coupon Code: AIDE | Ends:
Couldn't load pickup availability
PRODUCT DESCRIPTION

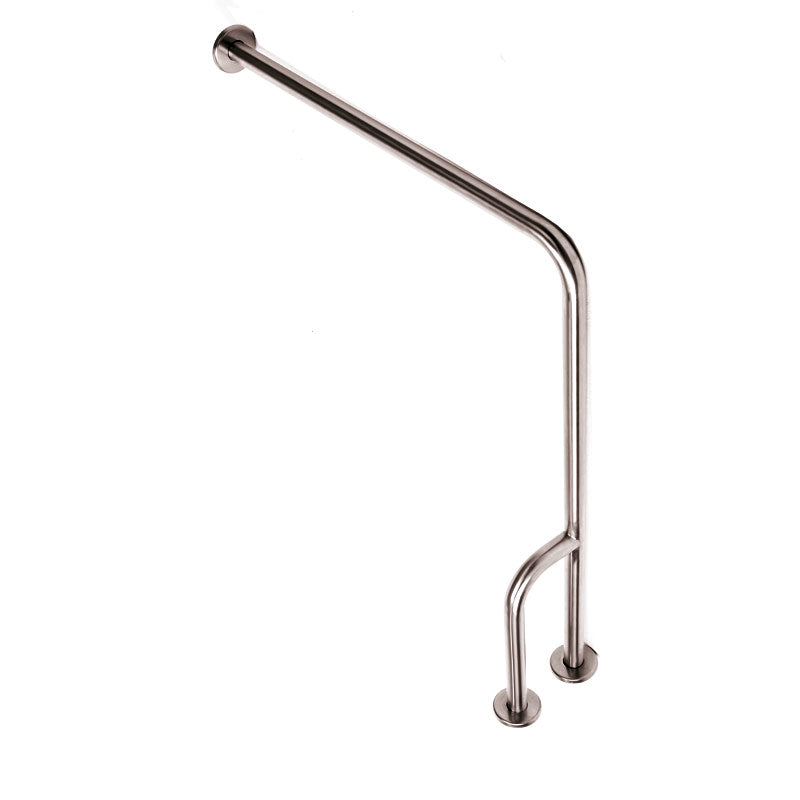

The Ponte Giulio Stainless Steel 90° Wall-To-Floor Grab Bar with Reversible Outrigger (Model SKU: G55JCS38) is a commercial-grade, multi-surface anchored support rail system engineered specifically for universal design developments, commercial restrooms, healthcare facilities, and ADA-compliant installations. Manufactured from AISI 304 satin-brushed stainless steel, this 32-inch wide by 33-inch high rail incorporates a 90-degree wall-to-floor primary chassis complemented by a secondary 8-inch lateral outrigger support arm. The outrigger arm is fully reversible, permitting left-hand or right-hand field configuration to adapt to specific room geometry and fixture layouts.
Technical Specifications
| System Attribute | Specification Parameter | Standard & Material Compliance |
|---|---|---|
| Model SKU | G55JCS38 | Ponte Giulio Tracked Product SKU |

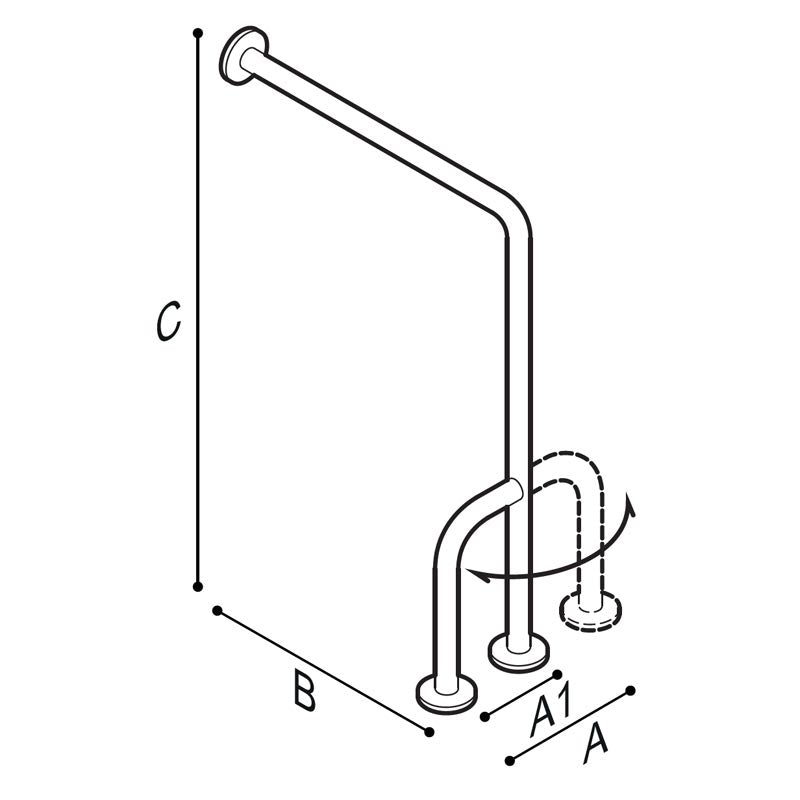

| Overall Envelope Dimensions (A x B x C) | 8.06" Depth x 31.50" Width x 34.50" Height | Rough-In Envelope (8-1/16" x 31-1/2" x 34-1/2") |
| Inter-Axis Dimensions (A1 x C1) | 5.0" Outrigger Offset x 33.0" Height (5" x 33") | Primary Anchorage Center-on-Center Grid |
| Nominal Envelope Profile | 32.0" Width x 33.0" Height Profile | Standard Architectural Layout Footprint |
| Reversible Outrigger Offset | 8.0 Inches Lateral Projection from Main Support | Field Reversible (Left-Hand or Right-Hand Mounting) |
| Metallurgy & Finish | AISI 304 Stainless Steel (Satin Finish - N1) | Non-Rusting Sanitary Structural Alloy |
| Vertical Static Load Rating | 331 lbs (150 kg Vertical Static Load Capacity) | Exceeds ADA 250-lb Structural Requirement |
| Net Tare Weight | 5.84 lbs (2.65 kg) | Solid Commercial Unit Construction |
| Included Hardware | Stainless Steel Fasteners Included | Supplied for Structural Wood Stud Installation |
| Regulatory Standard | ADA / ANSI A117.1 Compliant | Federal Accessibility Standard Certified |
Key Performance & Construction Features
- Dual Wall-to-Floor Structural Anchorage: Transfers vertical and lateral force vectors simultaneously into the wall stud framing and solid floor subfloor for rigid multi-axis stability.
- Reversible 8-Inch Lateral Outrigger Arm: The secondary side support arm is positioned 8 inches out from the primary rail and can be reversed during installation to accommodate left-hand or right-hand room layouts.
- Heavy-Gauge AISI 304 Stainless Steel Construction: Fabricated from 304-grade stainless steel with a mechanical satin finish (N1) to deliver 100% rust-proof performance in high-humidity commercial and residential environments.
- 331-Pound Vertical Static Load Rating: Engineered for structural rigidity, meeting and exceeding federal ADA specifications for accessible support rails.
- Multi-Zone Architectural Versatility: Engineered for installation across water closets, shower enclosures, or transition walkways requiring rigid 90-degree wall-and-floor anchorage.
- Wood Stud Fastening Package Included: Supplied complete with heavy-duty stainless steel mounting fasteners for direct installation into structural wood studs or wall blocking.
Regulatory Compliance & Installation Notes
To ensure full ADA and building code compliance:
- ADA Compliance: When mounted securely into solid wood studs or structural wall blocking and anchored into a solid floor substrate at the correct height, this 90° support bar meets federal ADA specifications for accessible support rails.
- Structural Anchoring Requirement: Wall mounting flanges must be anchored directly into solid wood studs or structural wall blocking, and floor flanges must be anchored into solid subfloor material capable of supporting the rated 331-pound vertical static load.
