Ponte Giulio 28" 30° Door Frame & Entryway Grab Bar - G06JC Series (331 lb Capacity, ADA Compliant)
Ponte Giulio 28" 30° Door Frame & Entryway Grab Bar - G06JC Series (331 lb Capacity, ADA Compliant)
SKU: G06JCL18
- Regular price
- Price: $300.00
- Regular price
- List Price:
- Sale price
- Price: $300.00
- Unit price
- per
Couldn't load pickup availability
PRODUCT DESCRIPTION
The Ponte Giulio 28" 30° Door Frame and Entryway Grab Bar (Series SKUs: G06JCL18 & G06JCR18) is a commercial-grade, fixed-angle support rail engineered specifically for mounting directly into structural door jambs, doorway frames, and entryway transitions leading to exterior steps or garage access points. Manufactured from AISI 304 stainless steel pipe finished with a durable synthetic thermoplastic white powder coating (W2), this 28-inch rail incorporates a fixed 30-degree incline. The specialized mounting geometry allows direct anchorage into standard door trim framing, providing a 331-pound vertical static load capacity along short elevation changes and doorway thresholds.
White Stainless Steel Color.
Technical Specifications
| System Attribute | Specification Parameter | Standard & Material Compliance |
|---|---|---|
| Model SKUs | G06JCL18 (Left Orientation) / G06JCR18 (Right Orientation) | Ponte Giulio Tracked Product SKUs |
| Incline Geometry | 30° Fixed Angular Slope | Engineered for Doorway Incline Steps |

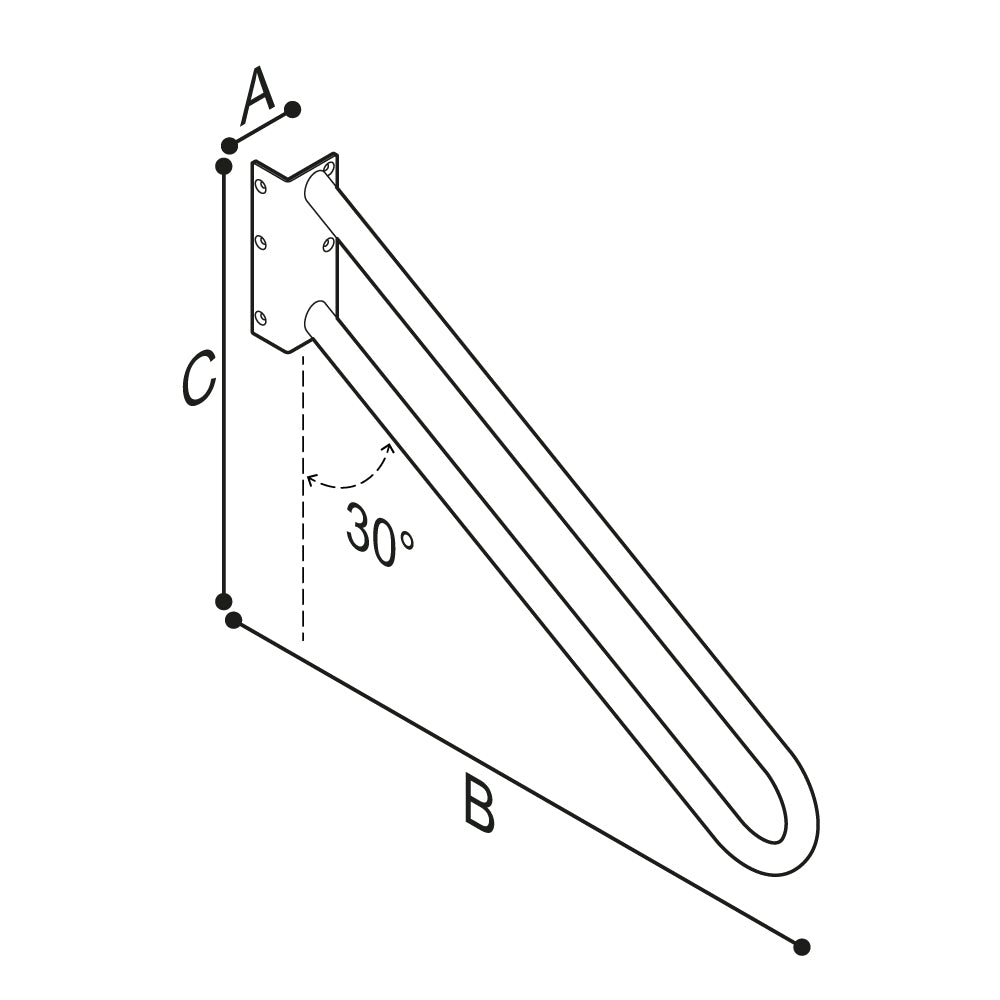

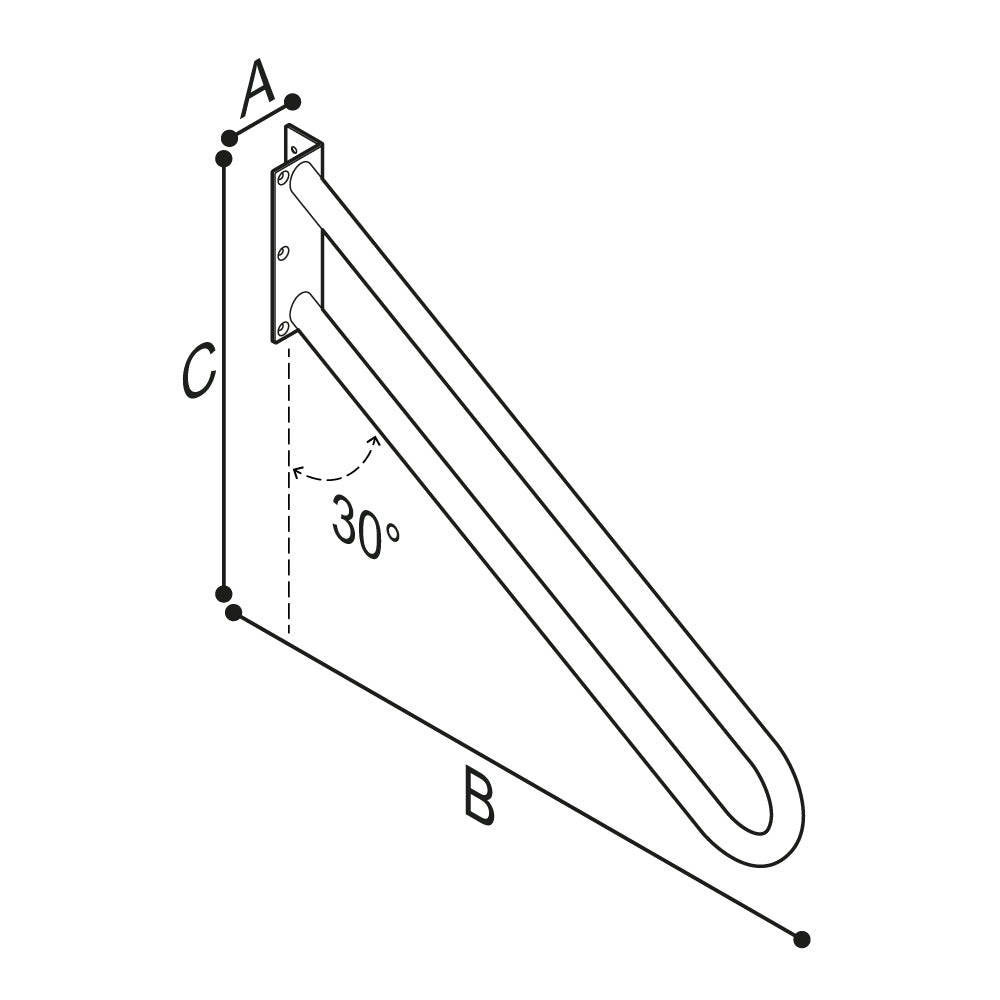

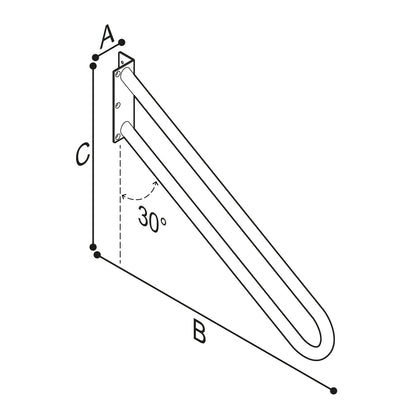

| Overall Envelope Dimensions (A x B x C) | 2.75" Projection x 28.0" Length x 21.63" Height | Rough-In Envelope (2-3/4" x 28" x 21-5/8") |
| Rail Length Profile | 28.0 Inches (711 mm) | Compact Door Jamb Footprint |
| Metallurgy & Core Material | AISI 304 Stainless Steel Pipe | Non-Rusting Structural Alloy Architecture |
| Surface Finish & Coating | Synthetic Thermoplastic Powder Coating | Impact & Chemical Resistant White Finish (W2) |
| Mounting Substrate Target | Structural Door Jambs, Frames, or Wall Studs | Direct Framing Anchor Configuration |
| Vertical Static Load Rating | 331 lbs (150 kg Vertical Static Load Capacity) | Exceeds ADA 250-lb Structural Requirement |
| Net Tare Weight | 5.18 lbs (2.35 kg) | Solid Commercial Unit Construction |
| Included Hardware | Fasteners Included | Supplied for Structural Framing Installation |
| Regulatory Standard | ADA / ANSI A117.1 Compliant | Federal Accessibility Standard Certified |

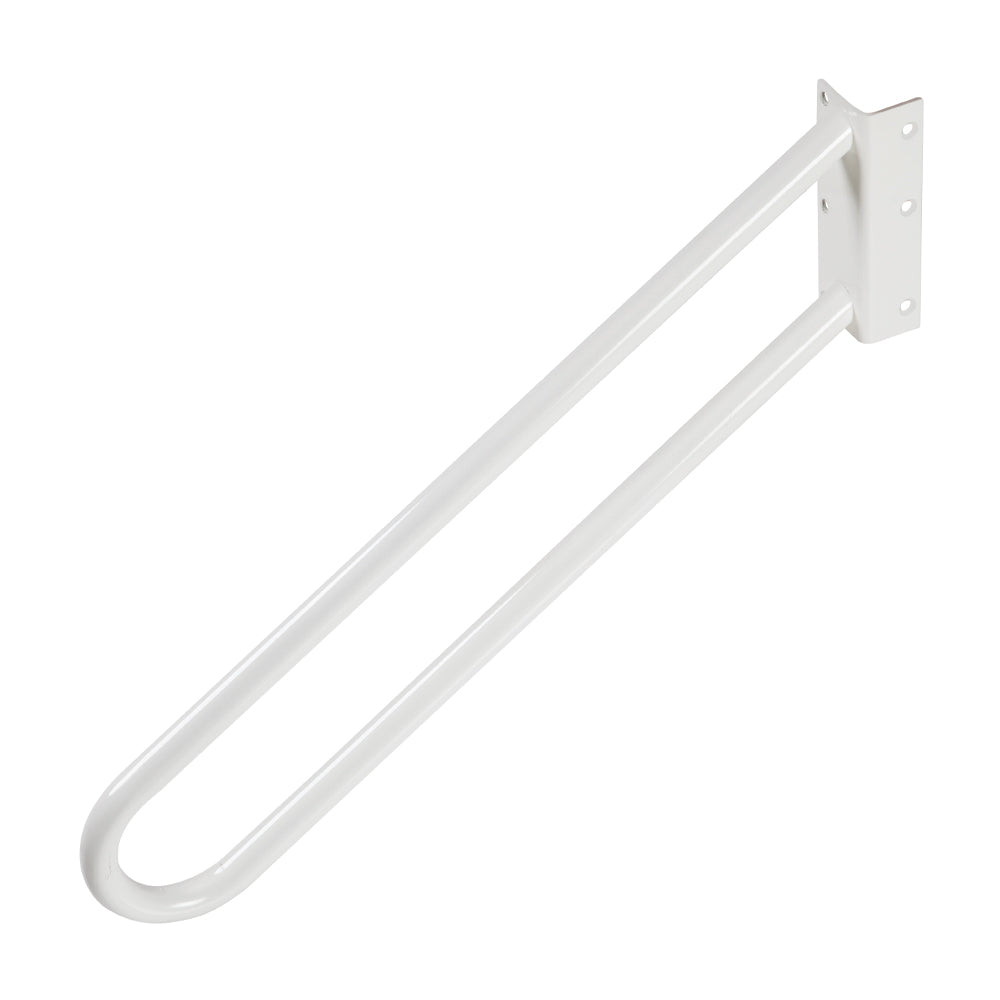

30° Safety fixed Left grab bar

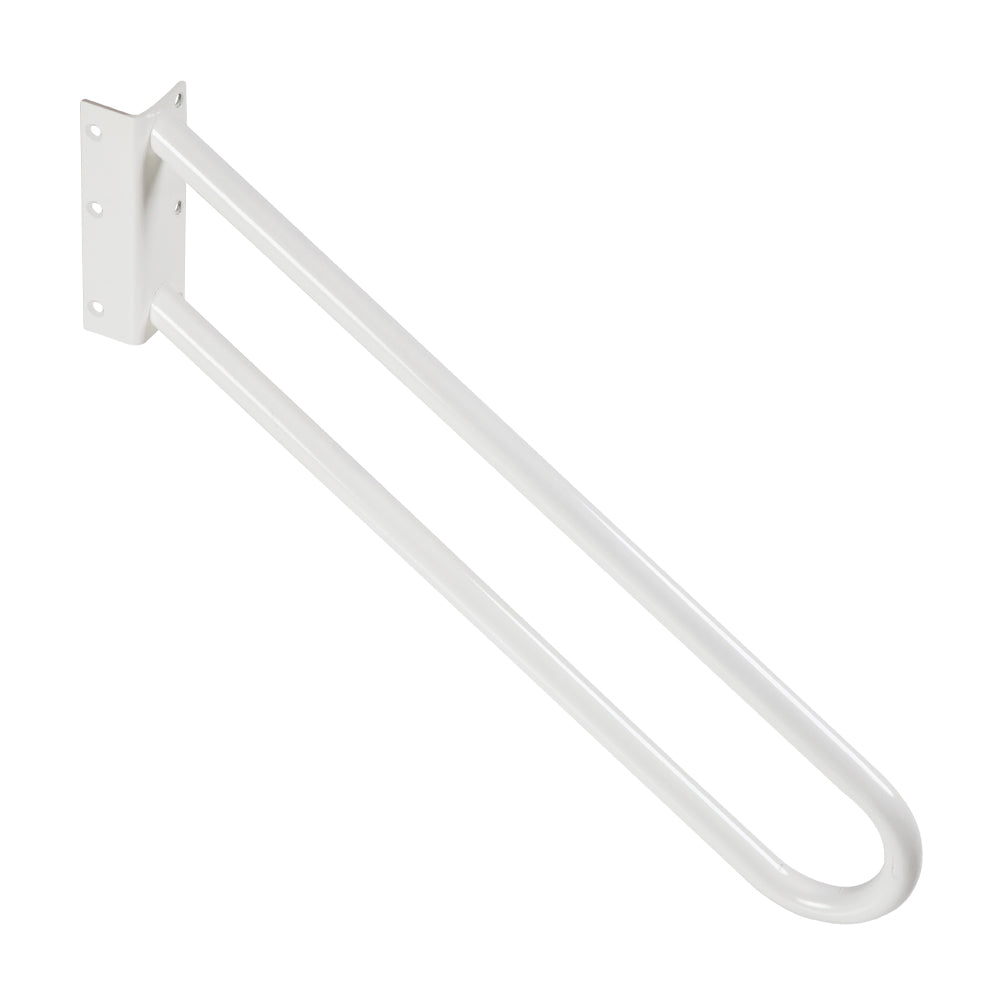

30° Safety fixed Right grab bar
Key Performance & Construction Features
- 30-Degree Fixed Incline Door Framing Geometry: Engineered with an offset 30° angle designed specifically to mount along vertical door jambs and narrow entryway frames adjacent to threshold steps.
- 331-Pound Vertical Static Load Rating: Tested under direct downward vertical static load conditions to ensure structural rigidity and leverage support across step transitions.
- AISI 304 Stainless Steel Pipe Construction: Fabricated from 304-grade stainless steel to ensure 100% rust-proof performance in high-humidity interiors, garage entries, or sheltered exterior doorways.
- Durable Thermoplastic Powder Coating: Coated in a heavy-duty synthetic thermoplastic white powder finish (W2) that offers high impact resistance, chemical durability, and a smooth tactile grip.
- Factory-Specified Left or Right Orientation: Available in Left-Hand (`G06JCL18`) or Right-Hand (`G06JCR18`) configurations to align precisely with specific door swing directions and jamb mounting points.
- Compact 2.75" Wall Projection Profile: Projects under 3 inches from the door frame surface, preserving doorway clearance and transit width.
Regulatory Compliance & Installation Notes
To ensure full ADA and building code compliance:
- ADA Compliance: When mounted securely into solid wood door framing, door jamb studs, or structural wall blocking at the correct height, this 30° support rail meets federal ADA specifications for accessible support rails.
- Structural Anchoring Requirement: Mounting flanges must be anchored directly into solid wood door jambs, structural door headers, or wall blocking capable of supporting the rated 331-pound vertical static load.
