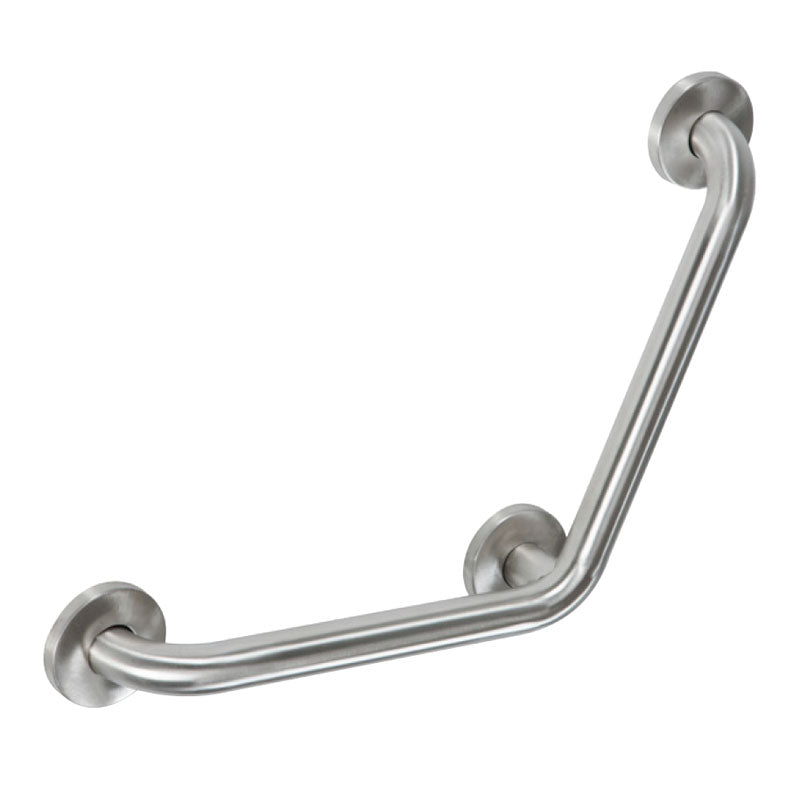

Ponte Giulio 110° Angled Stainless Steel Grab Bar with Center Flange - G55JAS14 (600 lb Capacity, ADA Compliant)
Ponte Giulio 110° Angled Stainless Steel Grab Bar with Center Flange - G55JAS14 (600 lb Capacity, ADA Compliant)
SKU: G55JAS14
- Regular price
- Price: $60.00
- Regular price
- List Price:
- Sale price
- Price: $60.00
- Unit price
- per
10% off | Coupon Code: AIDE | Ends:
Couldn't load pickup availability
PRODUCT DESCRIPTION
The Ponte Giulio 110° Angled Stainless Steel Grab Bar with Center Flange (Model SKU: G55JAS14) is a commercial-grade, multi-axis wall-mounted support rail engineered specifically for universal design developments, healthcare facilities, public restrooms, and ADA-compliant installations. Manufactured from 1.2 mm thick (18-gauge) AISI 304 satin-brushed stainless steel with a standard 1.25-inch outer diameter, this structural rail features a 110-degree angled contour reinforced by a third mounting flange located at the elbow joint. This mid-span flange eliminates mechanical deflection under dynamic weight bearing, increasing total static load capacity to 600 lbs while concealed escutcheon plates shield structural fasteners from moisture exposure.
Technical Specifications
| System Attribute | Specification Parameter | Standard & Material Compliance |
|---|---|---|
| Model SKU | G55JAS14 (G55JAS14N1) | Ponte Giulio Tracked Product SKU |
| Nominal Footprint Profile | 12" x 12" Angled Geometry (110° Arc Contour) | Standard Architectural Layout Footprint |

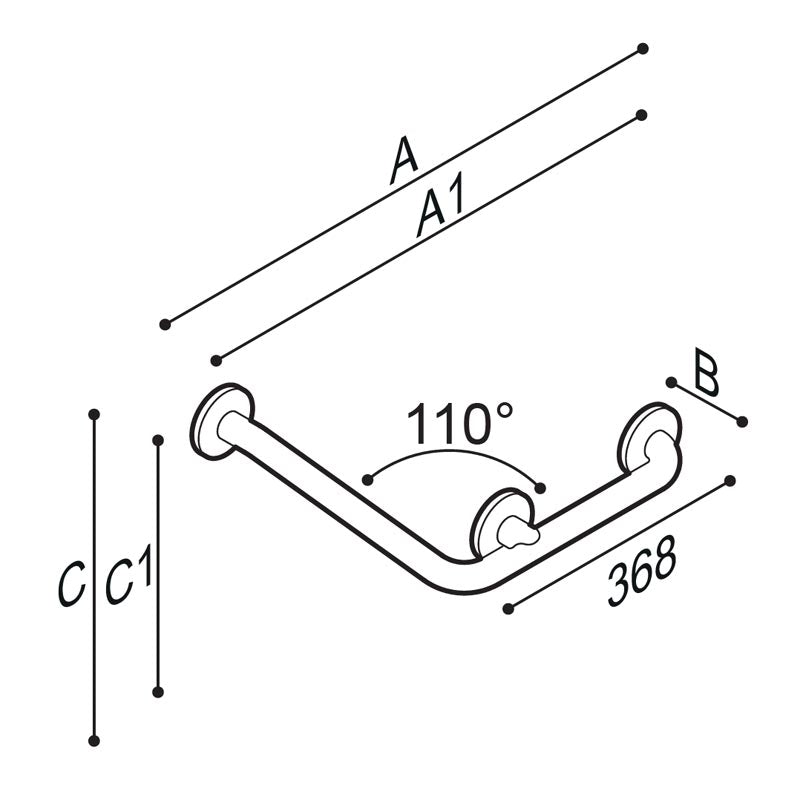

| Overall Envelope Dimensions (A x B x C) | 19.19" Length x 2.75" Projection x 14.38" Height | Rough-In Envelope (19-3/16" x 2-3/4" x 14-3/8") |
| Inter-Axis Dimensions (A1 x C1) | 16.13" Horizontal x 11.25" Vertical (410 x 286 mm) | Primary Anchorage Center-on-Center Grid |
| Rail Outer Diameter | 1.25 Inches (32 mm) | ADA Standard Ergonomic Grip Clearance |
| Wall Thickness & Metallurgy | 1.2 mm Thickness (18 Gauge) AISI 304 Stainless Steel | Non-Rusting Sanitary Structural Alloy |
| Surface Finish | Satin Brushed Stainless Steel (N1 Finish) | Corrosion-Resistant Mechanical Satin Finish |
| Mounting Flange Architecture | 3 Concealed Flanges (Includes Elbow Joint Support) | 3-Point Anchoring System for Mid-Span Reinforcement |
| Wall Clearance Space | 1.5 Inches (Clear Space Between Wall & Rail) | Mandatory ADA Wall Clearance Requirement |
| Static Load Ratings | 600 lbs Center Static Load / 331 lbs Vertical Rating | Exceeds ADA 250-lb Structural Requirement |
| Net Tare Weight | 2.65 lbs (1.20 kg) | Solid Commercial Unit Construction |
| Included Hardware | Stainless Steel Fasteners Included | Supplied for Structural Wood Stud Mounting |
| Regulatory Standard | ADA / ANSI A117.1 Compliant | Federal Accessibility Standard Certified |
Key Performance & Construction Features
- Reinforced 3rd Center Support Flange: Built with an intermediate mounting flange at the 110-degree elbow joint that anchors directly into wall backing, eliminating mid-span rail flex and elevating vertical static load capacity to 600 lbs.
- 110° Ergonomic Angled Geometry: Provides multi-angle hand placement along both horizontal and inclined planes, facilitating smooth arm leverage during movement transitions.
- Heavy-Gauge AISI 304 Stainless Steel Construction: Fabricated from 18-gauge (1.2 mm thick) 304-grade stainless steel with a mechanical satin finish (N1), ensuring 100% rust-proof performance in high-humidity wet-room environments.
- 1.25" Ergonomic Outer Diameter: Standardized 32 mm outer tubular profile satisfies federal ADA guidelines for tactile grip clearance.
- Concealed Stainless Steel Flange Escutcheons: All three mounting base plates are covered beneath clean escutcheon plates without visible screws, protecting structural fasteners from direct moisture exposure.
- Wood Stud Fastening Package Included: Supplied complete with heavy-duty stainless steel mounting fasteners for direct installation into structural wood studs or wall blocking.
Regulatory Compliance & Installation Notes
To ensure full ADA and building code compliance:
- ADA Compliance: When mounted securely into solid wood studs or structural wall blocking at the correct height, this 3-flange angled grab bar meets federal ADA specifications for accessible support rails.
- Structural Anchoring Requirement: All three wall mounting flanges—including the center elbow flange—must be anchored directly into solid wood studs or structural wall blocking capable of supporting the rated static load capacity.
