Ponte Giulio Bathtub Folding Bench with Antimicrobial Nylon Seat - G02JDS18 / G02JDS19 (452 lb Capacity, ADA Compliant)
Ponte Giulio Bathtub Folding Bench with Antimicrobial Nylon Seat - G02JDS18 / G02JDS19 (452 lb Capacity, ADA Compliant)
SKU: G02JDS18
- Regular price
- Price: $609.60
- Regular price
- List Price:
- Sale price
- Price: $609.60
- Unit price
- per
Couldn't load pickup availability
PRODUCT DESCRIPTION

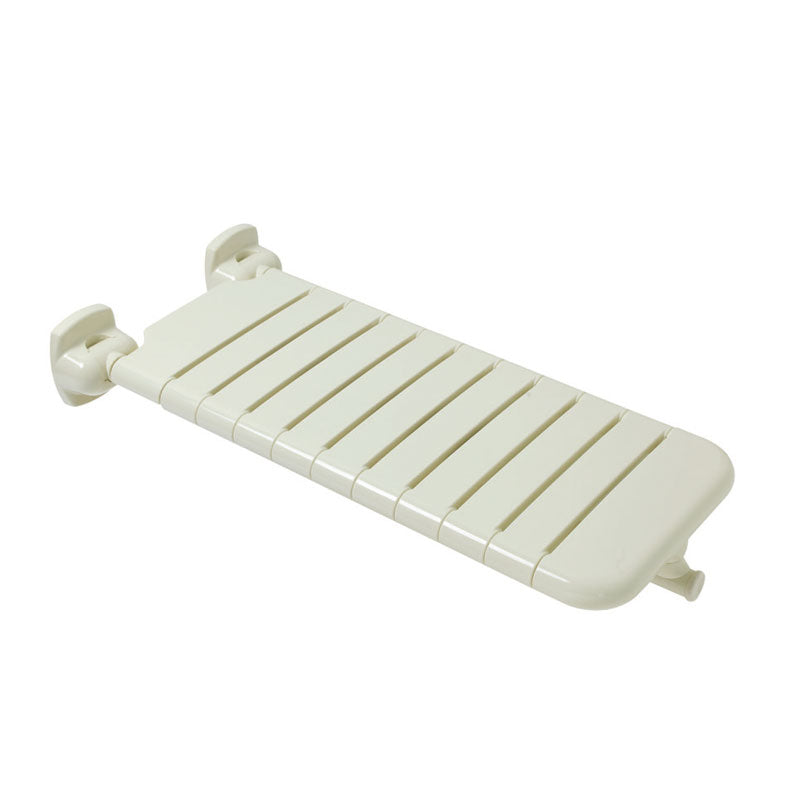

The Ponte Giulio Bathtub Folding Bench with Antimicrobial Nylon Seat (Series SKUs: G02JDS18 & G02JDS19) is a commercial-grade, wall-mounted bathtub seating solution engineered specifically for alcove tub configurations, universal design residential developments, and commercial ADA-compliant rest areas. Designed to span across standard tub enclosures, this bench features a 4.5-inch structural foot that rests directly on the outer tub rim, distributing 50% of the weight load to the tub structure. The seating surface is constructed from polished antimicrobial polyamide (nylon) slats over a vinyl-coated structural steel core. An integrated tension friction hinge holds the bench securely in a vertical stowed position when not in use.
Technical Specifications
| System Attribute | Specification Parameter | Standard & Material Compliance |
|---|---|---|
| Model SKUs | G02JDS18 (27" Nominal) / G02JDS19 (32" Nominal) | Ponte Giulio Tracked Product SKUs |

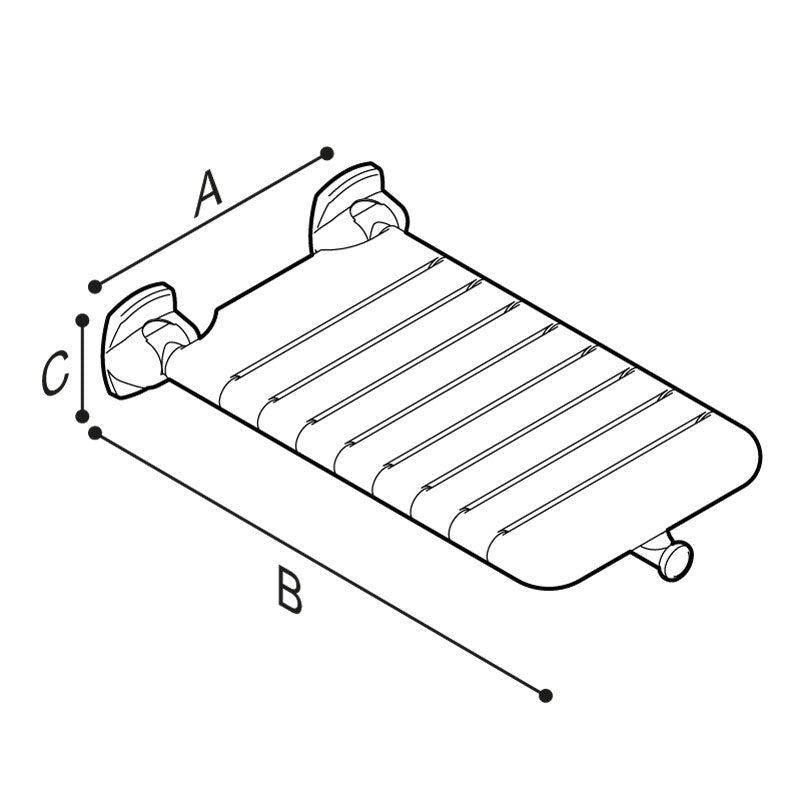

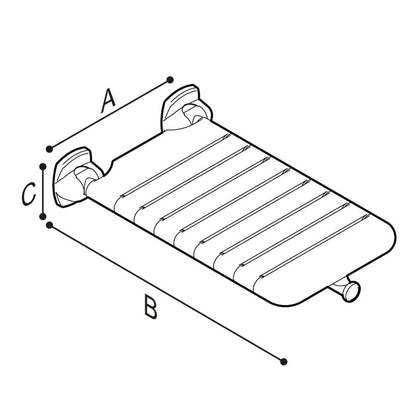

| G02JDS18 Envelope (D x W x H) | 17.63" Depth x 27.94" Width x 5.13" Height | Rough-In Envelope (17-5/8" x 27-15/16" x 5-1/8") |
| G02JDS19 Envelope (D x W x H) | 17.63" Depth x 31.88" Width x 5.13" Height | Rough-In Envelope (17-5/8" x 31-7/8" x 5-1/8") |
| Seating Depth Surface | 15.0 Inches (381 mm Actual) | Standard Bathtub Transfer Footprint |
| Tub Rim Support Foot | 4.5-Inch Contoured Resting Foot | Transfers 50% Load to Outer Tub Wall |
| Mounting Flange Height | 5.0 Inches (5.13" / 130 mm Overall Profile) | Heavy-Duty Wall Anchorage Plates |
| Seat Slat Material | Polished Antimicrobial Polyamide (Nylon) | Non-Porous, Warm-Touch Synthetic Slats |
| Internal Chassis & Flanges | Stainless Steel Core + Vinyl-Coated Steel | Corrosion-Resistant Structural Assembly |
| Hinge Mechanism | Controlled Friction Tension Hinge | Secures Bench Upright When Stowed |
| Vertical Static Load Rating | 452 lbs (205 kg Vertical Static Load Capacity) | Exceeds ADA 250-lb Structural Requirement |
| Net Weight | G02JDS18: 14.77 lbs | G02JDS19: 15.25 lbs | Solid Heavy-Duty Unit Construction |
| Included Hardware | Stainless Steel Fasteners Included | Supplied for Structural Wood Stud Mounting |
| Regulatory Standard | ADA / ANSI A117.1 Compliant | Federal Accessibility Standard Certified |
Key Performance & Construction Features
- 452-Pound Vertical Static Load Rating: Engineered for optimal weight distribution—the wall anchors support 50% of the vertical load while the 4.5-inch integrated foot transfers the remaining 50% to the outer bathtub rim.
- Antimicrobial Polyamide (Nylon) Slats: Smooth, warm-touch nylon seating surface with built-in antimicrobial properties to permanently inhibit bacterial and fungal growth.
- Tension Friction Control Hinge: Internal friction mechanism prevents the seat from dropping unexpectedly, locking the bench flat against the wall when folded upward.
- Vinyl-Coated Stainless Steel Chassis: Structural internal framework constructed from stainless steel and heavy-gauge steel covered in a smooth, non-porous vinyl protective layer.
- Dual Width Sizing Options: Available in 27-15/16" width (G02JDS18) and 31-7/8" width (G02JDS19) to fit most standard alcove bathtub dimensions.
- Wood Stud Mounting Package Included: Supplied complete with heavy-duty structural mounting hardware for direct structural wood stud or wall blocking installation.
Regulatory Compliance & Installation Notes
To ensure full ADA and building code compliance:
- ADA Compliance: When mounted securely into solid wood studs or approved structural wall blocking at the correct height, this bathtub bench meets federal ADA specifications for bathtub seating and load capacity.
- Structural Anchoring Requirement: Wall mounting flanges must be anchored directly into solid wood studs or structural wall blocking capable of supporting the rated 452-pound vertical static load.
