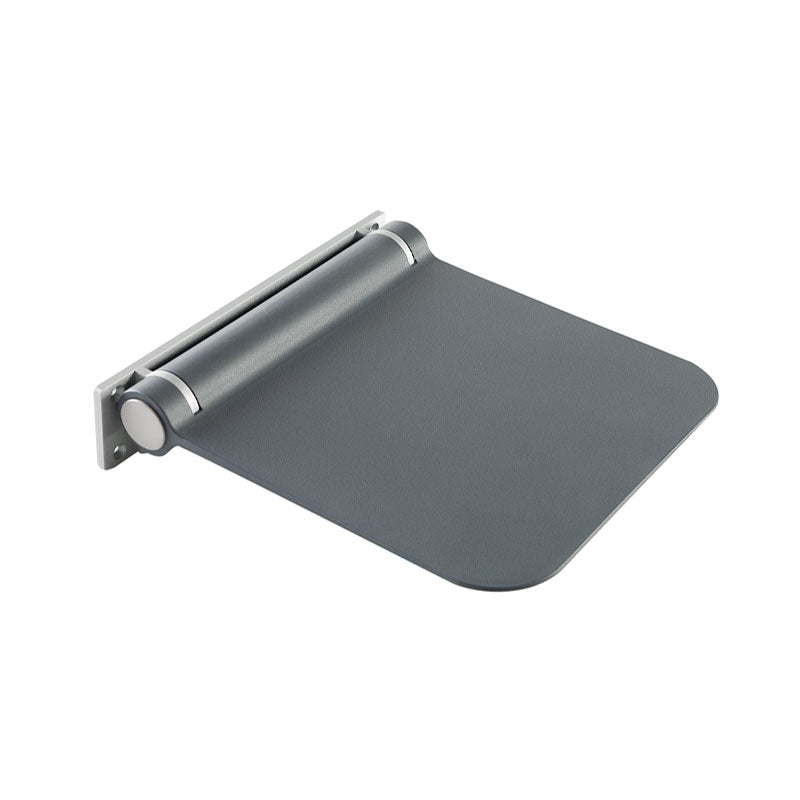

Ponte Giulio HUG 18" Folding Polyurethane Shower Seat - G12JDS10 (450 lb Capacity, ADA Compliant)

Ponte Giulio HUG 18" Folding Polyurethane Shower Seat - G12JDS10 (450 lb Capacity, ADA Compliant)

SKU: G12JDS10

Price: $821.40
List Price:
Price: $821.40
10% off | Coupon Code: AIDE | Ends:
View Cart

The Ponte Giulio HUG Folding Polyurethane Shower Seat (Model SKU: G12JDS10) is a commercial-grade, wall-mounted bather seating solution engineered specifically for residential retrofits, universal design developments, and commercial ADA-compliant restrooms. Featuring a 450-pound vertical static load capacity, this folding bench combines a textured matte polyurethane (PUR) elastomeric cushion with a 100% AISI 304 stainless steel structural chassis and mounting plates. The wall mounting flanges are engineered with a 16-inch center-on-center spacing for direct alignment with standard 16-inch wall studs, or 14.25-inch center-on-center spacing for structural blocking installations.

Technical Specifications

System Attribute Specification Parameter Standard & Material Compliance
Model SKU G12JDS10 Ponte Giulio Tracked Product SKU

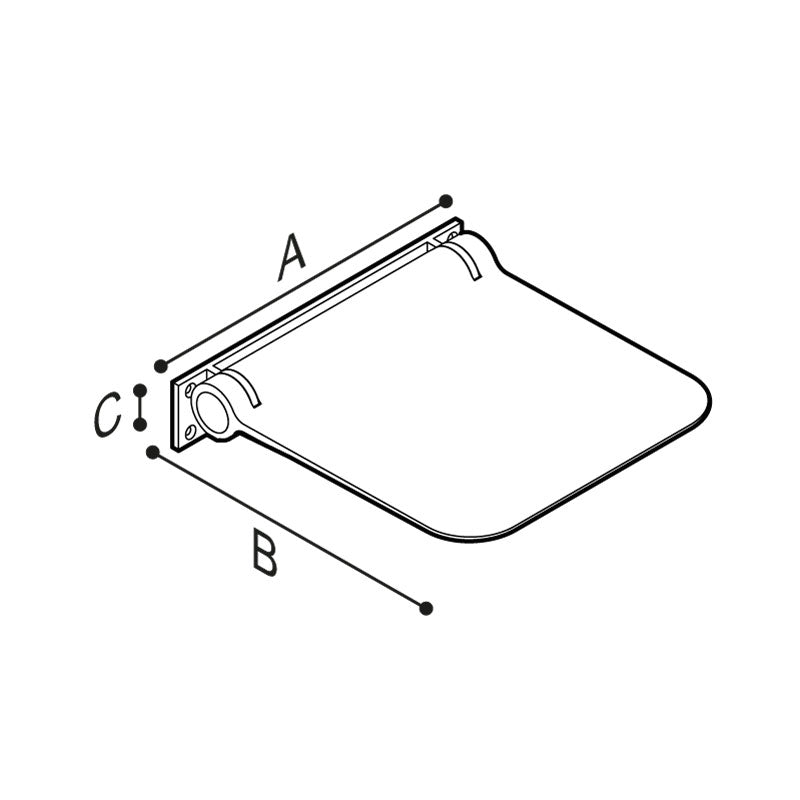

Overall Envelope Dimensions (D x W x H) 18.13" Depth x 17.69" Width x 4.31" Height Rough-In Envelope (17-11/16" x 18-1/8" x 4-5/16")
Seat Surface Dimensions 16.5" Width x 18.0" Depth Standard Bather Seating Area Footprint
Mounting Flange Spacing 16.0" On Center (Studs) / 14.25" On Center (Blocking) Dual Attachment Configuration Options
Seat Cushion Material & Finish High-Density Matte Polyurethane (PUR / PU) Non-Porous, High-Traction Elastomeric Surface
Structural Frame & Plates 100% AISI 304 Stainless Steel & Matte Aluminum Rust-Proof Pinch-Point-Free Structural Core
Modular System Compatibility HUG Collection Modular Backrests Accepts Optional Backrest (G12JDS06) / Arms (G12JDS07)
Vertical Static Load Rating 450 lbs (204.5 kg Vertical Static Load Capacity) Exceeds ADA 250-lb Structural Requirement
Net Tare Weight 11.9 lbs (5.4 kg) Solid Heavy-Duty Unit Construction
Warranty Lifetime Limited Manufacturer Warranty Manufacturer Backed and Certified
Regulatory Standard ADA / ANSI A117.1 Compliant Federal Accessibility Standard Certified

Key Performance & Construction Features

  • 450-Pound Vertical Static Load Rating: Engineered for extreme structural rigidity, exceeding standard ADA load capacity requirements for safe bather seating.
  • High-Traction Polyurethane (PUR) Cushion: The matte PUR surface provides a warm-touch tactile feel, low thermal conductivity, and a textured finish that maintains high surface friction under wet conditions.
  • Pinch-Point-Free Stainless Steel Chassis: Built from 100% AISI 304 stainless steel with smooth pivot joints engineered to eliminate mechanical pinch points during folding operations.
  • Dual Mounting Flange Alignment: Flanges feature dual hole patterns spaced at 16 inches center-on-center for direct structural anchoring into standard 16-inch wall studs, or 14.25 inches center-on-center for wall blocking installations.
  • Modular HUG Collection Compatibility: Designed for standalone use or expansion with optional HUG backrest accessories, including the HUG Backrest (Model SKU: G12JDS06) or HUG Backrest with Integrated Arms (Model SKU: G12JDS07).
  • Space-Saving Fold-Up Profile: Rotates upward flat against the wall tile when stowed, projecting under 4.5 inches to maximize standing room inside the shower enclosure.

Regulatory Compliance & Installation Notes

To ensure full ADA and building code compliance:

  • ADA Compliance: When mounted securely into solid wood studs or structural wall blocking at the correct height, this shower seat meets federal ADA specifications for shower seating and load capacity.
  • Structural Anchoring Requirement: Wall mounting flanges must be anchored directly into solid wood studs or structural wall blocking capable of supporting the rated 450-pound vertical static load. Fasteners should be selected by the installer based on specific substrate composition.
