Ponte Giulio 31" Bathtub Folding Bench with HPL Top - G25JDS19 (450 lb Capacity, ADA Compliant)
Ponte Giulio 31" Bathtub Folding Bench with HPL Top - G25JDS19 (450 lb Capacity, ADA Compliant)
SKU: G25JDS19
- Regular price
- Price: $556.20
- Regular price
- List Price:
- Sale price
- Price: $556.20
- Unit price
- per
Couldn't load pickup availability
PRODUCT DESCRIPTION

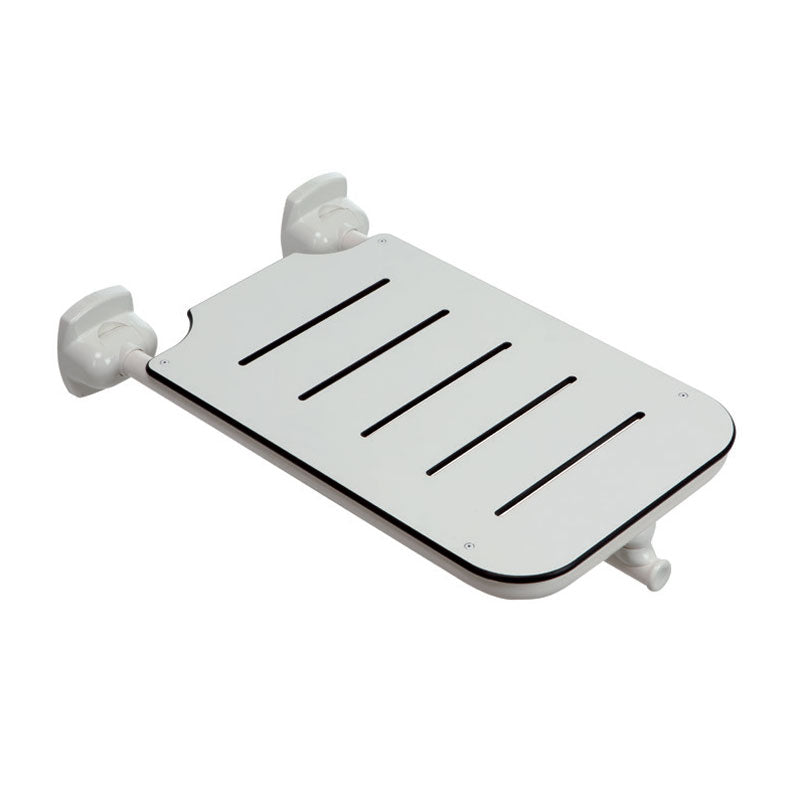

The Ponte Giulio 31" Bathtub Folding Bench with HPL Top (Model SKU: G25JDS19) is a commercial-grade, wall-mounted bathtub seating solution engineered specifically for 30-inch to 32-inch alcove tub configurations, universal design residential developments, and commercial ADA-compliant rest areas. Designed to span across standard tub enclosures, this folding bench combines a 10 mm thick High Pressure Laminate (HPL / Phenolic) seat surface with a heavy-duty stainless steel internal chassis. The structural frame is enclosed in a warm-touch antimicrobial vinyl coating incorporating BioCote® silver ion technology. An integrated internal tension hinge controls the folding motion, securing the bench flat against the wall when stowed.
Technical Specifications
| System Attribute | Specification Parameter | Standard & Material Compliance |
|---|---|---|
| Model SKU | G25JDS19 | Ponte Giulio Tracked Product SKU |

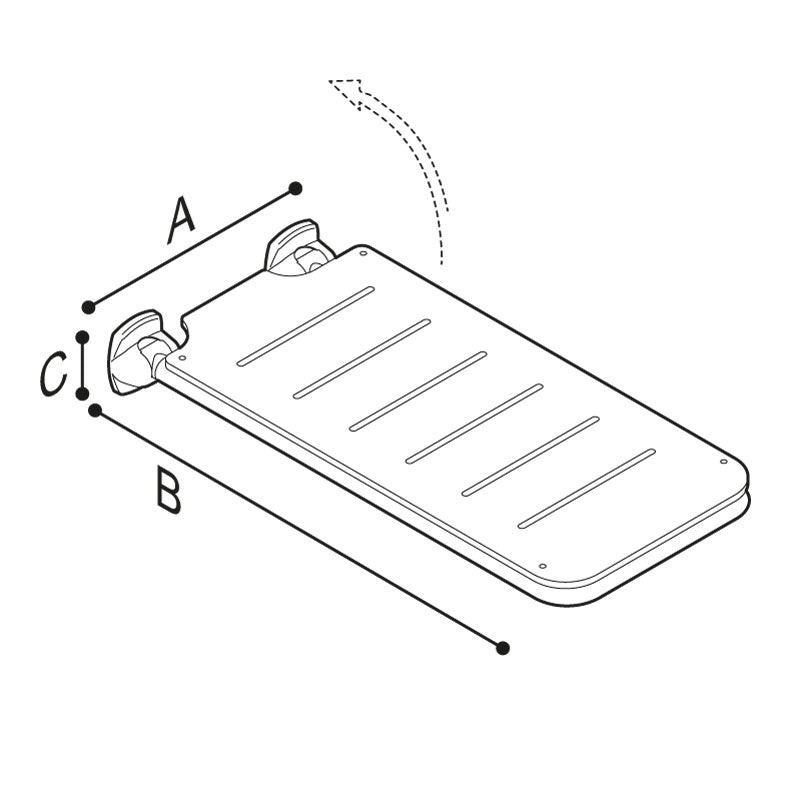

| Overall Envelope Dimensions (D x W x H) | 18.75" Depth x 31.13" Width x 5.13" Height | Rough-In Envelope (18-3/4" x 31-1/8" x 5-1/8") |
| Bathtub Compatibility | Fits Standard 30" to 32" Bathtubs | Alcove Tub Width Span Footprint |
| Seating Depth Surface | 16.0 Inches (15.94" / 405 mm Actual) | Standard Bathtub Transfer Footprint |
| Mounting Flange Height | 5.0 Inches (5.13" / 130 mm Overall Profile) | Heavy-Duty Wall Anchorage Plates |
| Seat Top Material & Finish | 10 mm High Pressure Laminate (HPL / Phenolic) | Non-Porous White with Speckles Top (N1) |
| Frame Core & Coating | AISI 304 Stainless Steel Core + 3mm Vinyl | Corrosion-Resistant Structural Core Assembly |
| Hygiene Technology | BioCote® Silver Ion Antimicrobial Coating | Inhibits Bacterial Growth up to 99.9% |
| Hinge Mechanism | Controlled Friction Tension Hinge | Prevents Uncontrolled Bench Dropping |
| Vertical Static Load Rating | 450 lbs (204.5 kg Vertical Static Load Capacity) | Exceeds ADA 250-lb Structural Requirement |
| Net Weight | 15.43 lbs (7.0 kg) | Solid Heavy-Duty Unit Construction |
| Included Hardware | Stainless Steel Fasteners Included | Supplied for Structural Wood Stud Mounting |
| Regulatory Standard | ADA / ANSI A117.1 Compliant | Federal Accessibility Standard Certified |
Key Performance & Construction Features
- 450-Pound Vertical Static Load Rating: Engineered for structural rigidity, allowing the 31.13-inch bench platform to span across standard 30" to 32" bathtub alcoves while meeting commercial accessibility standards.
- BioCote® Silver Ion Antimicrobial Protection: Integrated directly into the 3 mm exterior vinyl coating, BioCote® technology permanently inhibits the growth of bacteria, molds, and fungi by up to 99.9%.
- 10mm High-Pressure Laminate (HPL) Top: The non-porous, warm-touch phenolic surface in White with Speckles resists scratching, impact, mold, and harsh sanitation chemicals.
- Internal AISI 304 Stainless Steel Frame: The structural skeleton is fabricated from 304-grade stainless steel to ensure complete rust resistance in wet environments.
- Controlled Friction Tension Hinge: Features an internal friction-hinge mechanism that holds the bench flat against the wall tile when stowed and controls the pivot motion during deployment.
- Wood Stud Mounting Package Included: Supplied complete with heavy-duty structural mounting hardware for direct structural wood stud or wall blocking installation.
Regulatory Compliance & Installation Notes
To ensure full ADA and building code compliance:
- ADA Compliance: When mounted securely into solid wood studs or approved structural wall blocking at the correct height, this bathtub bench meets federal ADA specifications for bathtub seating and load capacity.
- Structural Anchoring Requirement: Wall mounting flanges must be anchored directly into solid wood studs or structural wall blocking capable of supporting the rated 450-pound vertical static load.
