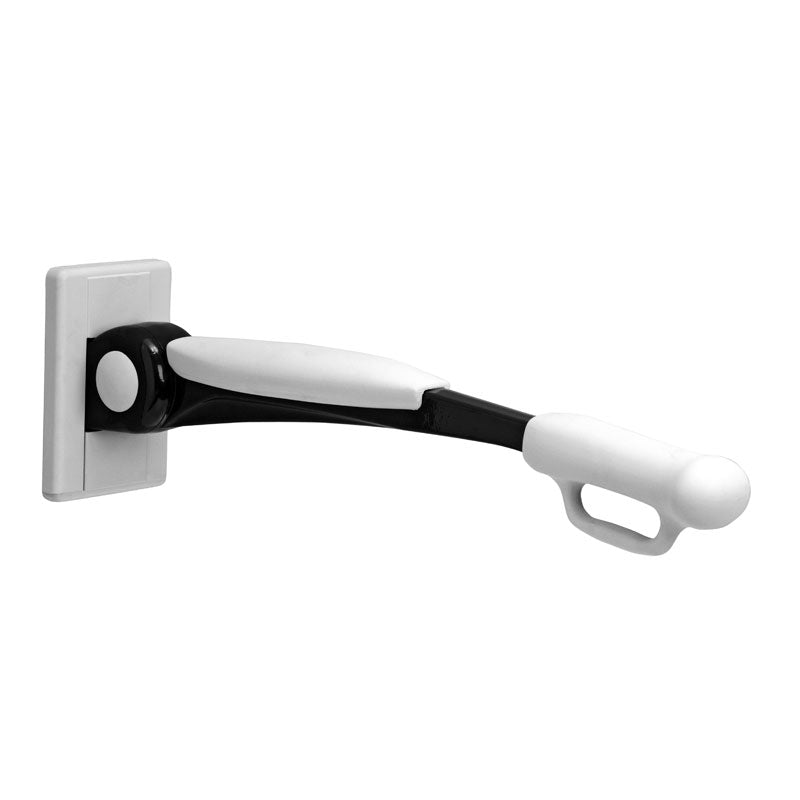

Ponte Giulio 30" Folding Grab Bar with Polyurethane Grip - G12JCS14 (ADA Compliant)

Ponte Giulio 30" Folding Grab Bar with Polyurethane Grip - G12JCS14 (ADA Compliant)

SKU: G12JCS14

Price: $210.00
List Price:
Price: $210.00
10% off | Coupon Code: AIDE | Ends:
View Cart

The Ponte Giulio Folding Grab Bar with Polyurethane Grip (SKU: G12JCS14) is a commercial-grade, space-saving drop-down safety rail engineered specifically for accessible toilet stalls, senior living facilities, and residential ADA-compliant bath retrofits. Featuring a 30-inch folding arm (29.94 inches actual projection) with an aluminum structural chassis, this rail folds vertically against the wall when not in use to optimize lateral transfer clearance. The armrest grip and mounting flange cover are constructed from matte-finish polyurethane (PUR) for a warm, high-traction tactile surface.

Technical Specifications

System Attribute Specification Parameter Standard & Material Compliance
Model SKU G12JCS14 Ponte Giulio Tracked Product SKU
Arm Projection Length 30 Inches (29.94" / 760 mm actual) Standard Accessible Water Closet Clearance
Mounting Flange Dimensions 9.06" Height x 5.88" Width Heavy-Duty Wall Anchor Plate Profile
Structural Chassis Material Polished Aluminum High-Strength, Corrosion-Resistant Alloy
Grip & Flange Cover Material Matte Polyurethane (PUR / PU) Warm-Touch, High-Traction Elastomer
Net Weight 12.13 lbs (5.5 kg) Solid Commercial Construction
Vertical Load Capacity 441 lbs (200 kg Vertical Rating) Exceeds ADA 250-lb Structural Requirement
Flange & Grip Color Standard White Contrast Arm Colors Available
Included Hardware Heavy-Duty Mounting Screws Supplied for Structural Wood Stud Installation
Regulatory Standard ADA / ANSI A117.1 Compliant Federal Accessibility Standard Certified

Key Performance & Construction Features

  • Space-Saving Vertical Fold Mechanism: The 30-inch arm smoothly rotates upward 90 degrees against the wall when not in use, creating unimpeded side clearance for wheelchair-to-toilet lateral transfers.
  • Warm-Touch Polyurethane (PUR) Grip: Enclosed in a matte polyurethane coating that provides a soft, warm tactile grip compared to cold metal surfaces while maintaining high slip-resistance in wet environments.
  • Polished Aluminum Chassis: Combines structural rigidity with corrosion-resistant performance engineered for high-humidity commercial restrooms and wet-room environments.
  • Concealed Mounting Plate: Equipped with a 9-inch by 6-inch polyurethane escutcheon cover that conceals installation fasteners, protecting structural mounting plates from moisture ingress.
  • Wood Stud Mounting Package Included: Supplied with heavy-duty structural mounting screws rated for installation directly into solid wood studs or wall blocking.

Regulatory Compliance & Installation Notes

To ensure full ADA and building code compliance:

  • ADA Compliance: When installed into solid wood studs or approved structural wall blocking in accordance with manufacturer instructions, this folding grab bar satisfies federal ADA requirements for structural load capacity and clearance.
  • Structural Anchoring Requirement: Folding grab bars exert high leverage forces on wall anchorage. Mounting hardware must be anchored directly into structural wood studs or reinforced wall blocking capable of supporting the rated 441-pound vertical load.
