Ponte Giulio Integra Flangeless Straight Grab Bar - G18XAS Series (331 lb Capacity, ADA Compliant)

Ponte Giulio Integra Flangeless Straight Grab Bar - G18XAS Series (331 lb Capacity, ADA Compliant)

SKU: G18XAS01

Price: $208.00
List Price:
Price: $208.00
10% off | Coupon Code: AIDE | Ends:
Inter-axis Length
View Cart

The Ponte Giulio Integra Flangeless Straight Safety Grab Rail Series (Model SKUs: G18XAS01 through G18XAS09) is a commercial-grade wall-mounted support rail system engineered specifically for universal design developments, luxury shower enclosures, healthcare facilities, and ADA-compliant installations. Manufactured from 1.25-inch outer diameter (ø 32 mm) AISI 304 stainless steel, this architectural series features a flangeless mounting profile anchored via 32 mm cylindrical end pegs. Each peg mount locks securely into place using a concealed set key, delivering a clean aesthetic without traditional escutcheon plates while maintaining 331 pounds of vertical and horizontal static load capacity.

Technical Specifications & Sizing Matrix

Note: Due to the placement of the cylindrical peg mounts, the overall end-to-end rail length measures approximately 4.125 inches longer than the stated center-to-center inter-axis mounting dimension.

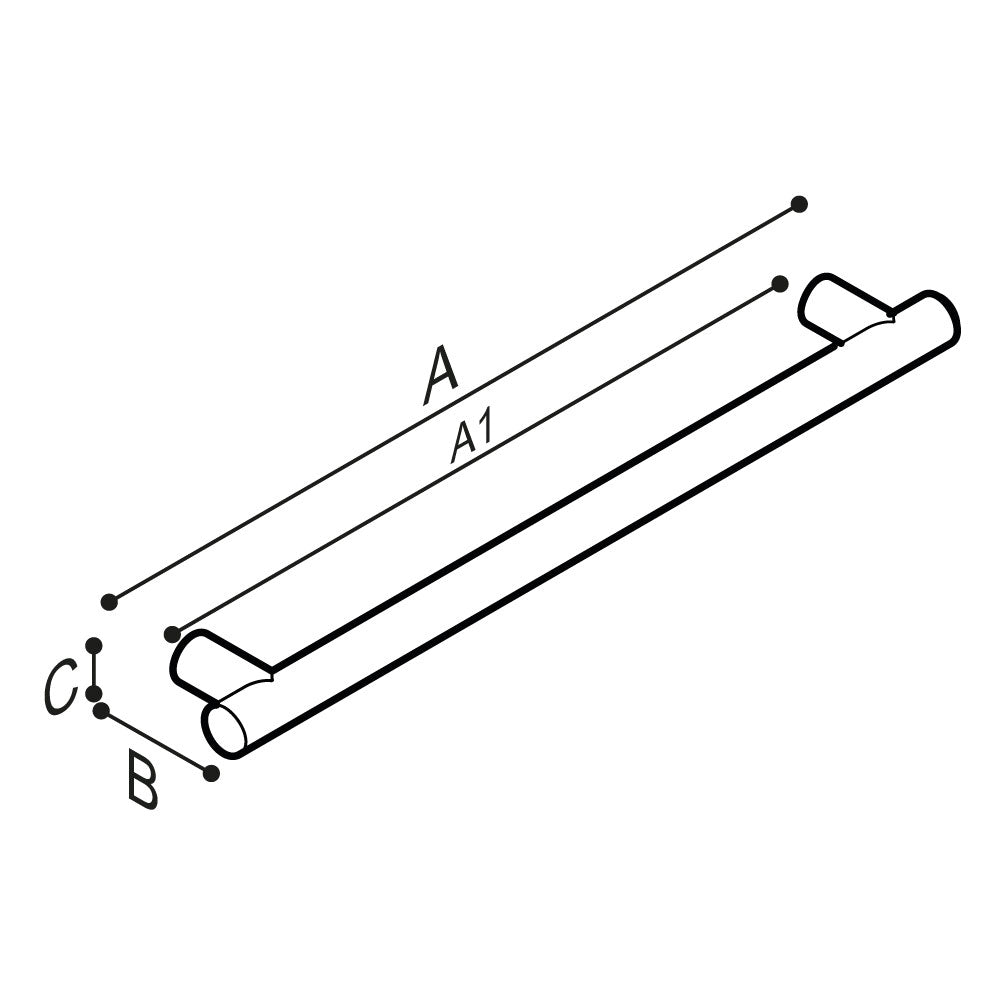

Model SKU Inter-Axis Spacing (A1) Overall Length Profile (A) Projection & Diameter (B x C) Static Load Rating (Vert / Horiz)

G18XAS01

 12.0 Inches (305 mm) 16.125 Inches (16 1/8" / 410 mm) 2.75" Projection x 1.25" Diameter 331 lbs / 331 lbs
G18XAS02 16.0 Inches (406 mm) 20.125 Inches (20 1/8" / 511 mm) 2.75" Projection x 1.25" Diameter 331 lbs / 331 lbs
G18XAS03 18.0 Inches (457 mm) 22.125 Inches (22 1/8" / 562 mm) 2.75" Projection x 1.25" Diameter 331 lbs / 331 lbs
G18XAS04 24.0 Inches (610 mm) 28.125 Inches (28 1/8" / 714 mm) 2.75" Projection x 1.25" Diameter 331 lbs / 331 lbs
G18XAS06 32.0 Inches (813 mm) 36.125 Inches (36 1/8" / 918 mm) 2.75" Projection x 1.25" Diameter 331 lbs / 331 lbs
G18XAS07 36.0 Inches (914 mm) 40.125 Inches (40 1/8" / 1019 mm) 2.75" Projection x 1.25" Diameter 331 lbs / 331 lbs
G18XAS08 42.0 Inches (1067 mm) 46.125 Inches (46 1/8" / 1171 mm) 2.75" Projection x 1.25" Diameter 331 lbs / 331 lbs
G18XAS09 48.0 Inches (1219 mm) 52.125 Inches (52 1/8" / 1324 mm) 2.75" Projection x 1.25" Diameter 331 lbs / 331 lbs

G18XAS01: 12.0 Inches

G18XAS02: 16.0 Inches

G18XAS03: 18.0 Inches

G18XAS04: 24.0 Inches

G18XAS06: 32.0 Inches

G18XAS07: 36.0 Inches

G18XAS08: 42.0 Inches

G18XAS09: 48.0 Inches

Key Performance & Construction Features

  • Architectural Flangeless Peg Mounting System: Utilizes 32 mm cylindrical mounting pegs that eliminate wide wall flanges, locking the rail body flush against the wall surface via internal set keys.
  • 331-Pound Vertical & Horizontal Static Capacity: Rigid structural engineering tested under direct vertical and lateral static loads across all available lengths.
  • Heavy-Gauge AISI 304 Stainless Steel Construction: Fabricated from 304-grade stainless steel with straight end contours, delivering 100% rust-proof durability in high-humidity commercial restrooms.
  • Mono-Color & Metallic Finish Customization: Available in unified all-white (WE), all-black (DM), satin stainless steel (N1), or polished stainless steel (N2) configurations where end caps and mounting pegs match the rail body finish.
  • 1.25" Ergonomic Outer Diameter: Standardized 32 mm tubular profile satisfies federal ADA guidelines for tactile grip clearance.
  • European Custom Production: Precision-crafted in Italy to order for specialized architectural specifications.

Regulatory Compliance & Installation Notes

To ensure full ADA and building code compliance:

  • ADA Compliance: When mounted securely into solid wood studs or structural wall blocking at the correct height, this flangeless straight grab bar meets federal ADA specifications for accessible support rails.
  • Structural Anchoring Requirement: Both cylindrical mounting pegs must be anchored directly into solid wood studs or structural wall blocking capable of supporting the rated 331-pound vertical static load.
  • Lead Time Notice: As a specialized Italian import, custom color selections may require extended order fulfillment processing times.
