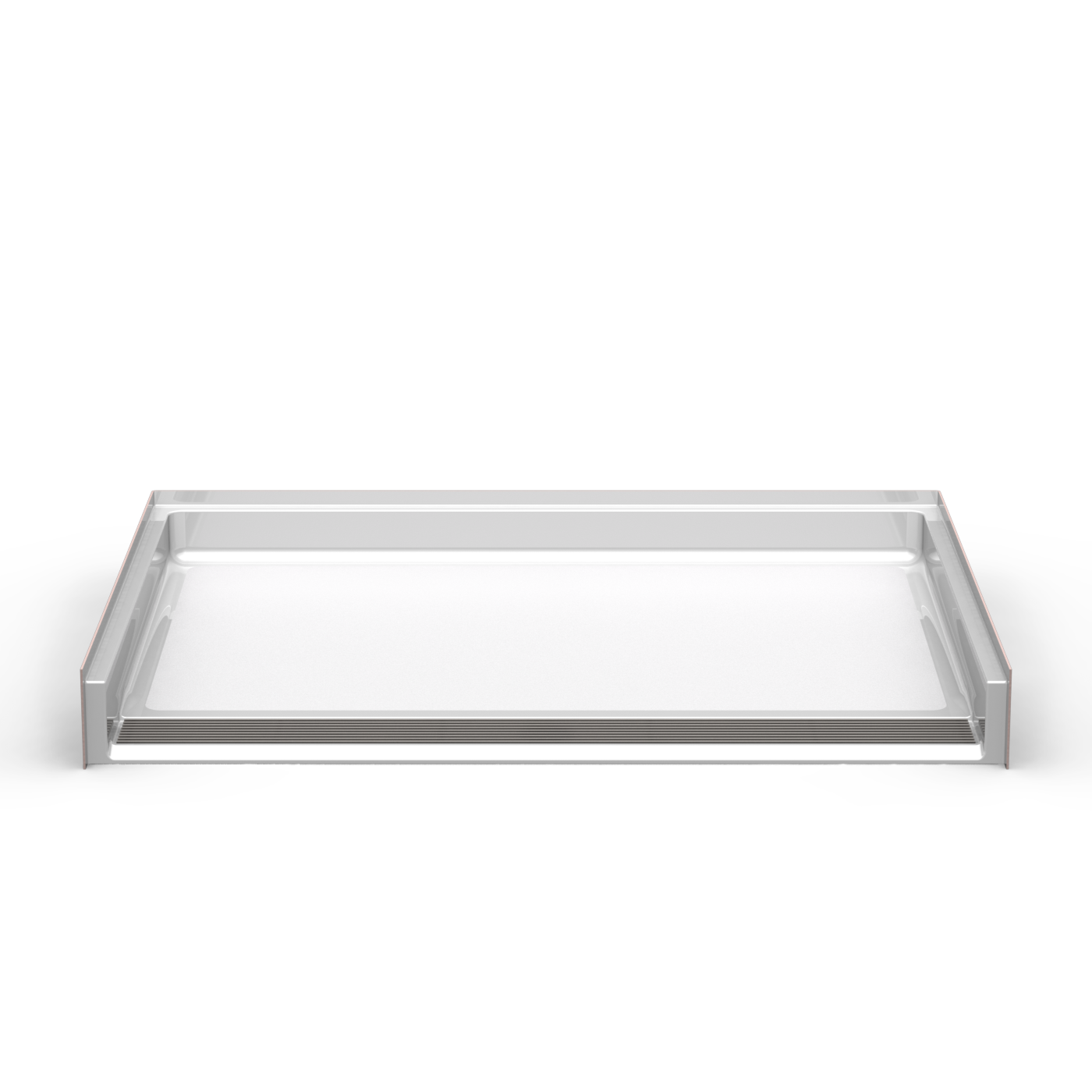

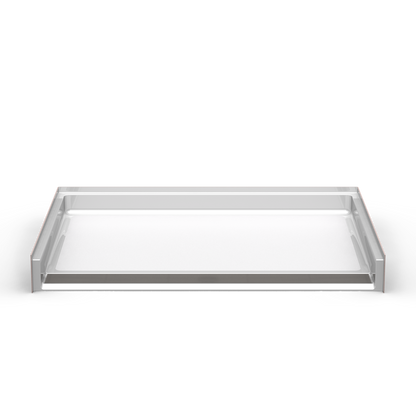

51x39 Barrier Free Shower Pan P25139B75FTB.V3 (Front Trench Drain)

The P25139B75FTB.V3 is a professional-grade, single-piece sanitary shower base engineered specifically for barrier-free accessibility. Manufactured from high-density, gelcoat-reinforced fiberglass, this shower pan features a pre-leveled, self-supporting base and an integrated front trench drain configuration. Designed for heavy-duty commercial health facilities, retirement communities, and residential accessible retrofits, it eliminates the need for traditional mortar mud-setting while maintaining absolute structural stability under load.

*This product package includes the compatible standard drain assembly and the protective stainless steel trench grate.

Technical Specifications

Customizable Entry Profiles & Features

1. Entry Threshold Height

Available in six distinct configurations to accommodate specific flooring profiles and roll-in transition requirements:

• 0.75 Inch: Barrier-free low-profile entry transition.
• 1.00 Inch: Low-profile entry transition.
• 1.25 Inches: Low-profile entry transition.
• 1.50 Inches: High-profile standard water containment barrier.
• 1.75 Inches: High-profile standard water containment barrier.
• 2.00 Inches: Standard deep water-containment threshold.

2. Threshold Bevel Type

• Beveled (Tapered Ramp): Engineered with a steady gradient to facilitate smooth wheelchair roll-in and roll-out transitions.

Regulatory & Building Code Compliance

This plumbing fixture is manufactured to comply with strict public and residential accessibility standards:

• ANSI Z124.2 Compliance: Certified compliant for structural load, wear-resistance, and non-porous gelcoat material standards for plastic shower bases.
• ADA Accessibility Guidelines: Meets federal physical standards for accessible threshold clearances and grab bar structural reinforcement when installed in accordance with local building codes.
• ANSI A117.1 A & B Guidelines: Designed to meet accessibility requirements for accessible and usable buildings and facilities.
• Uniform Plumbing Codes: Fully approved under the International Plumbing Code (IPC) and Uniform Plumbing Code (UPC).
• Slip-Resistant Textured Floor: Features a built-in micro-textured surface to maximize traction in wet conditions, complying with standard plumbing safety coefficient requirements.
• Sanitary Surface Integrity: The stain-resistant gelcoat finish prevents bacterial nesting and withstands rigorous commercial sanitation protocols.

Package Contents & Installation

• One (1) P25139B75FTB.V3 single-piece reinforced fiberglass shower pan.

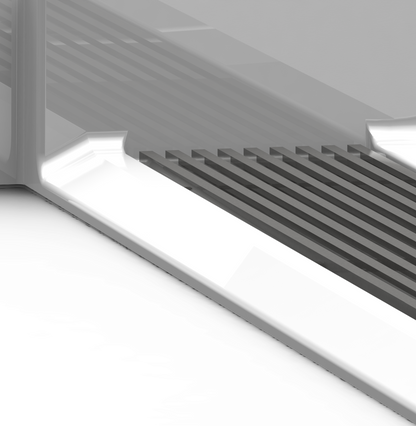

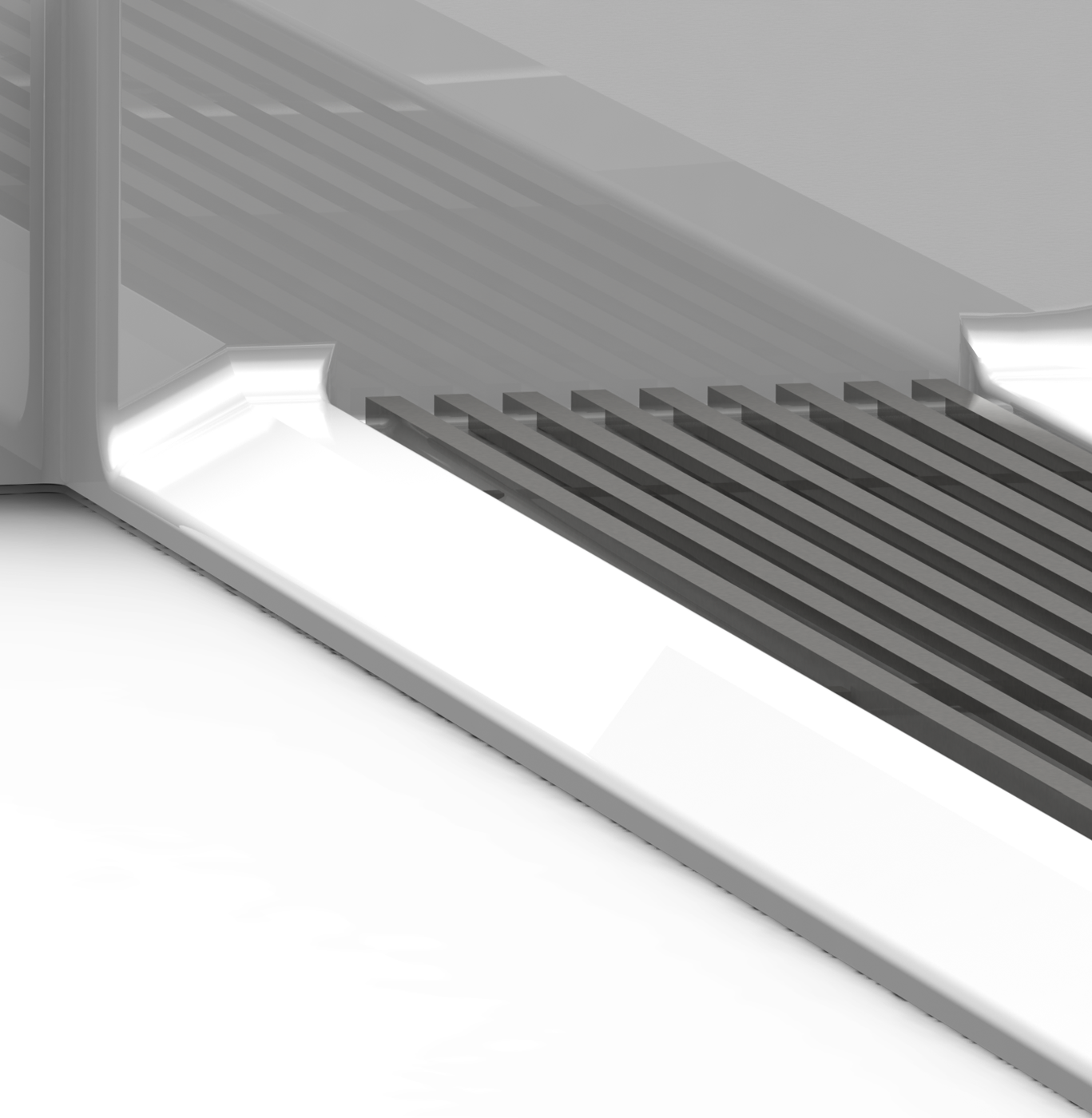

• One (1) integrated front trench drain standard assembly and matching grate.
• One (1) commercial-grade adhesive installation kit (supplied for threshold options 1.25 inches or lower).
• One (1) printed step-by-step manufacturer installation manual.

Commercial Contract & Bulk Ordering

For high-volume commercial development projects, healthcare facilities, and dealer networks seeking bulk pan order pricing, please contact our contract sales desk directly at Admin@UniversalAide.com.

Shipping, Stock Status, and Returns

In accordance with our commitment to consumer transparency and Google Merchant Center compliance:

• Availability: In Stock and ready to ship. Processing lead time is 5 business days.
• Shipping Costs: Flat-rate or real-time carrier shipping options are displayed directly at checkout before payment is entered.
• Refund & Return Policy: Covered under our 30-Day Policy. If the product is lost in transit, arrives damaged, or is the incorrect SKU, contact us at Admin@UniversalAide.com for an immediate exchange or full refund.

Spec Sheet:

• p25139b75ftb.v3.pdf

Installation Guide:

• front_trench_shower_7x18_boxout.pdf
• front_trench_shower_7x18_boxout_spanish.pdf

Custom & Made-to-Order Items Policy:

Customers are fully responsible for confirming accurate measurements using the provided product specification sheets prior to placing an order. Items manufactured according to the selected order specifications cannot be returned, exchanged, or refunded due to customer measurement errors or site mismatch. Submitting an order confirms your acceptance of these dimensions. This item is a NON-RETURNABLE hygiene-related product.
