Ponte Giulio Bariatric L-Shaped Folding Shower Seat with Legs (31.5" x 22.75") - G55JDS31 (1,000 lb Capacity, ADA Compliant)

Ponte Giulio Bariatric L-Shaped Folding Shower Seat with Legs (31.5" x 22.75") - G55JDS31 (1,000 lb Capacity, ADA Compliant)

SKU: G55JDS31

Price: $1,075.60
List Price:
Price: $1,075.60
10% off | Coupon Code: AIDE | Ends:
View Cart

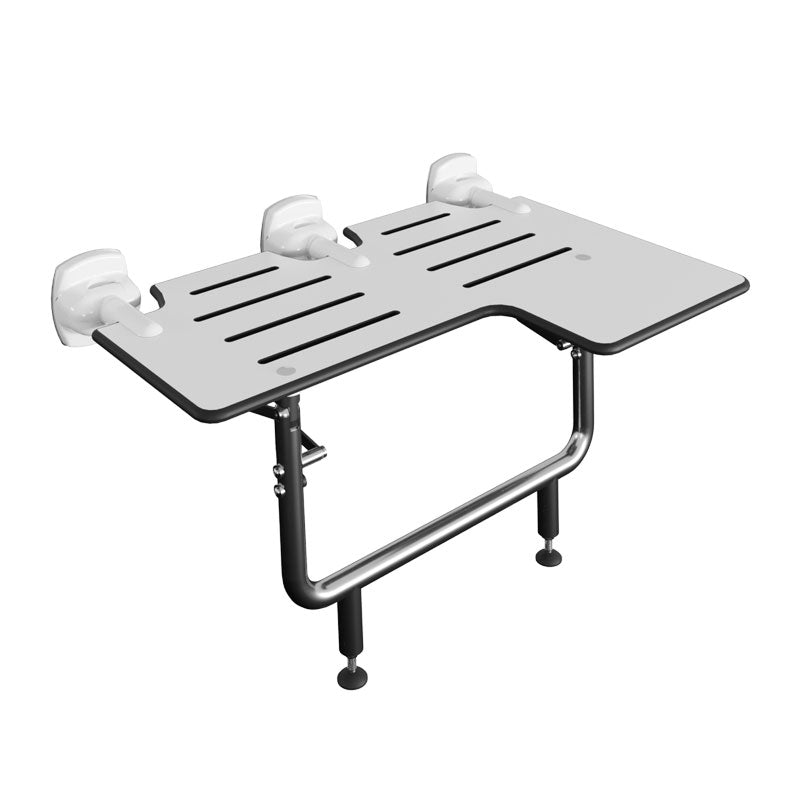

The Ponte Giulio Bariatric L-Shaped Commercial Shower Seat with Support Legs (Model SKU: G55JDS31) is a heavy-duty, wall-mounted bather seating solution engineered specifically for bariatric care suites, healthcare facilities, commercial ADA restrooms, and high-capacity residential accessible retrofits. Built to support a 1,000-pound vertical load capacity, this seat features a 100% AISI 304 satin stainless steel frame with three wall mounting points and freestanding height-adjustable legs. The 16 mm thick High-Pressure Laminate (HPL) seat top features a fully reversible design, allowing installation with the deeper seat section positioned on either the left or right side of the shower alcove.

Technical Specifications

System Attribute Specification Parameter Standard & Material Compliance
Model SKU G55JDS31 Ponte Giulio Tracked Product SKU

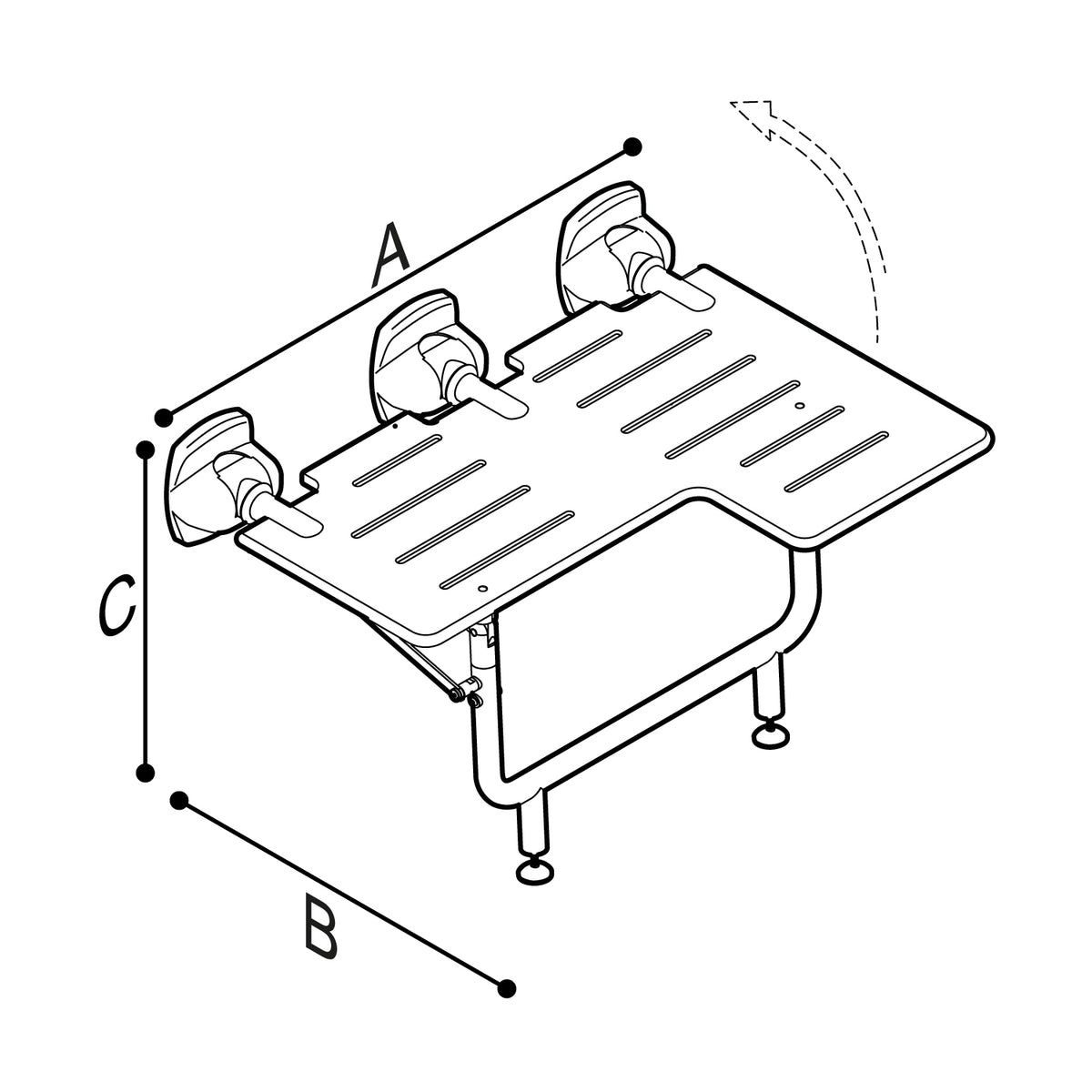

Overall Seat Dimensions (A x B x C) 31.5" Width x 22.75" Depth x 19.0" Height Rough-In Construction Envelope
Seat Top Material & Thickness 16 mm High-Pressure Laminate (HPL) Non-Porous, Chemical-Resistant Matte Finish
Seat Top Color Finish White with Speckles (W8) Stain-Resistant Sanitary Pattern
Structural Frame Material AISI 304 Stainless Steel (Satin Finish - N1) 100% Corrosion-Resistant Sanitary Alloy
Support Legs Freestanding Height-Adjustable Legs Dual Floor-Bearing Vertical Load Posts
Flange Escutcheon Covers Concealed Polyamide Flange Covers Snap-On Fastener Protection
Vertical Load Capacity 1,000 lbs (453.6 kg Vertical Rating) Bariatric Class (Exceeds ADA 250-lb Standard)
Net Weight 31.97 lbs (14.5 kg) Commercial Heavy-Duty Construction
Orientation Fully Reversible (Left or Right Installation) Adaptable to Left-Hand or Right-Hand Alcoves
Warranty Lifetime Manufacturer Warranty Manufacturer Backed and Certified
Regulatory Standard ADA / ANSI A117.1 Compliant Federal Accessibility Standard Certified

Key Performance & Construction Features

  • 1,000-Pound Bariatric Load Rating: Engineered for extreme structural stability using a combination of 3 wall mounting points and dual freestanding floor legs.
  • Reversible L-Shaped Design: The modular HPL seat top can be mounted with the deeper 22.75-inch transfer section on either the left or right side to match specific plumbing and entry requirements.
  • 16mm High-Pressure Laminate (HPL) Top: The non-porous, warm-touch HPL surface in White with Speckles (W8) resists scratching, impact, mold, and chemical cleaning agents.
  • AISI 304 Stainless Steel Frame: Constructed entirely from satin-finished 304 stainless steel to ensure zero rust or corrosion in continuous wet-room environments.
  • Adjustable Freestanding Legs: Includes height-adjustable floor feet to ensure precise levelling against sloped shower floors.
  • Concealed Polyamide Flange Covers: Wall anchorage plates are protected by snap-on polyamide escutcheon covers, hiding fasteners and preventing water ingress.
  • Wood Stud Installation Package: Supplied complete with heavy-duty structural mounting hardware for solid wood stud or wall blocking installation.

Regulatory Compliance & Installation Notes

To ensure full ADA and bariatric building code compliance:

  • ADA Compliance: When installed into solid wood studs or approved structural wall blocking in accordance with manufacturer instructions, this shower seat meets federal ADA standards for bariatric clearance and structural load capacity.
  • Structural Anchoring Requirement: Bariatric shower seats transfer extreme forces. All three wall mounting flanges must be anchored directly into solid wood studs or reinforced wall blocking capable of supporting the rated 1,000-pound load rating.
