Ponte Giulio Bariatric 12" x 32" L-Shaped Antimicrobial Vinyl Coated Grab Bar - G02JB Series (1,000+ lb Capacity, ADA Compliant)
Ponte Giulio Bariatric 12" x 32" L-Shaped Antimicrobial Vinyl Coated Grab Bar - G02JB Series (1,000+ lb Capacity, ADA Compliant)
SKU: G02JBL21
- Regular price
- Price: $341.40
- Regular price
- List Price:
- Sale price
- Price: $341.40
- Unit price
- per
10% off | Coupon Code: AIDE | Ends:
Couldn't load pickup availability
PRODUCT DESCRIPTION
The Ponte Giulio Bariatric 12" x 32" L-Shaped Antimicrobial Vinyl Coated Grab Bar (Series SKUs: G02JBL21 & G02JBR21) is a commercial-grade, heavy-duty wall-mounted support rail engineered specifically for bariatric care suites, healthcare facilities, public restrooms, and high-capacity ADA-compliant installations. Built to withstand extreme vertical static loads up to 1,102 lbs (1,000+ lb bariatric class rating), this two-wall angular rail combines a heavy-gauge galvanized structural steel pipe core with an extruded 3 mm thick warm-touch antimicrobial vinyl coating. Wall anchorage is achieved via four concealed 11-hole stainless steel flange plates, incorporating three mounting flanges along the 32-inch vertical member for maximum mid-span reinforcement.
Technical Specifications
| System Attribute | Specification Parameter | Standard & Material Compliance |
|---|---|---|
| Model SKUs | G02JBL21 (Left Orientation) / G02JBR21 (Right Orientation) | Ponte Giulio Tracked Product SKUs |
| Inter-Axis Dimensions (A1 x C1) | 12.0" Horizontal Width x 32.0" Vertical Height (305 x 813 mm) | L-Shaped Structural Anchorage Grid |
| Overall Envelope Dimensions (A x B x C) | 15.19" Width x 2.88" Projection x 35.13" Total Height | Rough-In Envelope (15-3/16" x 2-7/8" x 35-1/8") |
| Rail Outer Diameter | 1.25 Inches (32 mm) | ADA Standard Ergonomic Grip Clearance |
| Structural Core Material | Heavy-Gauge Zinc-Plated Galvanized Steel Pipe | Corrosion-Resistant Structural Core Assembly |
| Outer Finish & Thickness | 3 mm Extruded Warm-Touch Vinyl | Non-Porous White Finish (W1) |
| Hygiene Technology | BioCote® Silver Ion Antimicrobial Coating | Inhibits Bacterial Growth up to 99.9% |
| Wall Mounting Plates | 4 Concealed 11-Hole Stainless Steel Flanges | 3 Flanges Positioned on 32" Vertical Member |
| Escutcheon Covers | Concealed Polyamide Flange Covers | Protects Fasteners from Direct Moisture Exposure |
| Vertical Static Load Rating | 1,102 lbs (500 kg Vertical Static Capacity / 1,000+ lb Class) | Exceeds ADA 250-lb Structural Requirement |
| Net Tare Weight | 6.83 lbs (3.10 kg) | Solid Heavy-Duty Unit Construction |
| Included Hardware | Stainless Steel Fasteners Included | Supplied for Structural Wood Stud Mounting |
| Regulatory Standard | ADA / ANSI A117.1 Compliant (BIM / DWG Available) | Federal Accessibility Standard Certified |

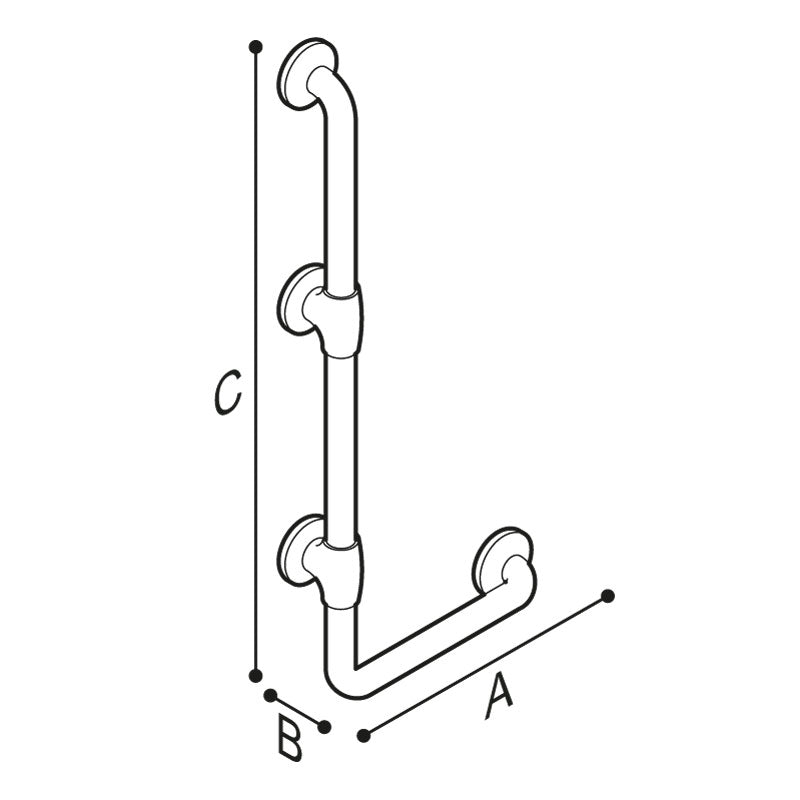

Bariatric 12"X32" Antimicrobial Vinyl Coated L-Shape Grab Bar, Left Orientation.

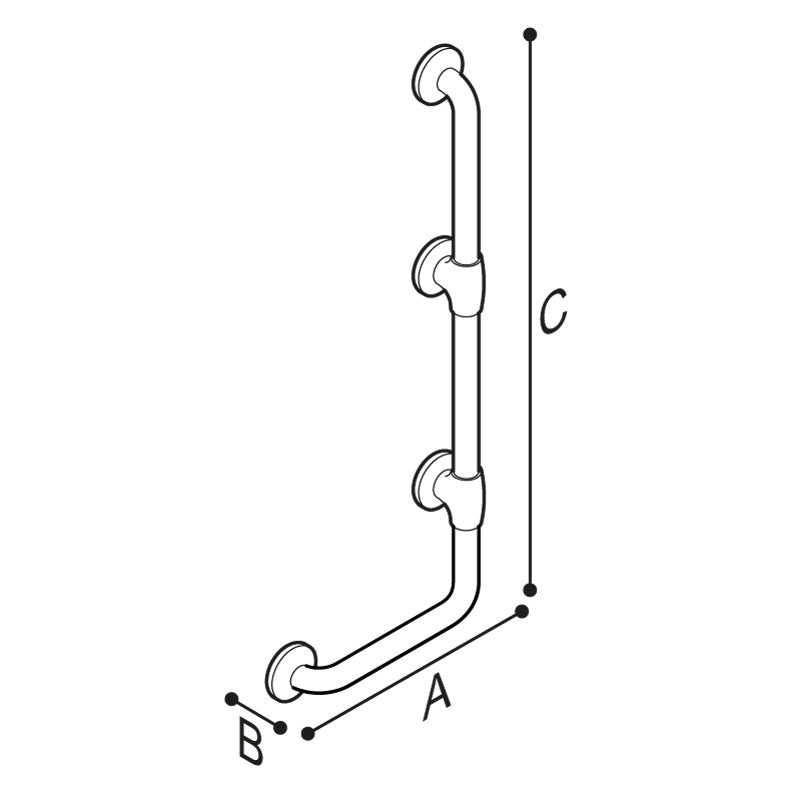

Bariatric 12"X32" Antimicrobial Vinyl Coated L-Shape Grab Bar, Right Orientation.
Key Performance & Construction Features
- 1,000+ Pound Bariatric Static Load Rating: Tested under direct downward vertical static load testing to 1,102 lbs (500 kg), offering a safety factor more than four times federal ADA baselines.
- Four 11-Hole Reinforced Mounting Flanges: Engineered with four 11-hole stainless steel anchorage plates—including three flanges spaced along the 32-inch vertical leg—to distribute extreme leverage forces into structural wall blocking.
- Biocompatible 3mm Vinyl Outer Coating: The 3 mm thick vinyl shell provides a non-porous, warm-touch surface with low thermal conductivity and a superior wet friction coefficient.
- BioCote® Silver Ion Antimicrobial Protection: Integrated directly into the vinyl during extrusion, BioCote® technology permanently inhibits the growth of bacteria, molds, and fungi by up to 99.9%.
- Reversible Field Mounting Capability: Available in factory Left (`G02JBL21`) or Right (`G02JBR21`) configurations, and engineered so the long 32-inch member can be installed vertically or horizontally depending on project architectural requirements.
- 1.25" Ergonomic Tubular Profile: Standardized 32 mm outer tubular diameter complies with federal ADA grip clearance guidelines.
- Wood Stud Fastening Package Included: Supplied complete with heavy-duty stainless steel mounting screws rated for direct installation into solid wood studs or structural wall blocking.
Regulatory Compliance & Installation Notes
To ensure full ADA and bariatric building code compliance:
- ADA Compliance: When mounted securely into solid wood studs or structural wall blocking at the correct height, this L-shaped grab bar meets federal ADA specifications for bariatric support rails.
- Structural Anchoring Requirement: Bariatric support rails transfer extreme leverage forces. All four wall mounting flanges must be anchored directly into solid wood studs or 3/4" structural wall blocking capable of supporting the rated 1,000+ pound vertical static load.
