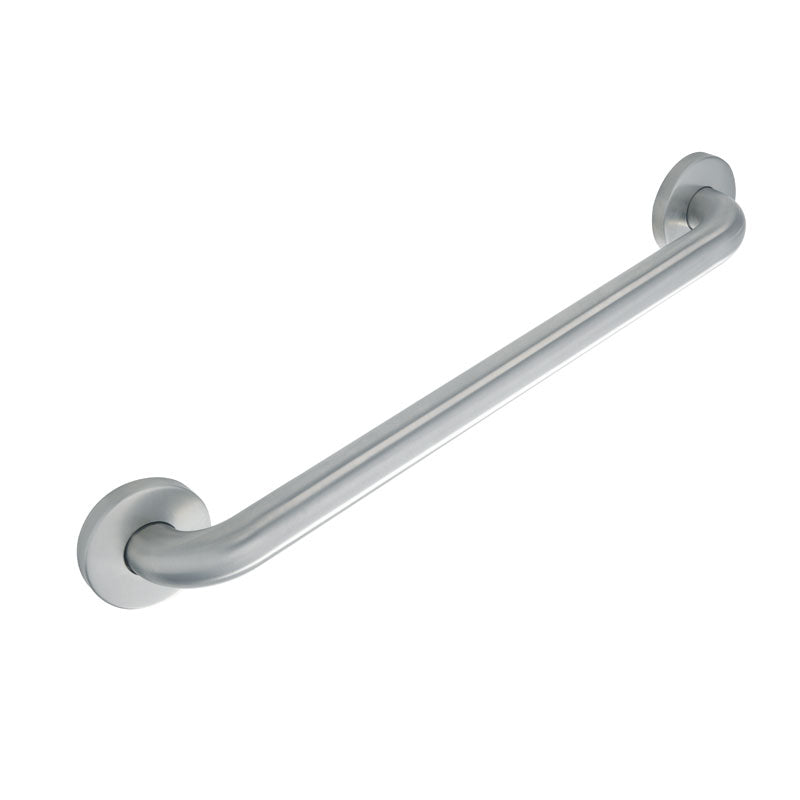

Ponte Giulio Stainless Steel Straight Grab Bar - G57JAS Series (450 lb Capacity, ADA Compliant)
Ponte Giulio Stainless Steel Straight Grab Bar - G57JAS Series (450 lb Capacity, ADA Compliant)
SKU: G57JAS01.N2
- Regular price
- Price: $26.80
- Regular price
- List Price:
- Sale price
- Price: $26.80
- Unit price
- per
10% off | Coupon Code: AIDE | Ends:
Couldn't load pickup availability
PRODUCT DESCRIPTION
The Ponte Giulio Stainless Steel Straight Grab Bar Series (Model SKUs: G57JAS01 through G57JAS09) is a commercial-grade wall-mounted safety rail system engineered specifically for universal design developments, healthcare facilities, public restrooms, and ADA-compliant installations. Manufactured from 1.2 mm thick (18-gauge) AISI 304 stainless steel with a standard 1.25-inch outer diameter, this structural rail delivers exceptional corrosion resistance in wet environments. Wall attachment plates feature concealed escutcheon flange covers that shield mounting hardware and structural fasteners from direct water exposure.
Technical Specifications & Sizing Matrix
| Model SKU | Inter-Axis Spacing (A1) | Overall Envelope Dimensions (A x B x C) | Net Tare Weight | Vertical Static Load Rating |
|---|---|---|---|---|
| G57JAS01 | 12.0 Inches (305 mm) | 15.06" Length x 2.75" Projection x 3.06" Height | 1.01 lbs (0.46 kg) | 450 lbs (204.5 kg) |
| G57JAS02 | 16.0 Inches (406 mm) | 19.06" Length x 2.75" Projection x 3.06" Height | 1.26 lbs (0.57 kg) | 450 lbs (204.5 kg) |
| G57JAS03 | 18.0 Inches (457 mm) | 21.06" Length x 2.75" Projection x 3.06" Height | 1.37 lbs (0.62 kg) | 450 lbs (204.5 kg) |
| G57JAS04 | 24.0 Inches (610 mm) | 27.06" Length x 2.75" Projection x 3.06" Height | 1.75 lbs (0.79 kg) | 450 lbs (204.5 kg) |
| G57JAS05 | 30.0 Inches (762 mm) | 33.06" Length x 2.75" Projection x 3.06" Height | 2.20 lbs (1.00 kg) | 450 lbs (204.5 kg) |
| G57JAS06 | 32.0 Inches (813 mm) | 35.06" Length x 2.75" Projection x 3.06" Height | 2.25 lbs (1.02 kg) | 450 lbs (204.5 kg) |
| G57JAS07 | 36.0 Inches (914 mm) | 39.06" Length x 2.75" Projection x 3.06" Height | 2.54 lbs (1.15 kg) | 450 lbs (204.5 kg) |
| G57JAS08 | 42.0 Inches (1067 mm) | 45.06" Length x 2.75" Projection x 3.06" Height | 2.91 lbs (1.32 kg) | 450 lbs (204.5 kg) |
| G57JAS09 | 48.0 Inches (1219 mm) | 51.13" Length x 2.75" Projection x 3.13" Height | 3.31 lbs (1.50 kg) | 450 lbs (204.5 kg) |
12” Stainless Steel Grab Bar
16” Stainless Steel Grab Bar
18” Stainless Steel Grab Bar
24” Stainless Steel Grab Bar
30” Stainless Steel Grab Bar
32” Stainless Steel Grab Bar
36” Stainless Steel Grab Bar
42” Stainless Steel Grab Bar
48” Stainless Steel Grab Bar
Key Performance & Construction Features
- Heavy-Gauge AISI 304 Stainless Steel Construction: Fabricated from 18-gauge (1.2 mm thick) 304-grade stainless steel to ensure 100% rust-proof performance in high-humidity commercial restrooms.
- 450-Pound Vertical Static Load Rating: Engineered for structural rigidity across all available lengths, exceeding federal ADA load capacity requirements by 80%.
- Concealed Flange Escutcheon Covers: Mounting base plates feature snap-on stainless steel escutcheon covers that conceal installation screws and shield fasteners from direct water exposure.
- 1.25" Ergonomic Outer Diameter: Standardized 32 mm outer tubular profile satisfies federal ADA guidelines for tactile grip clearance.
- Architectural Finish Customization: Available in Satin Brushed Stainless Steel (N1 - Best Seller), Bright Polished Stainless Steel (N2), or Matte Black (DM) to coordinate with modern fixture hardware.
- Bulk Case Ordering Options: Standard case packaging available in quantities of 20 units (for 12", 16", 18", 24", and 30" lengths) or 10 units (for 32", 36", 42", and 48" lengths) for large commercial projects.
- Wood Stud Fastening Package Included: Supplied complete with heavy-duty stainless steel mounting fasteners for direct installation into structural wood studs or wall blocking.
Regulatory Compliance & Installation Notes
To ensure full ADA and building code compliance:
- ADA Compliance: When mounted securely into solid wood studs or structural wall blocking at the correct height, this straight grab bar meets federal ADA specifications for accessible support rails.
- Structural Anchoring Requirement: Both wall mounting flanges must be anchored directly into solid wood studs or structural wall blocking capable of supporting the rated 450-pound vertical static load.
