Ponte Giulio Prestigio Plus 65" Vertical Straight Grab Bar - G18UAS52 (265 lb Capacity, ADA Compliant)

The Ponte Giulio Prestigio Plus 65" Vertical Straight Grab Bar (Model SKU: G18UAS52) is a commercial-grade, floor-to-ceiling style wall-mounted support rail engineered specifically for vertical installation in luxury shower enclosures, universal design developments, healthcare facilities, and ADA-compliant restrooms. Manufactured from 1.25-inch outer diameter (ø 32 mm) AISI 304 stainless steel, this 64.94-inch inter-axis rail (68.88-inch overall end-to-end profile) features an architectural flangeless mounting system anchored via cylindrical end pegs finished in polished chrome. Each peg mount locks securely into place using a concealed set key, delivering a clean floor-to-ceiling vertical gripping plane without traditional mounting escutcheon plates.

Technical Specifications

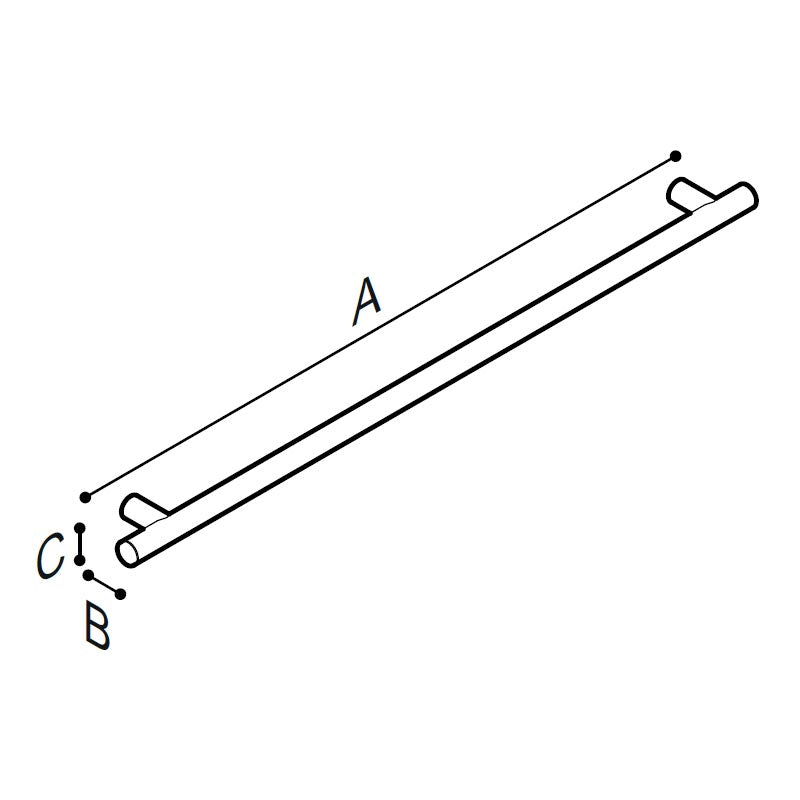

Note: This 65-inch model is engineered exclusively for vertical wall installation. Due to the placement of the cylindrical peg mounts, the overall end-to-end rail length measures 68.88 inches, extending approximately 4 inches beyond the 64.94-inch inter-axis mounting dimension.

• Technical data sheet
• Extended technical data sheet

Key Performance & Construction Features

• Extended 65" Vertical Gripping Plane: Provides a continuous vertical rail measuring 64.94 inches center-to-center (68.88 inches end-to-end), offering full-height hand placement across standing shower enclosures.
• Architectural Flangeless Peg Mounting System: Features sleek cylindrical peg mounts in polished chrome that eliminate wide mounting flanges, securing the rail ends cleanly via internal set keys.
• 265-Pound Vertical Static Load Rating: Engineered for structural rigidity when mounted vertically into solid wood studs or wall blocking, meeting federal ADA guidelines for accessible support rails.
• Heavy-Gauge AISI 304 Stainless Steel Construction: Fabricated from 304-grade stainless steel with polished ends and peg mounts, delivering 100% rust-proof performance in continuous wet environments.
• Multi-Finish Architectural Customization: Rail body available in painted white (W2), satin stainless steel (N1), polished stainless steel (N2), matte black (DM), dark gray (D8), or accent colors, contrasting with polished chrome (C1) mounting pegs.
• 1.25" Ergonomic Outer Diameter: Standardized 32 mm outer tubular profile satisfies federal ADA guidelines for tactile grip clearance.
• Modular HUG Collection Compatibility: Compatible with clip-on HUG collection accessories, including the HUG Wire Storage Basket (Model SKU: F47ANS01).

Regulatory Compliance & Installation Notes

To ensure full ADA and building code compliance:

• ADA Compliance: When mounted securely into solid wood studs or structural wall blocking in a vertical orientation at the correct height, this straight grab bar meets federal ADA specifications for accessible support rails.
• Vertical Mounting Orientation: This 65-inch fixture is engineered strictly for vertical mounting orientation. Do not install horizontally.
• Structural Anchoring Requirement: Both cylindrical peg mounts must be anchored directly into solid wood studs or structural wall blocking capable of supporting the rated 265-pound vertical static load.

Shipping, Stock Status, and Returns

In accordance with our commitment to consumer transparency and Google Merchant Center compliance:

• Availability: In Stock and ready to ship. Processing lead time is 1–2 business days.
• Shipping Costs: Calculated in real-time during checkout based on delivery destination and total order weight. No hidden handling fees.
• Refund & Return Policy: Covered under our 30-Day Policy. If the product arrives damaged, is lost in transit, or is the incorrect SKU, contact customer support at support@universalaide.com for an immediate exchange or full refund.
