Ponte Giulio Left-Handed Bariatric L-Shaped Folding HPL Shower Seat with Legs - G02JDL31 (1,000 lb Capacity, ADA Compliant)

Ponte Giulio Left-Handed Bariatric L-Shaped Folding HPL Shower Seat with Legs - G02JDL31 (1,000 lb Capacity, ADA Compliant)

SKU: G02JDL31

Price: $1,565.20
List Price:
Price: $1,565.20
10% off | Coupon Code: AIDE | Ends:
View Cart

The Ponte Giulio Bariatric L-Shaped Folding HPL Shower Seat with Support Legs (Model SKU: G02JDL31) is a commercial-grade, heavy-duty wall-mounted bather seating solution engineered specifically for bariatric care suites, healthcare facilities, commercial ADA restrooms, and accessible residential retrofits. Built to support an extraordinary 1,000-pound vertical load capacity, this folding bench combines a 16 mm thick High Pressure Laminate (HPL / Phenolic) seat surface with a 100% AISI 304 stainless steel frame, concealed polyamide mounting flange covers, and dual freestanding height-adjustable legs. The seat folds vertically flat against the wall to a narrow profile of just 5.125 inches (130 mm) deep when stowed, optimizing standing room inside the shower enclosure.

Technical Specifications

System Attribute Specification Parameter Standard & Material Compliance
Model SKU G02JDL31 Ponte Giulio Tracked Product SKU
Orientation Options Left-Hand (G02JDL31-L) or Right-Hand (G02JDL31-R) Select Orientation Based on Alcove Layout

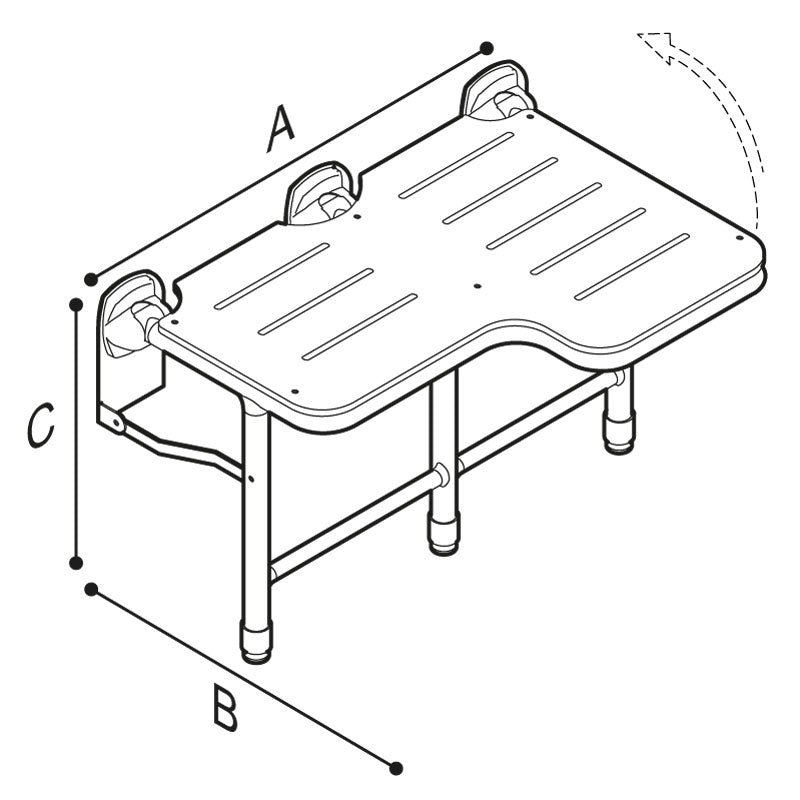

Overall Dimensions (A x B x C) 34.63" Width x 22.63" Depth x 19.19" Height Rough-In Construction Envelope (34-5/8" x 22-5/8" x 19-3/16")
Seat Surface Dimensions 31.5" Width x 22.5" / 15.75" Depth x 17.75" Height Standard ADA L-Shaped Bariatric Footprint
Stowed Folded Depth 5.125 Inches (5 1/8" / 130 mm) Slim Vertical Wall-Fold Profile
Seat Top Material & Thickness 16 mm High Pressure Laminate (HPL) Non-Porous, Impact-Resistant Phenolic Top
Seat Top Color Finish White with Speckles (W8) Stain-Resistant Sanitary Surface Pattern
Structural Frame Material 100% AISI 304 Stainless Steel (White Cover - W1) Corrosion-Resistant Heavy-Duty Alloy
Support Legs Dual Freestanding Height-Adjustable Legs Floor-Bearing Load Distribution Posts
Flange Escutcheon Covers Concealed Polyamide Flange Covers Snap-On Fastener Protection
Vertical Load Capacity 1,000 lbs (453.6 kg Vertical Rating) Bariatric Class (Exceeds ADA 250-lb Standard)
Net Weight 35.49 lbs (16.1 kg) Solid Heavy-Duty Commercial Unit
Included Hardware Stainless Steel Fasteners Included Supplied for Structural Wood Stud Mounting
Warranty Lifetime Manufacturer Warranty Manufacturer Backed and Certified
Regulatory Standard ADA / ANSI A117.1 Compliant Federal Accessibility Standard Certified

Key Performance & Construction Features

  • 1,000-Pound Bariatric Load Rating: Engineered for extreme structural stability using a combination of reinforced wall mounting flanges and dual freestanding floor-bearing legs.
  • Space-Saving 5.125" Folded Profile: The double-folding leg and seat mechanism folds upward flat against the wall, projecting just 5.125 inches to maximize standing space in multi-user showers.
  • 16mm High-Pressure Laminate (HPL) Top: The non-porous, warm-touch phenolic surface in White with Speckles (W8) resists scratching, impact, mold, and chemical sanitation agents.
  • 100% Stainless Steel Structural Frame: Fabricated entirely from 304-grade stainless steel with polished white polyamide flange covers to ensure zero rust or corrosion in continuous wet environments.
  • Adjustable Freestanding Legs: Integrated height-adjustable floor feet ensure precise levelling against sloped shower floors.
  • Wood Stud Mounting Package Included: Supplied complete with heavy-duty stainless steel mounting hardware for solid wood stud or structural wall blocking installation.

Regulatory Compliance & Installation Notes

To ensure full ADA and bariatric building code compliance:

  • ADA Compliance: When mounted securely into solid wood studs or approved structural wall blocking at the correct height, this bariatric shower seat meets federal ADA specifications for L-shaped transfer shower compartments and structural load capacity.
  • Structural Anchoring Requirement: Bariatric shower seats transfer extreme leverage forces. All wall mounting flanges must be anchored directly into solid wood studs or structural wall blocking capable of supporting the rated 1,000-pound vertical load.
