Ponte Giulio 32" x 33" Left-Handed Stainless Steel 90° Wall-to-Floor Grab Bar with Outrigger - G55JCL38 (331 lb Capacity, ADA Compliant)
Ponte Giulio 32" x 33" Left-Handed Stainless Steel 90° Wall-to-Floor Grab Bar with Outrigger - G55JCL38 (331 lb Capacity, ADA Compliant)
SKU: G55JCL38
- Regular price
- Price: $107.20
- Regular price
- List Price:
- Sale price
- Price: $107.20
- Unit price
- per
10% off | Coupon Code: AIDE | Ends:
Couldn't load pickup availability
PRODUCT DESCRIPTION
The Ponte Giulio Stainless Steel 90° Wall-To-Floor Grab Bar with Outrigger (Series SKUs: G55JCL38 & G55JCR38) is a commercial-grade, multi-surface anchored support rail system engineered specifically for universal design developments, commercial restrooms, healthcare facilities, and ADA-compliant installations. Manufactured from 1.2 mm thick (18-gauge) AISI 304 satin-brushed stainless steel with a standard 1.25-inch outer diameter, this 32-inch wide by 33-inch high rail incorporates a 90-degree wall-to-floor primary chassis complemented by a secondary 8-inch lateral outrigger support arm. Concealed stainless steel mounting flanges shield structural fasteners from moisture exposure while providing rigid dual-axis anchorage.
Technical Specifications
| System Attribute | Specification Parameter | Standard & Material Compliance |
|---|---|---|
| Model SKUs | G55JCL38 (Left Orientation) / G55JCR38 (Right Orientation) | Ponte Giulio Tracked Product SKUs |

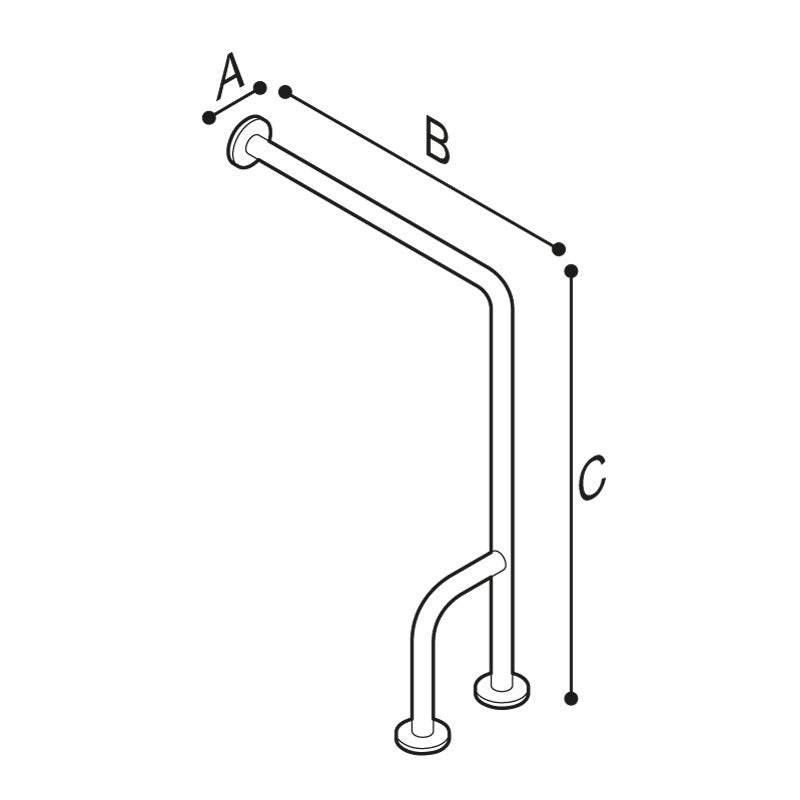

| Overall Envelope Dimensions (A x B x C) | 8.06" Depth x 31.50" Width x 34.50" Height | Rough-In Envelope (8-1/16" x 31-1/2" x 34-1/2") |
| Inter-Axis Dimensions (A1) | 5.0 Inches (Outrigger Offset Spacing) | Primary Anchorage Center-on-Center Grid |
| Nominal Envelope Profile | 32.0" Width x 33.0" Height Profile | Standard Architectural Layout Footprint |
| Lateral Outrigger Offset | 8.0 Inches Lateral Projection from Main Support | Specified Factory Left or Right Orientation |
| Rail Outer Diameter | 1.25 Inches (32 mm) | ADA Standard Ergonomic Grip Clearance |
| Wall Thickness & Metallurgy | 1.2 mm Thickness (18 Gauge) AISI 304 Stainless Steel | Non-Rusting Sanitary Structural Alloy (Satin - N1) |
| Mounting Flanges | Concealed Stainless Steel Flange Plates | Conceals Fasteners from Water Exposure |
| Static Load Ratings | 331 lbs Vertical Capacity / 88 lbs Horizontal Capacity | Exceeds ADA 250-lb Structural Requirement |
| Net Tare Weight | 5.84 lbs (2.65 kg) | Solid Commercial Unit Construction |
| Included Hardware | Stainless Steel Fasteners Included | Supplied for Structural Wood Stud Installation |
| Regulatory Standard | ADA / ANSI A117.1 Compliant | Federal Accessibility Standard Certified |
Key Performance & Construction Features
- Dual Wall-to-Floor Structural Anchorage: Transfers vertical and lateral force vectors simultaneously into the wall stud framing and solid floor subfloor for rigid multi-axis stability.
- Factory Specified Left or Right Outrigger Arm: Available in precise Left-Hand (`G55JCL38`) or Right-Hand (`G55JCR38`) orientations, extending the secondary 8-inch outrigger arm to match specific room layouts.
- Heavy-Gauge AISI 304 Stainless Steel Construction: Fabricated from 18-gauge (1.2 mm thick) 304-grade stainless steel with a mechanical satin finish (N1) to deliver 100% rust-proof performance in high-humidity commercial and residential environments.
- 331-Pound Vertical Static Load Rating: Engineered for structural rigidity, meeting and exceeding federal ADA specifications for accessible support rails.
- 1.25" Ergonomic Outer Diameter: Standardized 32 mm outer tubular profile satisfies federal ADA guidelines for tactile grip clearance.
- Concealed Stainless Steel Flange Escutcheons: Mounting base plates are covered beneath clean escutcheon plates to protect structural fasteners from direct moisture exposure.
- Wood Stud Fastening Package Included: Supplied complete with heavy-duty stainless steel mounting fasteners for direct installation into structural wood studs or wall blocking.
Regulatory Compliance & Installation Notes
To ensure full ADA and building code compliance:
- ADA Compliance: When mounted securely into solid wood studs or structural wall blocking and anchored into a solid floor substrate at the correct height, this 90° support bar meets federal ADA specifications for accessible support rails.
- Structural Anchoring Requirement: Wall mounting flanges must be anchored directly into solid wood studs or structural wall blocking, and floor flanges must be anchored into solid subfloor material capable of supporting the rated 331-pound vertical static load.
