Ponte Giulio 110° Angled Stainless Steel Grab Bar - G55JAS15 (331 lb Capacity, ADA Compliant)
Ponte Giulio 110° Angled Stainless Steel Grab Bar - G55JAS15 (331 lb Capacity, ADA Compliant)
SKU: G55JAS15
- Regular price
- Price: $49.00
- Regular price
- List Price:
- Sale price
- Price: $49.00
- Unit price
- per
Couldn't load pickup availability
PRODUCT DESCRIPTION
The Ponte Giulio 110° Angled Stainless Steel Grab Bar (Model SKU: G55JAS15) is a commercial-grade, multi-axis wall-mounted support rail engineered specifically for universal design developments, healthcare facilities, public restrooms, and ADA-compliant installations. Manufactured from 1.2 mm thick (18-gauge) AISI 304 satin-brushed stainless steel with a standard 1.25-inch outer diameter, this structural rail features a 110-degree angled contour across a 12" x 12" nominal footprint. The angled geometry provides continuous gripping support along both horizontal and inclined planes for smooth movement transitions between seated and standing positions, while concealed flange plates protect mounting fasteners from moisture exposure.
Technical Specifications
| System Attribute | Specification Parameter | Standard & Material Compliance |
|---|---|---|
| Model SKU | G55JAS15 | Ponte Giulio Tracked Product SKU |
| Nominal Footprint Profile | 12" x 12" Angled Geometry (110° Arc Contour) | Standard Architectural Layout Footprint |

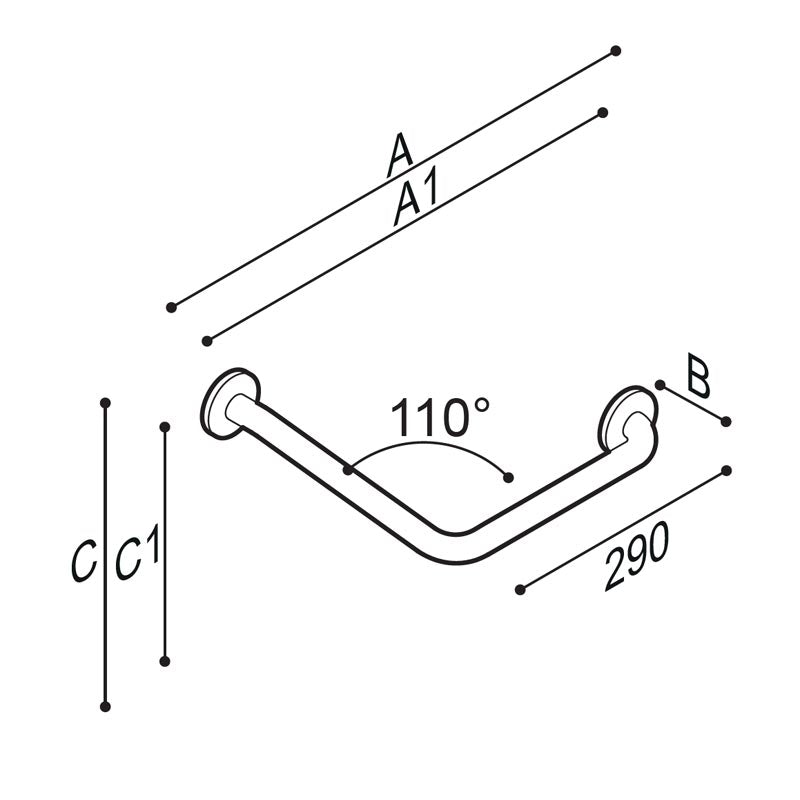

| Overall Envelope Dimensions (A x B x C) | 23.56" Length x 2.75" Projection x 11.56" Height | Rough-In Envelope (23-9/16" x 2-3/4" x 11-9/16") |
| Inter-Axis Dimensions (A1 x C1) | 20.50" Horizontal x 8.81" Vertical (488 x 364 mm) | Primary Anchorage Center-on-Center Grid |
| Rail Outer Diameter | 1.25 Inches (32 mm) | ADA Standard Ergonomic Grip Clearance |
| Wall Thickness & Metallurgy | 1.2 mm Thickness (18 Gauge) AISI 304 Stainless Steel | Non-Rusting Sanitary Structural Alloy |
| Surface Finish | Satin Brushed Stainless Steel (N1 Finish) | Corrosion-Resistant Mechanical Satin Finish |
| Wall Clearance Space | 1.5 Inches (Clear Space Between Wall & Rail) | Mandatory ADA Wall Clearance Requirement |
| Mounting Flanges | Concealed Stainless Steel Flange Plates | Conceals Fasteners from Water Exposure |
| Vertical Static Load Rating | 331 lbs (150 kg Vertical Static Load Capacity) | Exceeds ADA 250-lb Structural Requirement |
| Net Tare Weight | 1.90 lbs (0.86 kg) | Solid Commercial Unit Construction |
| Included Hardware | Stainless Steel Fasteners Included | Supplied for Structural Wood Stud Mounting |
| Regulatory Standard | ADA / ANSI A117.1 Compliant (BIM Models Available) | Federal Accessibility Standard Certified |
Key Performance & Construction Features
- 110° Ergonomic Angled Geometry: Provides multi-angle hand placement along both horizontal and inclined planes, facilitating smooth arm leverage during movement transitions.
- Heavy-Gauge AISI 304 Stainless Steel Construction: Fabricated from 18-gauge (1.2 mm thick) 304-grade stainless steel with a mechanical satin finish (N1), ensuring 100% rust-proof performance in high-humidity wet-room environments.
- 331-Pound Vertical Static Load Rating: Tested under direct vertical static load conditions to ensure structural rigidity, exceeding standard ADA 250-lb requirements.
- 1.25" Ergonomic Outer Diameter: Standardized 32 mm outer tubular profile satisfies federal ADA guidelines for tactile grip clearance.
- Concealed Stainless Steel Flange Escutcheons: Mounting base plates are covered beneath clean escutcheon plates without visible screws, protecting structural fasteners from direct moisture exposure.
- Wood Stud Fastening Package Included: Supplied complete with heavy-duty stainless steel mounting fasteners for direct installation into structural wood studs or wall blocking.
Regulatory Compliance & Installation Notes
To ensure full ADA and building code compliance:
- ADA Compliance: When mounted securely into solid wood studs or structural wall blocking at the correct height, this 110° angled grab bar meets federal ADA specifications for accessible support rails [cite: 4].
- Structural Anchoring Requirement: Wall mounting flanges must be anchored directly into solid wood studs or structural wall blocking capable of supporting the rated 331-pound vertical static load.
